Главная
›
Mercedes
›
TRUCK
›
1517 L
›
676.223
›
31 FRAME
›

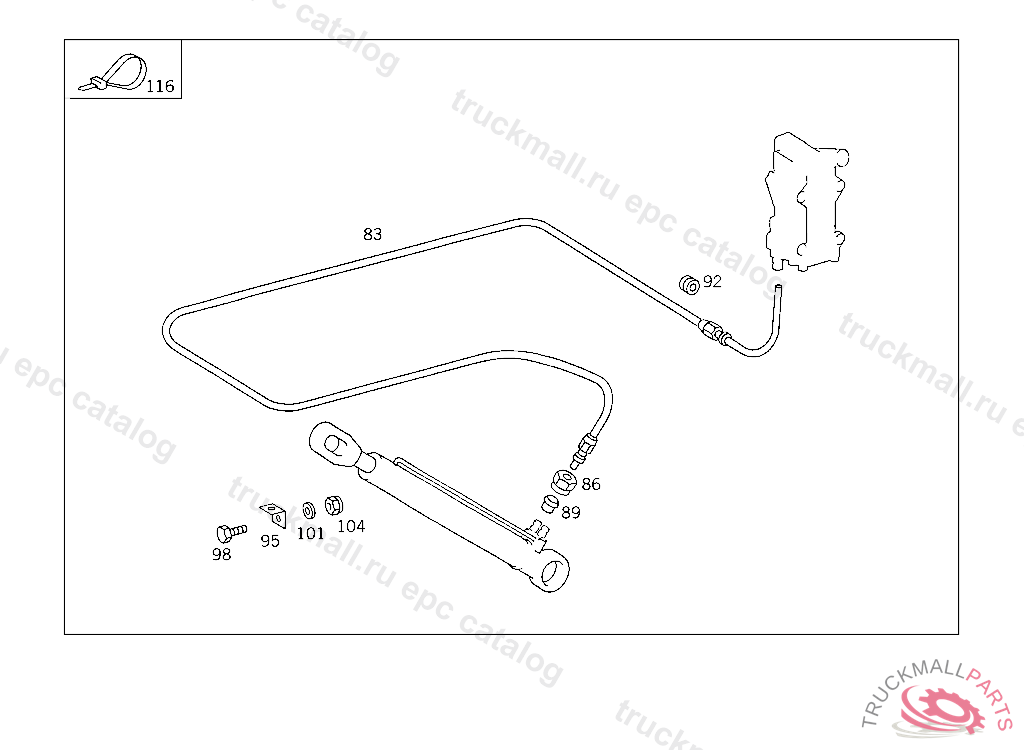

001 CAB REAR SUSPENSION,WITH RETAINING CABLE IL.3
Mercedes A0019901667 - Штуцер Mercedes-Benz
1517 L 676.223
31 FRAME - 001 CAB REAR SUSPENSION,WITH RETAINING CABLE IL.3
Поз.
Артикул
Описание
83
A6745530982
HOSE FROM HYDRAULIC LINE TO CYLINDER
83
A6735530082
HOSE FROM HYDRAULIC LINE TO CYLINDER
86
N915017006100
UNION NUT
89
A0019901667
SEAL CONE
89
N003861006007
GLAND , Replaced By: A0019901667
92
A3129970581
GROMMET BATTERY CABLE THRU PARTITION PANEL
92
A3129970581
GROMMET BATTERY CABLE THRU PARTITION PANEL
95
A3852670040
BRACKET SENSOR CABLE TO FRONT AXLE
98
N308676012012
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
98
N000961012052
SCREW , Replaced By: N308676012012
101
A6739901040
WASHER BRACKET TO FRAME
104
N910113012002
NUT SUPPORT TO SIDE MEMBER
116
A0019978490
LOOM TIE LINE MOUNTING
