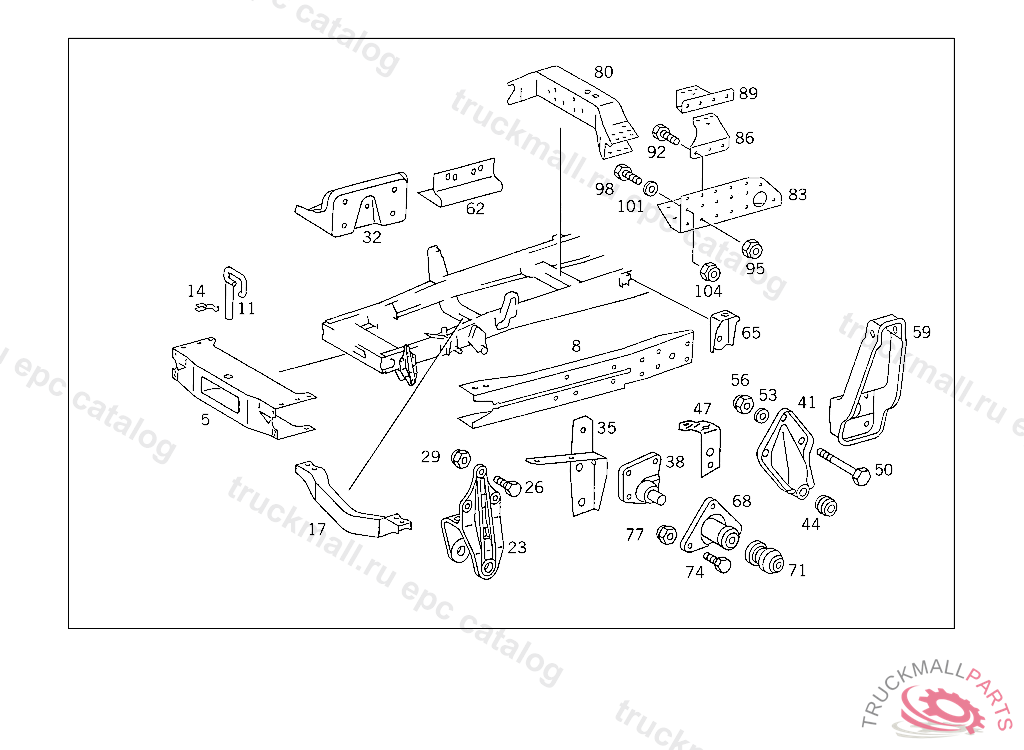

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
8
GUSSET PLATE , Replaced By: A6783100071
8
GUSSET PLATE , Replaced By: A6783100171
8
GUSSET PLATE FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
11
COUPLING PIN FOR COUPLING MOUTH
14
U-BOLT COUPLING PIN
17
ENGINE CROSS MEMBER FRONT
17
ENGINE CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 278970, Replaced By: A6753100126
17
ENGINE CROSS MEMBER , Replaced By: A6753100026, +004N000933010145
23
FRONT SPRING BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6753220501, +003A3959900501, +002A3589900414, +002N913004014005, +003N913004016005
23
FRONT SPRING BRACKET ,5 358487, Replaced By: A6753220401, +001A6753220450, +001A6753250350, +001N000960016242, +001N913004016004
23
FRONT SPRING BRACKET FRONT SPRING FRONT BRACKET
26
SCREW PLATE TO SIDE MEMBER
26
SCREWM 16X17X24X44
26
SCREWM 16X17X22X42
26
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
29
NUT , Replaced By: N910113014000
29
NUT , Replaced By: N910113016001
29
NUT CONSOLE TO SUPPORT
29
NUT STEERING SUPPORT TO FRAME
32
SUPPORT ENGINE FRONT MOUNTING
35
BRACKET OIL LINES
38
BEARING BRACKET HYDRAULIC CYLINDER
41
CONSOLE TORSION BAR BEARING,5 296594
41
CONSOLE TORSION BAR,FRONT
44
BEARING SHACKLE TO FRAME
44
BEARING TORSION BAR BEARING
47
BRACKET IDLING ADJUSTMENT
50
SCREW , Replaced By: N308676012013
50
HEXAGON HEAD BOLT , Replaced By: A0029902704
50
SCREW BRACKET TO FRAME M 12X35
53
WASHER
53
WASHER , Replaced By: N000125013008
56
NUT , Replaced By: N910113012003
56
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
59
CONSOLE FRONT SHOCK ABSORBERS
59
CONSOLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 424558, Replaced By: A6753203678
62
ANGLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 545914, Replaced By: A6733110245
62
ANGLE AXLE STOP
65
CONSOLE BODY MOUNTING
68
REAR SUBFRAME FRONT SPRING REAR BRACKET
71
BUSHING
74
SCREWM 12X13X18X35
77
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
77
NUT , Replaced By: N910113012003
80
CROSS MEMBER ,5 519078, Replaced By: A6753120011, +001A6753112260, +001A6753112360, +001A6753112383, +001A6733121152, +001A6733121252, +008N000961012052, +006N000961012151, +014N913004012008
80
CROSS MEMBER TRANSMISSION,5 519079
83
REINFORCEMENT LEFT
83
REINFORCEMENT RIGHT
86
REINFORCEMENT LEFT
86
REINFORCEMENT RIGHT
89
ANGLE LEFT
89
ANGLE , Replaced By: A6733121052
92
SCREW , Replaced By: N304017010040
92
SCREW , Replaced By: N304017010047
92
SCREW CONNECTOR TO REAR SHIFTING ROD
92
SCREW STRUT TO CROSS MEMBER M 10X25
95
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
98
SCREW BRACKET TO FRAME M 12X35
101
WASHER BRACKET TO FRAME
104
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
104
NUT , Replaced By: N910113012003
999
CROSS MEMBER
