Поз.
Артикул
Описание
17

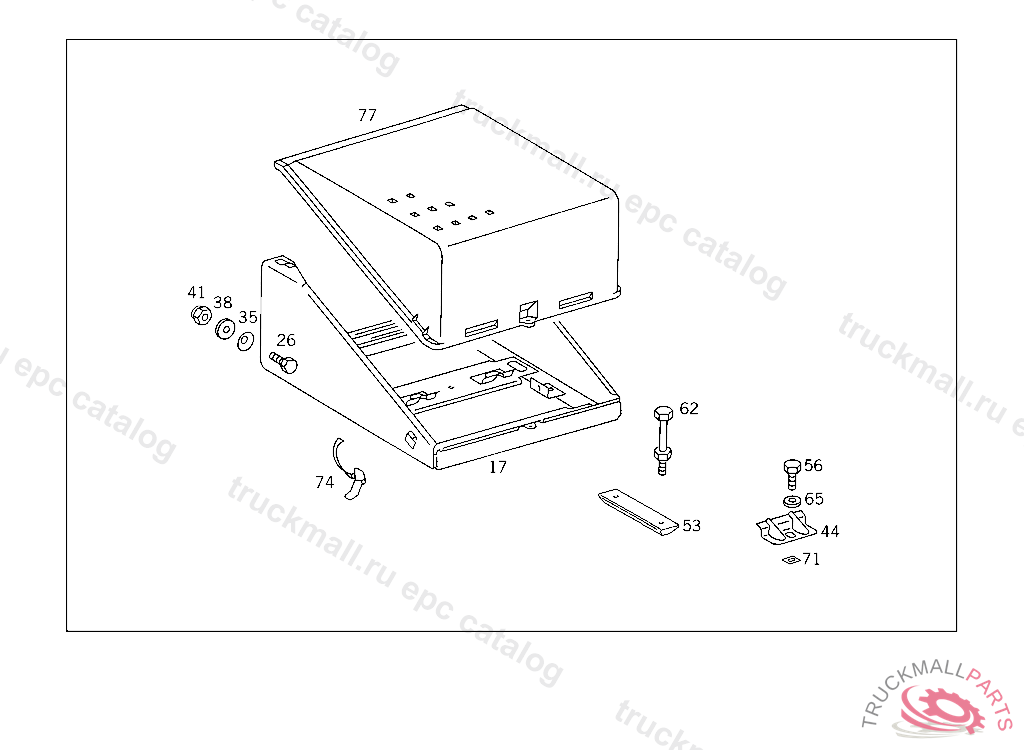

BATTERY SUPPORT ,5 2347805 419106
17
BATTERY SUPPORT
26
SCREW , Replaced By: N308676012026
26
SCREW , Replaced By: N308676012011
26
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
26
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
26
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
26
SCREW CONSOLE TO SIDE MEMBER
35
CONICAL SPRING WASHER BATTERY SUPPORT TO FRAME
38
WASHER BRACKET TO SIDE MEMBER
38
WASHER BRACKET TO FRAME
41
NUT SUPPORT TO SIDE MEMBER
44
ANGLE BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
53
BRACKET BATTERY MOUNTING,5 515832
56
SCREW CLAMP TO BRACKET AND TO PIPE
62
CLAMPING SCREW BATTERY MOUNTING,5 419107
62
SCREW , Replaced By: A6735410024
65
WASHER , Replaced By: N000125008443
65
WASHER EXHAUST MUFFLER TO STRAP
71
WASHER BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
74
FASTENER
77
COVER
999
THREADED UNION TERMINAL 30,CABLE TO STARTING MOTOR,K 199371
999
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
