Поз.
Артикул
Описание

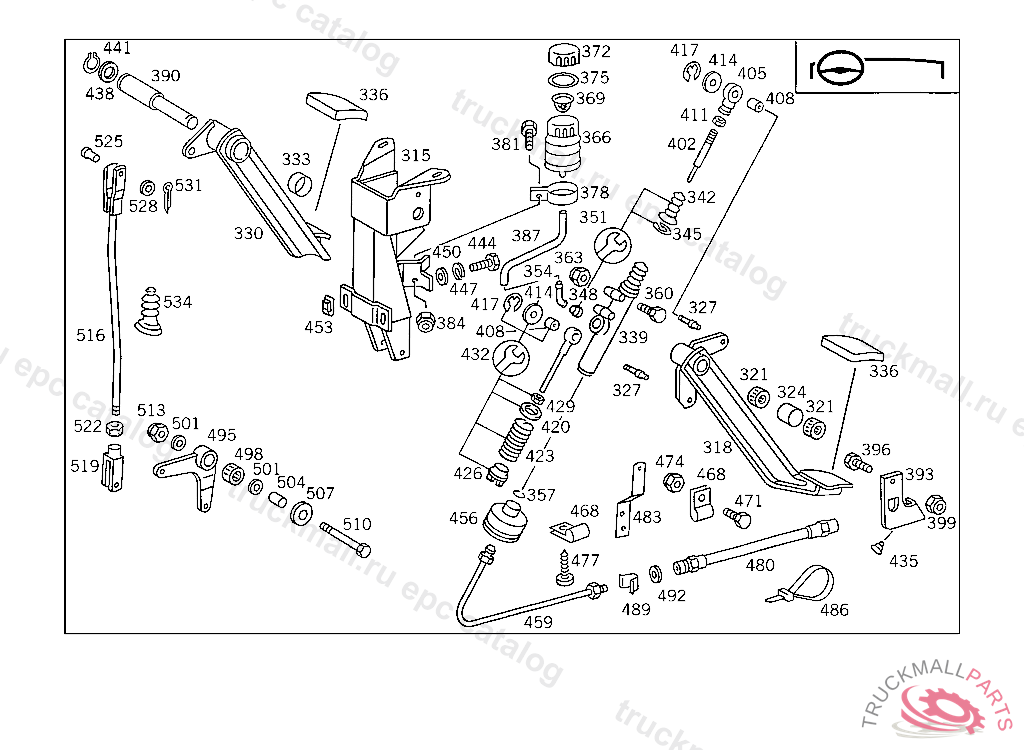

315
BRACKET PEDAL ASSEMBLY
318
PEDAL CLUTCH
321
NEEDLE BEARING , Replaced By: A0119813410
321
NEEDLE BEARING , Replaced By: A0119813410
321
NEEDLE BEARING
324
SPACER TUBE CLUTCH PEDAL
327
PIN CLUTCH PEDAL
330
PEDAL BRAKE
333
BUSHING BRAKE PEDAL
336
PAD , Replaced By: A1072910182
336
PAD BRAKE
339
MASTER CYLINDER , Replaced By: A0002957706
339
MASTER CYLINDER , Replaced By: A0012958706
339
MASTER CYLINDER , 077222
342
BOOT
345
LOCK RING19 MM
348
PLUG , Replaced By: A0009971186
348
PLUG
351
REPAIR KIT MASTER CYLINDER, 000,003,007,102,103,105,200 A 091118 083,086,093,183,190,193,280,283 F 015866
351
REPAIR KIT TO MASTER CYLINDER HAVING ALUMINUM PISTON TO 000 295 77 06
354
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO RESERVOIR
357
SNAP RING , NOT USED
360
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
363
NUT , Replaced By: N913004006001
363
NUT PUMP TO BRACKET
366
RESERVOIR , Replaced By: A1152900115
366
RESERVOIR , UP TO CHASSIS: 023 100513 072 102501 073 103666
369
STRAINERTO 002 430 31 01
369
STRAINER , Replaced By: A0004314334
369
STRAINER
372
FILLER CAPTO 000 431 16 02
372
FILLER CAP BUTTRESS THREAD
375
SEAL RING
378
CLAMP RESERVOIR TO BRACKET
381
SCREW COVER PLATE TO BRACKET
384
NUT , Replaced By: N913004006001
384
NUT PUMP TO BRACKET
387
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
390
SHAFT CLUTCH PEDAL TO BEARING BRACKET
393
BRACKET CLUTCH PEDAL TO BEARING BRACKET
396
SCREW COVER PLATE TO BRACKET
399
NUT , Replaced By: N913004006001
399
NUT PUMP TO BRACKET
402
ROD FROM LEVER TO BRAKE MASTER CYLINDER
405
ARTICULATION PIECE CLUTCH MASTER CYLINDER
405
ARTICULATION PIECE CLUTCH MASTER CYLINDER
408
NEEDLE BEARING JOINT TO PIN
408
NEEDLE BEARING JOINT TO PIN
408
NEEDLE BEARING JOINT TO PIN
408
NEEDLE BEARING JOINT TO PIN
411
NUT , Replaced By: N304035008001
411
NUT
414
WASHER BRACKET TO CROSS MEMBER
417
LOCK PLATE RELEASE LEVER TO SHAFT
420
SPRING RETAINER SPRING TO PUSH ROD
423
SPRING (DEAD CENTER SPRING) 35 MM
426
SPRING RETAINER SPRING TO PUSH ROD
429
NUT , Replaced By: N308675010000
432
REPAIR KIT DEAD CENTER SPRING
435
STOP
438
FITTED WASHER BRAKE PEDAL TO BEARING BRACKET,4 282708
441
LOCK RING BRAKE PEDAL TO SHAFT,4 282707
444
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
447
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
450
WASHER , Replaced By: N000125010532
450
WASHER RADIATOR TO RUBBER MOUNTING
453
NUT RETAINER , Replaced By: A1239901291
453
NUT RETAINER USED WITH FOUR-SPEED TRANSMISSION
456
BOOT , Replaced By: A3182950483
456
BOOT MASTER CYLINDER THRU CAB FLOOR
459
LINE , Replaced By: A3404202629
459
LINE1450 MM
459
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
468
CLAMP , Replaced By: N916016008200
468
CLAMP ,K 147121, Replaced By: N000000000319
468
CLAMP ,K 147121, Replaced By: N000000000319
471
SCREW COVER PLATE TO BRACKET
474
NUT , Replaced By: N913004006001
474
NUT PUMP TO BRACKET
477
SHEET METAL SCREW
480
HOSE FROM CLUTCH HOSE TO SLAVE CYLINDER
483
BRACKET BRACKET TO SIDE MEMBER,4 438716
486
LOOM TIE LINE MOUNTING
489
LOCK HYDRAULIC LINES TO FRAME,4 438716
492
WASHER ,4 179002-4 369654
495
LEVER REVERSING LEVER TO CAB
498
NEEDLE BEARING , Replaced By: A0119813410
498
NEEDLE BEARING , Replaced By: A0119813410
498
NEEDLE BEARING
501
SEAL RING , Replaced By: A0069979147
501
SEAL RING , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
504
BUSHING ,4 282708-4 390170, Replaced By: A3182920250, +001A3182920153, +001N000931010153, +003N009021010202, +001N913004010008
504
BUSHING REVERSING LEVER TO CAB,4 390170
507
SCHEIBE. WASHER , Replaced By: A3193260076
507
WASHER SHOCK ABSORBER TO FRAME
507
WASHER , Replaced By: N009021010209
507
WASHER BRACKET TO COVERING
510
SCREW SHIFT CASE TO TRANSMISSION M 10X105
510
SCREW , Replaced By: N000960014269
510
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
513
NUT , Replaced By: N910113014001
513
NUT BRACKET TO SIDE MEMBER
513
NUT , Replaced By: N910113010000
513
NUT STRAP TO BRACKET
516
ROD PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER
519
YOKE PULL ROD TO LEVER
522
NUT BRACKET TO SUPPORT AND TO END PIECE
525
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
528
WASHER , Replaced By: N000433010510
528
WASHER VIBRATION ABSORBER TO BRACKET
531
COTTER PIN CYLINDER TO BRACKET
534
BOOT PULL ROD THRU CAB FLOOR,4 282708-4 345476
534
BOOT PULL ROD THRU CAB FLOOR,4 345477
999
REPAIR KIT TO MASTER CYLINDER HAVING SYNTHETIC PISTON TO 001 295 87 06, FROM IDENT NO.: 148037-285631,ALSO INSTALLED ON:140555,142078605999
999
BRACKET , Replaced By: A3092910091
999
ROD OVER-CENTER ACTING SPRING
999
ROD , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 565454, Replaced By: A3102900439
999
LEVER , Replaced By: A3145860029
999
LEVER ,856855-4 2827078 000001 NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3145860129
999
PIN , Replaced By: A3529910007
999
SHACKLE
999
BRACKET RELEASE SPRING
999
SPACER TUBE REVERSING LEVER TO CAB,4 390171
999
WASHER CLUTCH OPERATION,4 282707
999
BRACKET CLUTCH OPERATION,856854
999
PIN PUSH ROD TO PEDAL,4 282707
999
ROD , Replaced By: A3132900139
999
ROD OVER-CENTER ACTING SPRING
999
ROD OVER-CENTER ACTING SPRING
