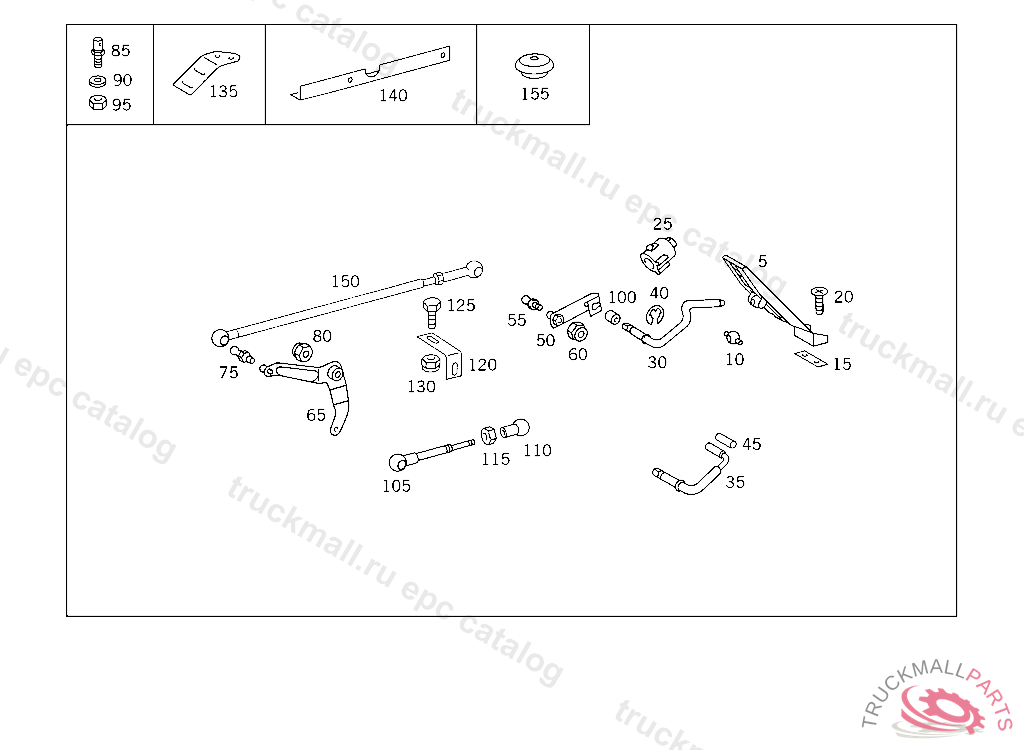

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
10
JOINT
15
SHIM PEDAL TO CAB FLOOR
20
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
25
STOP FULL THROTTLE
30
LEVER ACCELERATOR PEDAL
30
LEVER ACCELERATOR PEDAL
35
LEVER ACCELERATOR PEDAL
40
LOCK PLATE
45
PLASTIC PIPE AERATION, ORDER BY THE METER
50
LEVER CONTROL, IN CASE OF TURBOCHARGED ENGINE,ONLY INSTALL LEVER HAVING SCREWED BALL PIVOT
55
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
55
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
60
NUT AT FILTER BRACKET
65
LEVER (INTERMEDIATE LEVER)
65
LEVER CONTROL
75
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
75
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
75
BALL STUD. BALL PIVOT TOP B10X4,5 MM
80
NUT AT FILTER BRACKET
85
PIN LINK TO REVERSING SHAFT
90
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
90
WASHER COMPRESSED AIR LINE TO BRACKET
95
NUT AT FILTER BRACKET
100
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
105
ROD LINK TO ACCELERATOR PEDAL
110
BALL SOCKET PULL ROD TO LEVER
115
NUT SPRING-LOADED PUSH ROD
120
BRACKET CABLE HARNESS MOUNTING
125
SCREW FULL-LOAD STOP BRACKET
130
NUT
135
BRACKET BRACKET ON LOAD SENSOR
140
BRACKET BRACKET ON LOAD SENSOR
150
ROD LOAD SENSOR CONTROL
155
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
999
BRACKET FROM LEVER TO ACCELERATOR PEDAL
999
BRACKET WIRE CABLE TO RADIATOR MOUNTING, COMPONENT PARTS NOT AVAILABLE
999
BRACKET BRACKET ON LOAD SENSOR
