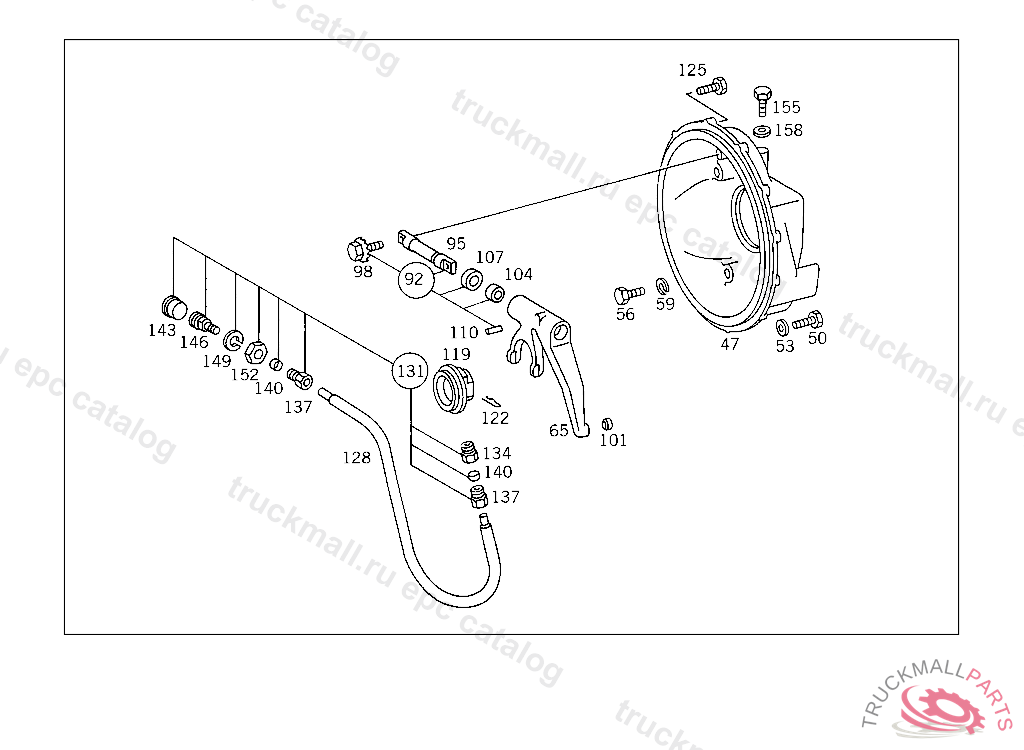

Поз.
Артикул
Описание
47
BELL HOUSING
47
BELL HOUSING , Replaced By: A6152511301, +001N000961018005, +001N007603018104
50
SCREW COVERING TO BEARING BRACKET
53
SEAL RING SOLENOID VALVE A 18X24
56
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
56
SCREW , Replaced By: N308676018010
59
LOCK WASHER BELL HOUSING TO TRANSMISSION
65
RELEASE LEVER ,5 418252
65
RELEASE LEVER ,5 418251, Replaced By: A6152540708, +001A0012540235
92
SHAFT (PARTS KIT),RELEASE SHAFT
95
SHAFT (CLUTCH RELEASE SHAFT)
98
SCREW RELEASE LEVER TO BELL HOUSING
101
BEARING RELEASE LEVER,5 418252
104
NEEDLE BEARING RELEASE LEVER
107
SEAL RING RELEASE LEVER
110
CLAMPING SLEEVE RELEASE LEVER TO SHAFT
119
RELEASE BEARING
122
SPRING , Replaced By: A6799930025
122
SPRING RELEASE LEVER TO RELEASE BEARING
125
SCREW REAR EXHAUST PIPE TO MUFFLER
128
HOSE RELEASE BEARING LUBRICATION
131
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
134
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
137
UNION SCREW RELEASE COLLAR LUBRICATION
140
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
143
CAP RELEASE BEARING LUBRICATION
143
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
146
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
146
GREASE NIPPLE RELEASE COLLAR LUBRICATION
149
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
152
NUT , Replaced By: N308675014002
152
NUT , Replaced By: N308675014000
152
NUT RELEASE BEARING LUBRICATION
