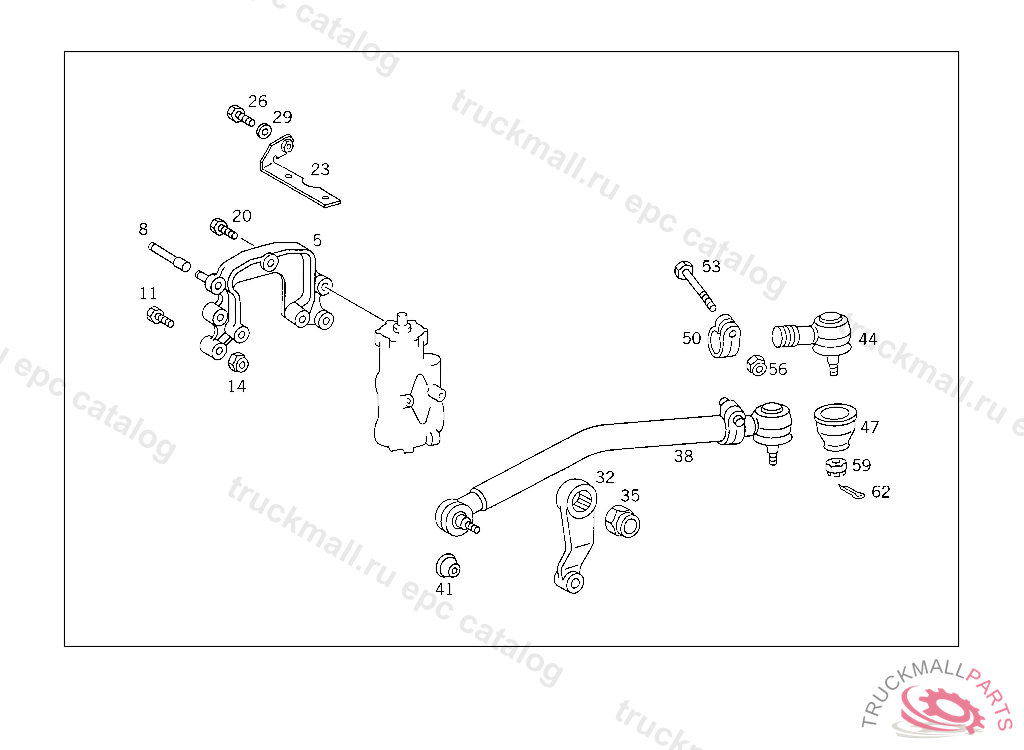

Поз.
Артикул
Описание
5
STEERING BRACKET , Replaced By: A6754600629
5
STEERING BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 431736, Replaced By: A6754600929
5
STEERING SUPPORT , Replaced By: A6754611340
5
STEERING SUPPORT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6754612140
5
STEERING SUPPORT , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 431736, Replaced By: A6754611940
5
STEERING SUPPORT ,K 055089
5
STEERING BRACKET , Replaced By: A6754601029
5
STEERING BRACKET
5
STEERING SUPPORT (STEERING BRACKET)
5
STEERING BRACKET ,K 055089
8
PIN
11
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X80
11
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
11
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
11
SCREW ,5 903513, Replaced By: N308765016011
11
SCREW BEARING BRACKET TO SHOCK ABSORBER BRACKET M 16X110,5 903513
11
SCREW , Replaced By: N308765016002
14
NUT CONSOLE TO SUPPORT
14
NUT , Replaced By: N910113016001
20
SCREW , Replaced By: N308676016006
20
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
20
SCREW , Replaced By: N308676016020
20
SCREW CONSOLE TO FRAME
23
BRACKET AIR INTAKE PIPE,K 055088
26
SCREW CLAMP TO BRACKET AND TO PIPE
29
WASHER , Replaced By: N000125008443
29
WASHER EXHAUST MUFFLER TO STRAP
32
PITMAN ARM ,K 055088
32
PITMAN ARM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 424558, Replaced By: A6754632401
32
PITMAN ARM ,K 055088
32
PITMAN ARM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 424558, Replaced By: A6754632501
32
PITMAN ARM ,K 055089
32
PITMAN ARM ,K 055089
35
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
38
DRAG LINKLEMFOERDER,K 055089
38
DRAG LINKLEMFOERDER,K 055088
38
DRAG LINKLEHRENREICH,K 055088
38
DRAG LINKLEMFOERDER,K 055088
38
DRAG LINKLEMFOERDER,K 055089
38
DRAG LINKEHRENREICH,K 055088
41
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
44
DRAG LINK END TO BE SCREWED INTO DRAG LINK EHRENREICH
44
JOINT R.H. THREAD LEMFOERDER,5 180856
44
DRAG LINK END , Replaced By: A0004602748
44
DRAG LINK END , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004602648
44
DRAG LINK END ,K 055088
47
BOOT SCREWED PART OF JOINT
50
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
50
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
53
SCREW , Replaced By: N308676012017
53
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
56
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
56
NUT , Replaced By: N910113012003
59
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
62
COTTER PINROCKINGER TYP 260 G140
999
SCREW ENGINE REAR SUPPORT M 20X1.5X50
999
SCREW BRACKET TO REAR AXLE M 20X1.5X40
999
SCREW , Replaced By: N308676020015
999
BRACKET BRACKET TO STEERING BRACKET,K 055089
