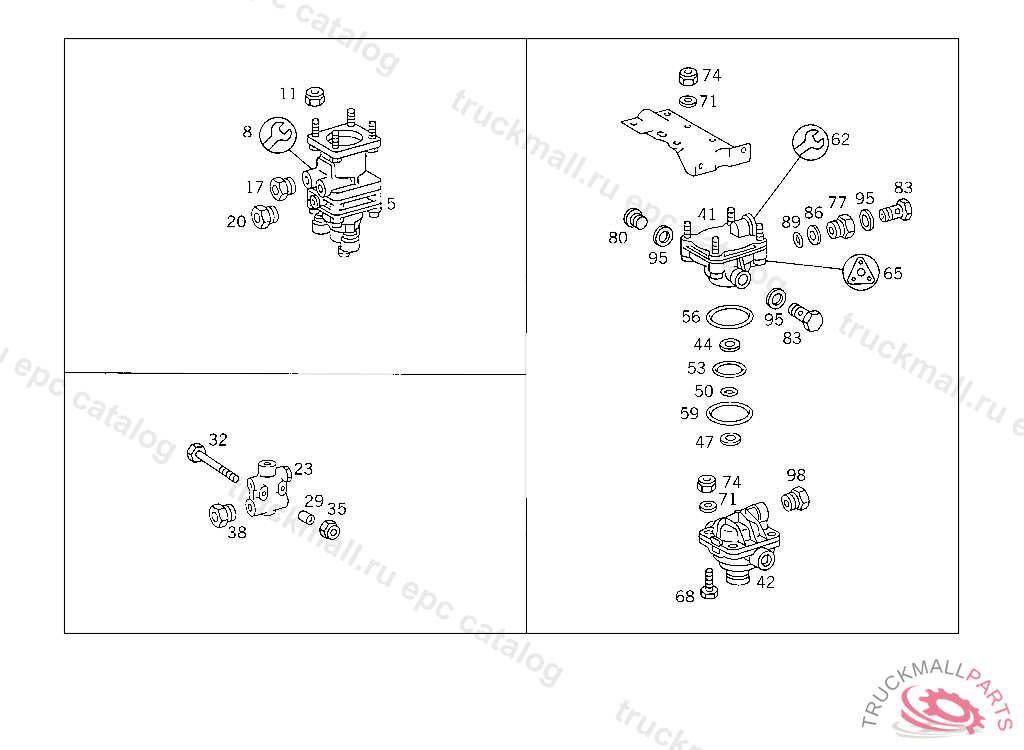

Поз.
Артикул
Описание
5
BRAKE VALVE (TWO-CIRCUIT BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE VALVE (TWO-CIRCUIT BRAKE VALVE) KNORR
5
BRAKE VALVE (TWO-CIRCUIT BRAKE VALVE) WABCO
8
REPAIR KIT , Replaced By: A0004308306
8
REPAIR KIT SERVICE BRAKE VALVE BOSCH
8
REPAIR KITWABCO
8
REPAIR KIT SERVICE BRAKE VALVE BOSCH, Replaced By: A0004303506
11
NUT , Replaced By: N913004008004
11
NUT , Replaced By: N913004008001
17
SCREW. UNION SCREW LINE CONNECTION
20
SCREW. UNION SCREW LINE CONNECTION
20
SCREW. UNION SCREW , Replaced By: A0009973734
23
DISTRIBUTOR LESS CHECK VALVE
29
SPACER TUBE , Replaced By: A3094310249
29
GUIDE BUSHING TWO-WAY VALVE TO FRAME
32
SCREW DISTRIBUTOR TO FRAME SIDE MEMBER
35
NUT , Replaced By: N913004008001
38
SCREW. UNION SCREW LINE CONNECTION
42
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
42
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
68
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
68
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
68
SCREW BRACKET TO SIDE MEMBER
68
SCREW , Replaced By: N304017008040
71
WASHER EXHAUST MUFFLER TO STRAP
71
WASHER , Replaced By: N000125008443
74
NUT , Replaced By: N913004008001
80
SCREW PLUG , Replaced By: N000908022011
80
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
95
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
98
SCREW. UNION SCREW LINE CONNECTION
98
SCREW. UNION SCREW , Replaced By: A0009973734
98
SCREW. UNION SCREW LINE CONNECTION
