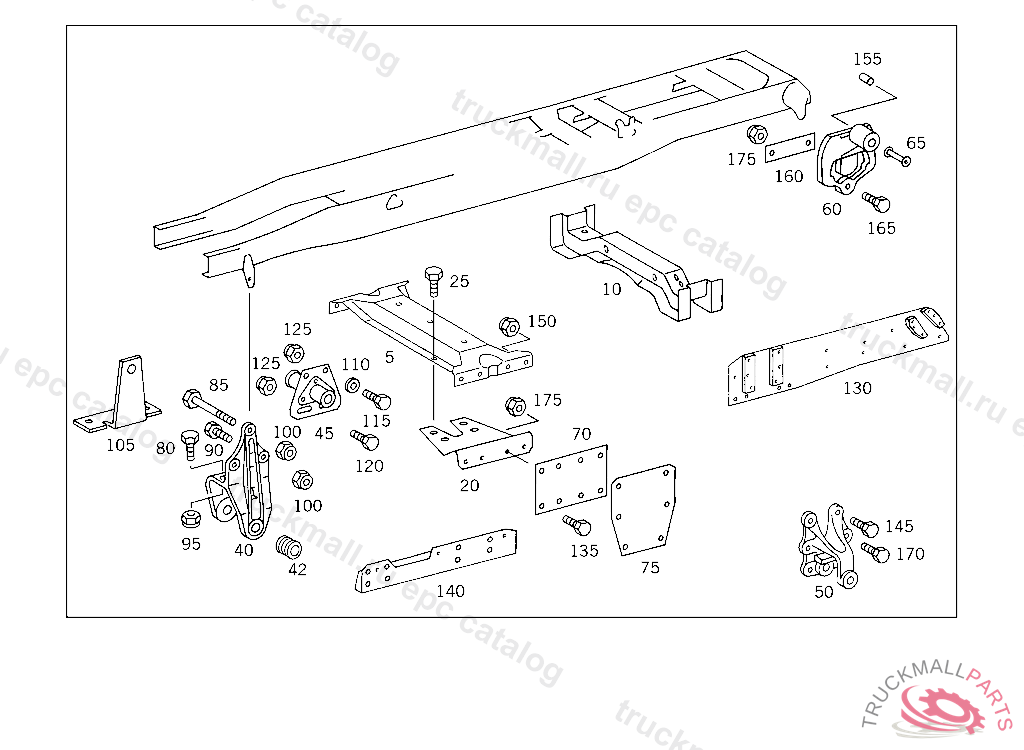

Поз.
Артикул
Описание
5
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY FROM 08.95
5
CROSS MEMBER , Replaced By: A6753100537
5
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY
5
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY
10
CROSS MEMBER REAR SHOCK ABSORBERS NO.5
20
ANGLE
25
SCREW , Replaced By: N308676014003
25
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
25
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
25
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
25
SCREW STEERING SUPPORT TO FRAME M 14X55
40
FRONT SPRING BRACKET FRONT
40
FRONT SPRING BRACKET (FRONT SPRING BRACKET),FRONT,5 508030
40
SPRING BRACKET , Replaced By: A6993223601
42
BEARING SHACKLE TO FRAME
45
REAR SUBFRAME , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6753200270
45
REAR SUBFRAME , Replaced By: A6753200170
45
REAR SUBFRAME , Replaced By: A6753200170
45
REAR SUBFRAME FRONT SPRING REAR BRACKET
50
REAR SPRING BRACKET FRONT
60
SPRING BRACKET REAR
65
RUBBER MOUNTING
65
RUBBER MOUNTING
70
SHIM REAR SPRING FRONT BRACKET
75
SHIM REAR SPRING FRONT BRACKET
80
SCREW PLATE TO SIDE MEMBER
85
SCREWM 16X18X38X60
90
SCREW FRONT SPRING FRONT BRACKET AND STEERING SUPPORT TO SIDE MEMBER
90
SCREW FRONT SPRING BRACKET TO SIDE MEMBER
90
SCREW FRONT SPRING BRACKET TO SIDE MEMBER
95
NUT PARTICLE FILTER M14
100
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
105
STIFFENING FRONT SPRING FRONT BRACKET TO SIDE MEMBER
110
WASHER VIBRATION ABSORBER TO BRACKET
115
SCREW , Replaced By: A9429901304
115
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X55
115
SCREW APPARATUS SUPPORT TO FRAME
120
SCREW , Replaced By: N308676014012
120
SCREW SUPPORT TO SIDE MEMBER M 14X45
120
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
125
NUT STEERING SUPPORT TO FRAME
125
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
125
NUT , Replaced By: N910113014000
130
STIFFENING LEFT
130
STIFFENING RIGHT
135
SCREWM 16X18X63X85
135
SCREW REAR SPRING FRONT BRACKET TO SIDE MEMBER
140
REINFORCEMENT LEFT BOTTOM
140
REINFORCEMENT RIGHT BOTTOM
145
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
150
NUT CONSOLE TO SUPPORT
150
NUT , Replaced By: N910113016001
155
BUSHING BRACKET TO FRAME
160
SHIM SPRING REAR BRACKET TO SIDE MEMBER AND TO CROSS MEMBER STAY
165
SCREW BRACKET TO SIDE MEMBER,5 597425
165
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
165
SCREW SPRING REAR BRACKET TO SIDE MEMBER AND TO CROSS MEMBER STAY
165
SCREW MOUNTING TO CONSOLE M 14X55
170
SCREW GUSSET PLATE TO SIDE MEMBER
170
SCREW , Replaced By: N308676014003
170
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
175
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
175
NUT PARTICLE FILTER M14
175
NUT STEERING SUPPORT TO FRAME
175
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
175
NUT , Replaced By: N910113014000
