Mercedes N304017008021 - АВТОЗАПЧАСТЬ

1320 677.032

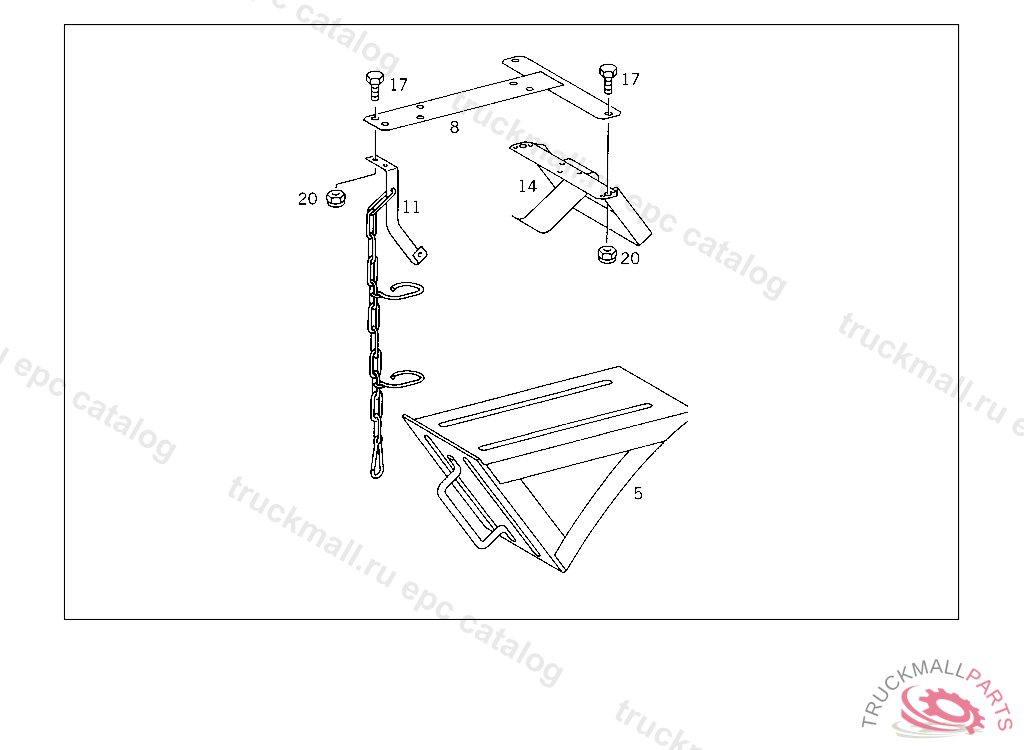

24 ENGINE SUSPENSION - 001 ENGINE-DRIVEN P.T.O.,FRONT IL.1

Поз.
Артикул
Описание
5
A6675830075
CHOCK
5
A9425830375
CHOCK
5
A3855800017
CHOCK , Replaced By: A9425830375
5
A3285800070
CHOCK , Replaced By: A6675830075
8
A6755800090
BRACKET CHOCK, NOT USED
11
A3355800290
BRACKET FOR CHOCK
11
A3355800390
BRACKET , Replaced By: A3355800290
14
A3828900079
CLAMP CHOCK FIXTURE
17
N304017008021
SCREW PIPE CLAMP
17
N000933008147
SCREW , Replaced By: N304017008021
20
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
N913004008004
NUT , Replaced By: N913004008001
999
A6755830351
BRACKET CHOCK
999
A3525800017
CHOCK
