42 BRAKES

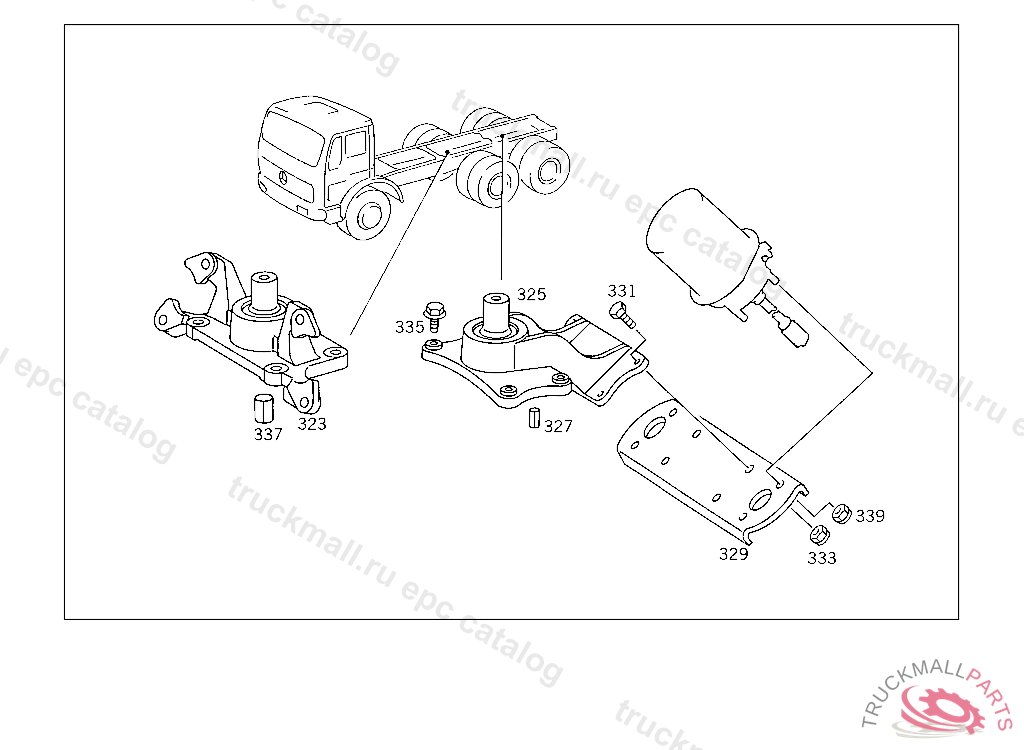

001 BRAKES USED ON CONVERSION FROM LEAF SPRING SUSPENSION TO PNEUMATIC SUSPENSION IL.7

Mercedes N308676016006 - Болт

1320 677.034

42 BRAKES - 001 BRAKES USED ON CONVERSION FROM LEAF SPRING SUSPENSION TO PNEUMATIC SUSPENSION IL.7

Поз.
Артикул
Описание
323
A6204201278
BEARING BRACKET WHEEL CYLINDER, IN CASE OF CAST AXLE
323
A6234230633
BEARING BRACKET WHEEL CYLINDER
323
A6234201878
BEARING BRACKET , Replaced By: A6234230633, +001A6239910020
323
A3934230133
BEARING BRACKET COMBINATION CYLINDER
323
A3934200478
BEARING BRACKET , Replaced By: A3934230133, +001A3939910220
325
A3874200078
BEARING BRACKET WHEEL CYLINDER
327
N007346012003
CLAMPING SLEEVE , IN CASE OF STEEL AXLE
329
A3874230006
BRAKE ANCHOR TRISTOP CYLINDER
331
N000961014028
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
333
N910113014001
NUT BRACKET TO SIDE MEMBER
333
N913004014002
NUT , Replaced By: N910113014001
335
N914125020402
SCREW BEARING BRACKET TO REAR AXLE
335
N000961016058
SCREW BEARING BRACKET TO REAR AXLE M16X1.5X70
335
N308676016006
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
335
N000961016077
SCREW , Replaced By: N308676016006
335
N308676016013
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
335
N000961016036
SCREW , Replaced By: N308676016013
337
N001481028004
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
339
N910113016002
NUT COMBINATION CYLINDER TO BEARING BRACKET
339
N913004016004
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
A0004293838
ELBOW FITTING , Replaced By: A0004294638
999
A0004294638
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
A0004313223
VALVE
999
A0004315934
STRAINER FILTER ELEMENT
999
A0004316313
VALVE SOLENOID SWITCH
999
A0014306481
VALVE (REGULATING VALVE),5 023386 TO BE ADAPTED DURING ASSEMBLY
999
A0014314412
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
A0014314812
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, NOT USED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
A0019871746
SEALING CORD38X8 MM
999
A0029978972
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
A0089970445
SEAL RING34.6X2.6 MM
999
A0089978648
SEAL RING28.4X2.6 MM
999
A0089978748
SEAL RING56X1.7 MM
999
A0099970248
SEAL RING
999
A0119973248
SEAL RING
999
A6174311940
BRACKET AIR DEHYDRATOR
999
A6204293640
BRACKET AIR DEHYDRATOR
999
A6204293940
BRACKET BREATHER LINE TO SIDE MEMBER
999
A6205842321
GUIDE SIGN AUTOMATIC LOAD-DEPENDING BRAKE
999
A6214290140
BRACKET , Replaced By: A6204293640
999
A6224290040
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
999
A6235841921
GUIDE SIGN LOAD-DEPENDING BRAKE, 623.407 FROM CHASSIS 5 032813, 623.408 FROM CHASSIS 5 030604
999
A6239910020
BALL PIVOT BEARING BRACKET, IN CASE OF CAST AXLE
999
A6454320140
BRACKET REAR AIR RESERVOIR, NOT USED
999
N000934012000
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
999
N000934012021
NUT STRAP TO SUPPORT,5 149419
999
N007603016401
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
