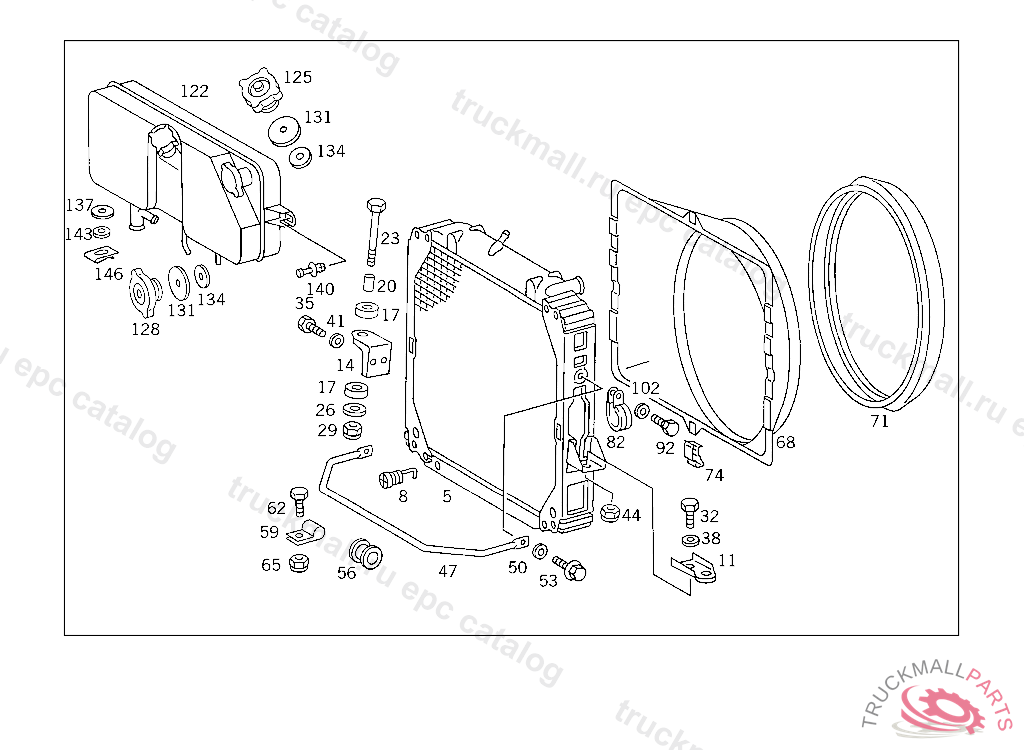

Поз.
Артикул
Описание
5
RADIATOR ,5 527394
5
RADIATOR , Replaced By: A6765001603
5
RADIATOR WATER
5
RADIATOR , Replaced By: A6775002003
5
RADIATOR ,5 527394, Replaced By: A6775002003
5
RADIATOR ,5 527393, Replaced By: A6775001503, +004A6739900032, +004A6739900132
5
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 418349, Replaced By: A6775000903
8
SCREW WATER DRAIN
11
SUPPORT RADIATOR,LEFT
14
SUPPORT RADIATOR,RIGHT
17
RUBBER MOUNTING SUPPORT TO SIDE MEMBER
20
SPACER TUBE SUPPORT TO SIDE MEMBER
23
SCREW BRACKET TO BELL HOUSING
26
WASHER SUPPORT TO SIDE MEMBER
29
NUT STRAP TO BRACKET
29
NUT , Replaced By: N910113010000
32
SCREW END PIECE TO EXHAUST PIPE M 12X30
32
SCREW , Replaced By: N304017012020
35
SCREW COMPRESSED AIR LINE MOUNTING M 10X14
38
WASHER COVER PLATE TO FRAME
41
WASHER RADIATOR TO RUBBER MOUNTING
41
WASHER , Replaced By: N000125010532
44
NUT SUPPORT TO SIDE MEMBER
47
CLAMP RADIATOR
50
WASHER BRACKET TO LEFT SIDE MEMBER
50
WASHER , Replaced By: N009021008213
53
SCREW CLAMP TO RADIADOR
56
RUBBER MOUNTING BRACKET TO CROSS MEMBER
59
CLAMP BRACKET TO CROSS MEMBER
59
CLAMP , Replaced By: A6739950101
62
SCREW PIPE CLAMP
62
SCREW , Replaced By: N304017008021
65
NUT , Replaced By: N913004008001
68
AIR BAFFLE
71
BOOT FAN SHROUD TO FAN RING
71
BOOT , Replaced By: A6775050386
74
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
82
CLAMP OIL DIPSTICK TO BRACKET
92
SCREW REDUCTION VALVE TO BRACKET
92
SCREW , Replaced By: A0079900801
102
WASHER EXHAUST MUFFLER TO STRAP
102
WASHER , Replaced By: N000125008443
122
TANK EXPANSION TANK
122
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 941451, Replaced By: A6745000049, +001A6745012082, +001A6745012182
125
RADIATOR CAP FILLER NECK
125
RADIATOR CAP , Replaced By: A0005016415
125
RADIATOR CAP FILLER NECK
125
RADIATOR CAP FILLER NECK
128
RADIATOR CAP
131
GASKET O.D., 52 MM
134
GASKET O.D., 37 MM
137
RUBBER MOUNTING RESERVOIR TO CAB FRONT PANEL
140
RIVET COOLANT LINE ON FAN SHROUD
143
WASHER BRACKET TO FRAME
143
WASHER , Replaced By: N000125017016
146
CLIP RESERVOIR TO CAB FRONT PANEL
