Поз.
Артикул
Описание
26

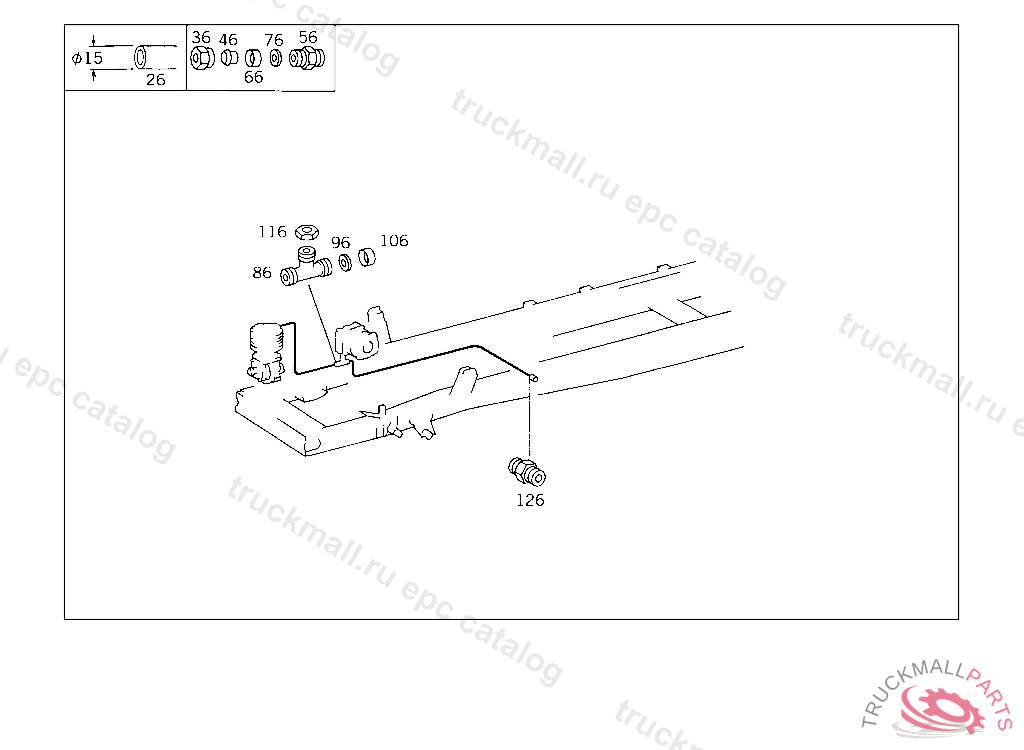

LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
26
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
36
UNION NUT BUTT SCREW CONNECTION
36
UNION NUT BUTT SCREW CONNECTION
46
GLAND LINE CONNECTION
46
GLAND LINE CONNECTION
56
FITTING AIR RESERVOIR,CONNECTION: "13"
66
THRUST RING BUTT SCREW CONNECTION
76
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
76
SEAL RING , Replaced By: N007603012121
86
T-FITTING LINE CONNECTION TO AIR COMPRESSOR
86
T-FITTING ,5 1700795 269267, Replaced By: A0029901970
96
SEAL RING LINE CONNECTION
106
THRUST RING CHECK VALVE TO AIR RESERVOIR
106
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
116
NUT CHECK VALVE TO AIR RESERVOIR
126
FITTING BULKHEAD FITTING
999
BRACKET OIL LINE MOUNTING
