Поз.
Артикул
Описание

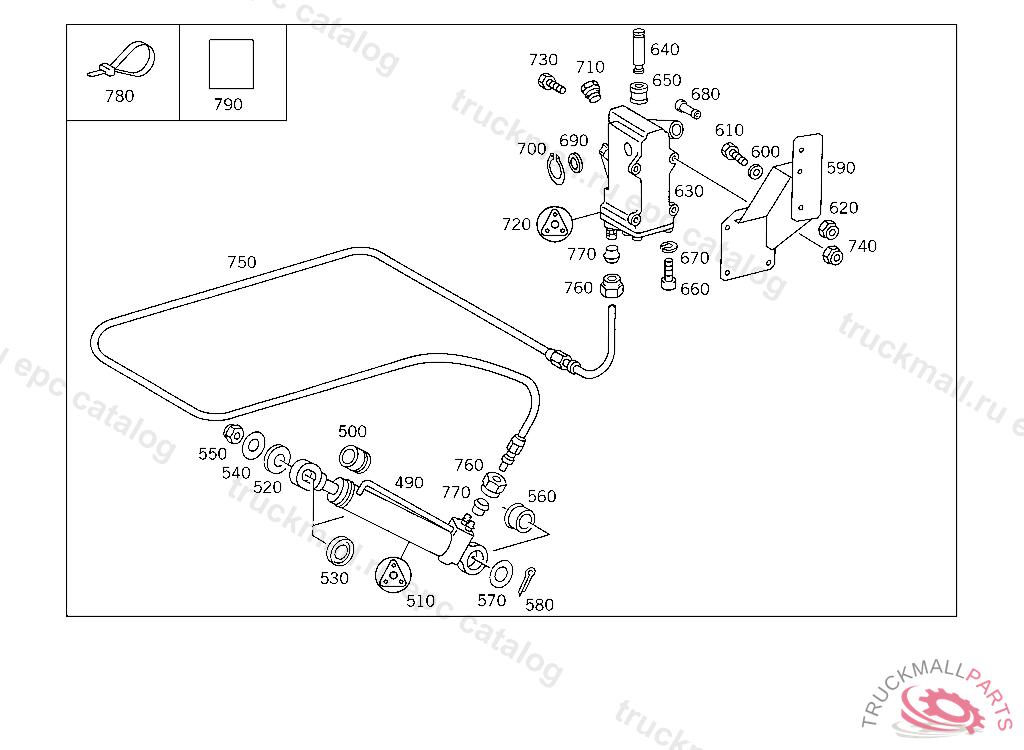

490
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING
500
GUIDETO 674 553 04 05
510
GASKET KIT HYDRAULIC CYLINDER
520
WASHER HYDRAULIC CYLINDER TO CAB
530
WASHER HYDRAULIC CYLINDER TO CAB
540
WASHER HYDRAULIC CYLINDER TO CAB
540
WASHER HYDRAULIC CYLINDER TO CAB
550
NUT COMBINATION CYLINDER TO BEARING BRACKET
550
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
560
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
570
WASHER HYDRAULIC CYLINDER TO BEARING BRACKET, 387.006-154, 389.006-154, UP TO IDENT-NO. 4 646673,387.214-227, 393.311-586, 395.312-454 UP TO IDENT NO. 4 646483
570
WASHER , Replaced By: N000125025008
580
COTTER PIN
590
BRACKET HYDRAULIC PUMP
600
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
600
WASHER BRACKET TO FRAME
600
WASHER , Replaced By: N006902011100
600
WASHER , Replaced By: N006902011102
610
SCREW SUPPORT TO CROSS MEMBER M 10X28
610
SCREW CONSOLE TO SIDE MEMBER
620
NUT STRAP TO BRACKET
620
NUT SUPPORT TO SIDE MEMBER
620
NUT , Replaced By: N910113010000
630
PUMP , Replaced By: A0005537901
630
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
640
PISTONTO 000 553 39 01,WEBER
640
PISTONTO 000 553 89 01
650
VALVETO 000 553 39 01,WEBER
650
VALVETO 000 553 89 01
660
SCREW
660
SCREW , Replaced By: N000000000190
670
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
680
FILTER
690
FITTED WASHER
700
LOCK RING
710
SCREW
720
GASKET KIT HAND PUMP
720
GASKET KIT HAND PUMP TO 000 553 37 01,000 553 39 01,WEBER
730
SCREW HAND PUMP TO BRACKET
740
NUT , Replaced By: N910113010000
740
NUT STRAP TO BRACKET
750
HOSE FROM HYDRAULIC LINE TO CYLINDER
760
UNION NUT
770
SEAL CONE
770
GLAND , Replaced By: A0019901667
780
LOOM TIE LINE MOUNTING
790
GUIDE SIGN IN DUTCH
790
GUIDE SIGN IN DANISH
790
GUIDE SIGN IN FRENCH
790
GUIDE SIGN IN GERMAN
790
GUIDE SIGN IN SPANISH
790
GUIDE SIGN IN ENGLISH
999
WASHER , Replaced By: N007349013003
999
BUSHING TORSION BAR,FRONT
999
WIRE CABLE RETAINING STRUT UNLOCKING MECHANISM, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
PLATE
999
BRACKET SHOCK ABSORBER, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
STRUT
999
LEVER CAB SUSPENSION,FRONT RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
BRACKET
999
LEVER CAB SUSPENSION,FRONT LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
BRACKET CAB SUSPENSION,FRONT RIGHT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
LEVER RETAINING STRUT UNLOCKING MECHANISM, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
LEVER
999
LEVER
999
BRACKET CONSOLE,FRONT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
STRUT CAB SUSPENSION,REAR, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 807174
999
CONSOLE CAB SUSPENSION,REAR LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
CONSOLE , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 462572
999
CONSOLE CAB SUSPENSION,FRONT LEFT TOP, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DELIVER ADDITIONALLY: 1X 000960 014194, 1X 673 990 15 40 UP TO IDENT NO.: 5 251745
999
CONSOLE LONG PEDESTAL
999
CONSOLE CAB SUSPENSION,FRONT RIGHT BOTTOM, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SPACER RING LEVER TO CONSOLE, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SCREW LEVER STOP, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
WASHER LEVER TO CONSOLE, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
RUBBER BUFFER CAB SUSPENSION,FRONT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SPACER WASHER LEVER TO CONSOLE, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
TORSION BAR CAB SUSPENSION,FRONT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SHACKLE
999
LEVER
999
BUSHING LEVER TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SHACKLE
999
LEVER
999
PIN
999
LEVER RETAINING STRUT UNLOCKING MECHANISM, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
PIN
999
PIN
999
PIN
999
STRUT CAB SUSPENSION,REAR
999
BRACKET
999
PIN
999
WASHER , Replaced By: N007349015002
999
SPRING18 MM, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SPRING39 MM, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
SPRING LEVER TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
