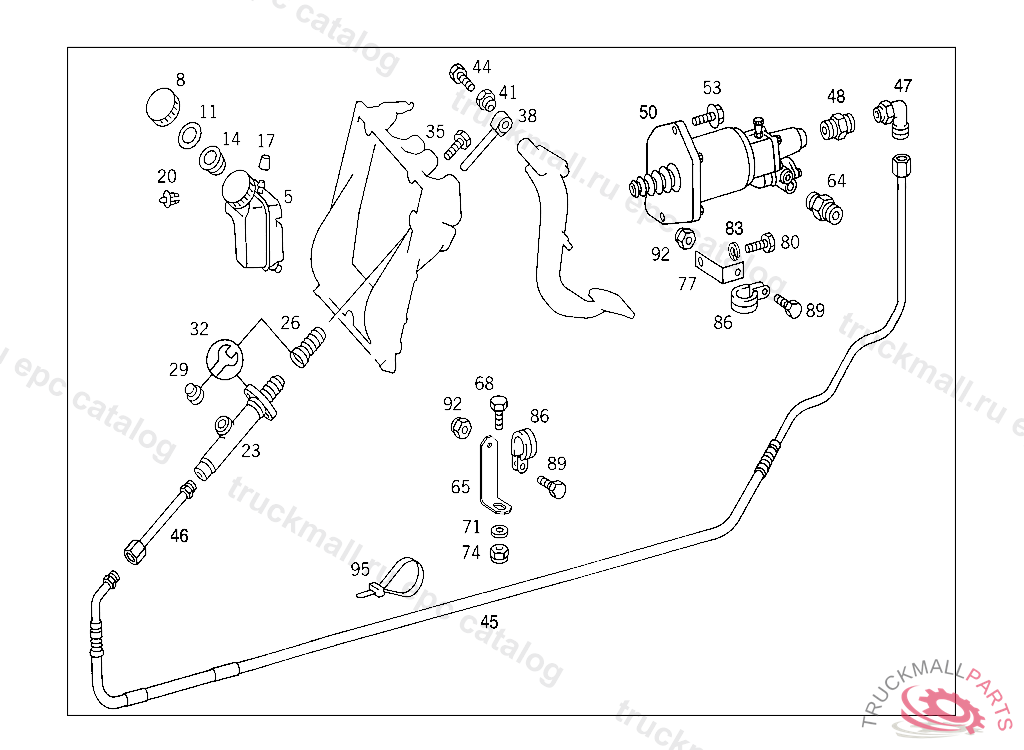

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
RIVET RESERVOIR TO FIRE WALL
23
MASTER CYLINDER CLUTCH,K 032902
23
MASTER CYLINDER , Replaced By: A0012959606
26
BOOT
29
PLUG
32
REPAIR KIT CLUTCH MASTER CYLINDER,5 366604K 032902
35
SCREW COVER PLATE TO BRACKET
38
ROD CLUTCH MASTER CYLINDER,5 366604
41
BUSHING PISTON ROD TO CLUTCH PEDAL
44
SCREW FITTING TO TRANSMISSION M8X32
45
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
45
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER
46
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE
47
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
48
FITTING
50
CLUTCH BOOSTER ,5 962907
53
SCREW CLUTCH BOOSTER TO BELL HOUSING M 10X30,5 962907
64
FITTING CLUTCH BOOSTER,CONNECTION: "4"
64
SCREW-IN FITTING HYDRAULIC LINE TO CLUTCH BOOSTER
64
FITTING , Replaced By: A0029909768
65
BRACKET CLUTCH LINE,5 937103
65
BRACKET CLUTCH LINE
68
SCREW REAR EXHAUST PIPE TO MUFFLER
68
SCREW SUPPORT TO FENDER
71
WASHER EXHAUST MUFFLER TO STRAP
71
WASHER RADIATOR TO RUBBER MOUNTING
74
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
74
NUT STRAP TO BRACKET
77
BRACKET CLUTCH LINE
80
SCREWM 16X25
83
LOCK WASHERROCKINGER TYP 59 G140,59 G150
86
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
86
CLAMP ,K 147121, Replaced By: N000000000319
89
SCREW COVER PLATE TO COVER PLATE M 6 X 12
92
NUT BALL PIVOT TO LEVER
95
LOOM TIE LINE MOUNTING 280 MM
