Поз.
Артикул
Описание

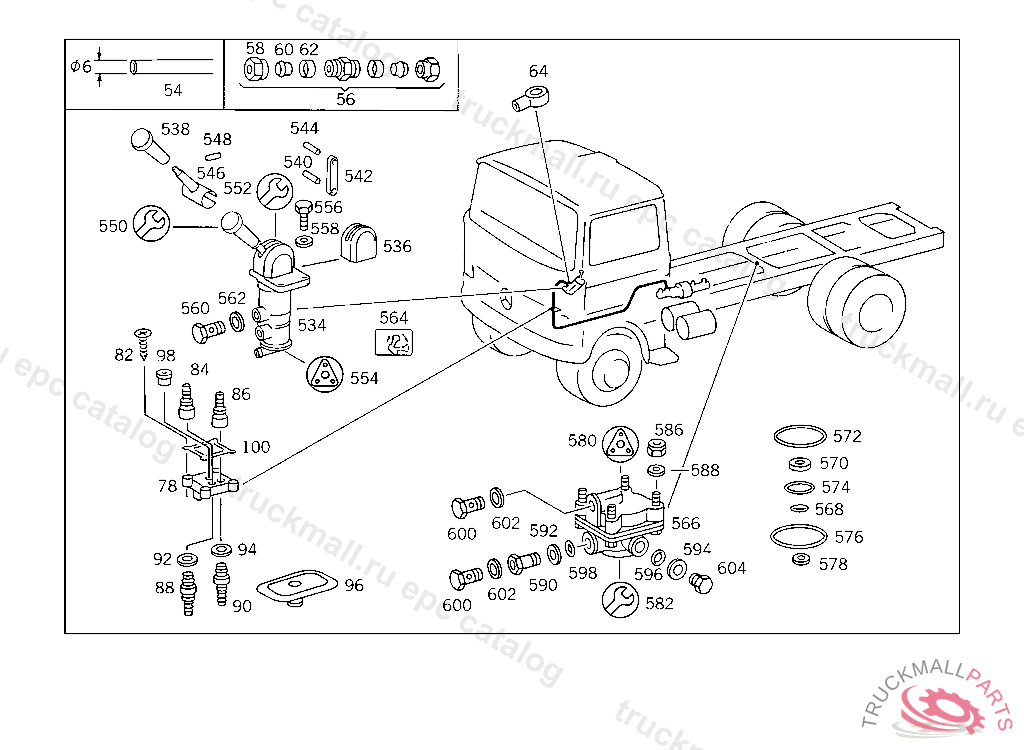

54
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
54
PLASTIC PIPE RISING PIPE 4X6 MM
56
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
58
UNION NUT
60
GLAND , Replaced By: A0019901667
62
BUSHING , Replaced By: N915062004000
62
SLEEVE LEAK LINE
64
BANJO UNION ,4 282708
64
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
78
COUPLING PIECE AT CAB FLOOR,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
82
SHEET METAL SCREW ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
84
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
86
CONNECTOR HOSE WIDTH, / I.D., 6 MM
88
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
90
CONNECTOR DISTRIBUTOR TO CAB
92
SEAL RING5X1.5,TO 000 990 42 78,4 373947
94
SEAL RING6X2, TO 000 990 43 78
96
GROMMET ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
98
PLUG ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
100
GASKET ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
534
VALVE PARKING BRAKE KNORR
534
VALVE PARKING BRAKE WABCO
534
VALVE PARKING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
536
PROTECTIVE CAPKNORR
536
PROTECTIVE CAPTO WABCO
538
HANDLETO 001 430 08 81,BOSCH
538
HANDLETO 002 430 29 81,WABCO
540
PINTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
542
ACTUATING PARTTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
544
PINTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
546
LEVER , Replaced By: A0034302881
548
PINTO 002 430 90 81
550
HANDLETO 001 430 17 81,KNORR
552
REPAIR KITTO 001 430 56 81,001 430 57 81
552
REPAIR KIT , Replaced By: A0034303181
554
REPAIR KITBOSCH
554
REPAIR KITTO 001 430 18 81/78 81
556
SCREW , Replaced By: N304017008021
558
WASHER , Replaced By: N009021008213
560
HOLLOW SCREW , Replaced By: N915036010108
562
SEAL RING INJECTION PUMP
564
GUMMED LABEL INSTRUCTION FOR PARKING BRAKE VALVE
566
VALVE (RELAY VALVE) KNORR
566
VALVE (RELAY VALVE) BOSCH
566
VALVE (RELAY VALVE) WABCO
568
SEAL RING22.3X2.4 MM,GRAU
570
VALVE SEATGRAU
572
SEAL RINGTO 000 429 28 95,GRAU
574
SEAL RING28X2 MM,GRAU
576
SEAL RING86X2 MM,GRAU
578
GASKET34X2X6 MM,GRAU
580
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
580
REPAIR KIT , Replaced By: A0004201071
582
REPAIR KIT , Replaced By: A0004205555
582
REPAIR KITWABCO
582
REPAIR KITKNORR
582
REPAIR KIT SMALL SCOPE TO 001 429 68 44
586
NUT , Replaced By: N913004008001
588
WASHER TRAILER PLUG SOCKET TO BRACKET
590
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
592
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
594
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
596
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
598
O-RING CHECK VALVE TO AIR RESERVOIR
600
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
602
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
604
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
999
COUPLING PIECE ,4 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
999
VALVEBOSCH
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KITTO 002 431 83 06
999
COVERTO 001 431 85 14,4 282708
999
REPAIR KIT , Replaced By: A0004301109
999
CLAMP , Replaced By: N916016008200
999
TUBE. BUSHING CAB FLOOR COVERING
999
CLAMP ,K 147121, Replaced By: N000000000319
