Mercedes A1819970341 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

L 1521 685.073

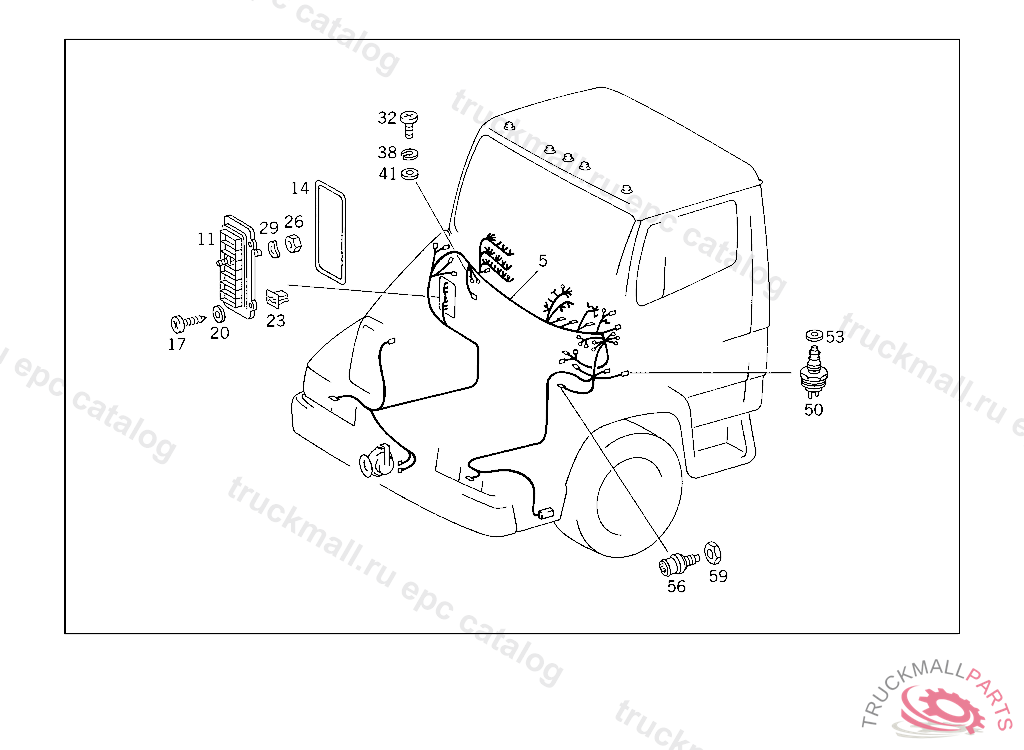

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 210 CABLE HARNESSES,PRESSURE SWITCHES IL. 1

Поз.
Артикул
Описание
5
A6855407005
11
A6675450428
PLUG HOUSING. PLUG (PLUG HOUSING)
14
A1819970341
SEALING RING. SEAL RING PLUG HOUSING TO FIRE WALL
17
N007981004252
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
20
N000125005315
WASHER FUSE TO FUSE BOX
23
A0009884225
TREENAIL PLUG HOUSING TO FIRE WALL
26
N000934006006
NUT
29
N000137006101
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
32
N007985006510
SCREW CABLE HARNESS MOUNTING M6X16
38
N912004006100
LOCK WASHER CABLE TO FUSE BOX
41
N000125006420
WASHER PLUG SOCKET TO BRACKET
50
A3845457014
SWITCH CLUTCH SWITCH
56
A6885457109
SWITCH , Replaced By: A6935457309
56
A0005456909
SWITCH STOP LIGHT
56
A6885457009
SWITCH , Replaced By: A6965450009
59
A0009909251
NUT SWITCH
