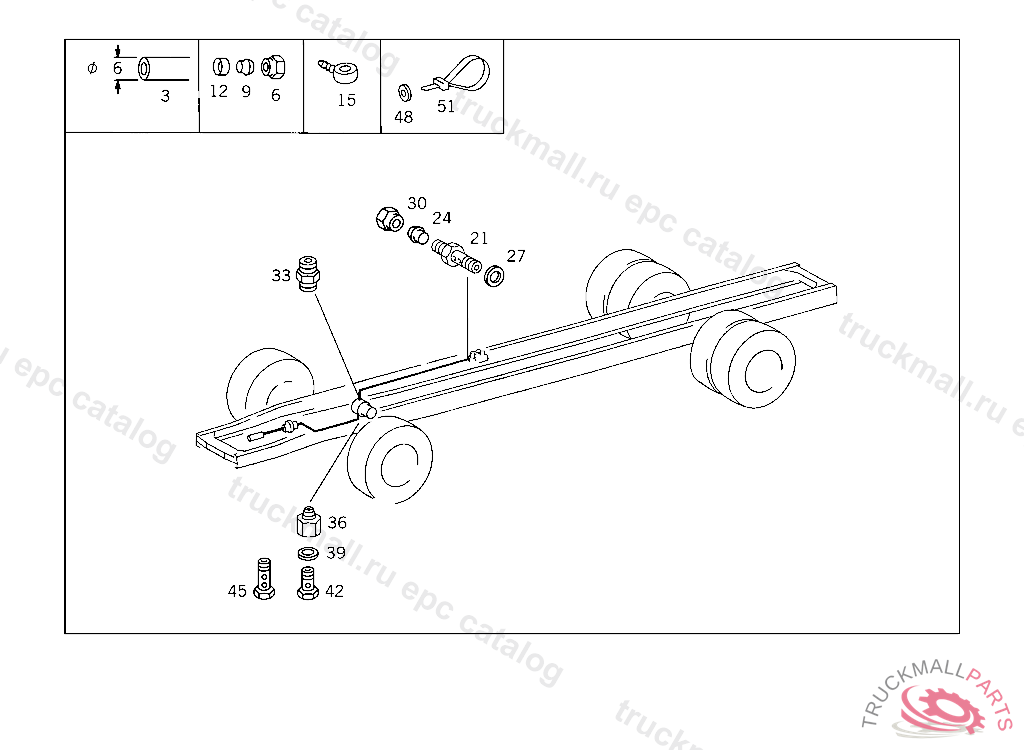

Поз.
Артикул
Описание
3
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
6
UNION NUT
9
GLAND , Replaced By: A0019901667
12
SLEEVE LEAK LINE
15
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
21
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
24
LOCKING CONE
27
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
30
NUT
33
CONNECTOR SOLENOID VALVE,CONNECTION: "2"
36
FITTING SOLENOID VALVE,CONNECTION: "2"
39
SEAL RING LINE CONNECTION
42
HOLLOW SCREW HEATING CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
PART NAME MISSING FITTING
999
PART NAME MISSING SEAL RING
999
PART NAME MISSING PLASTIC TUBE
