Mercedes N000933008288 -

914 688.133

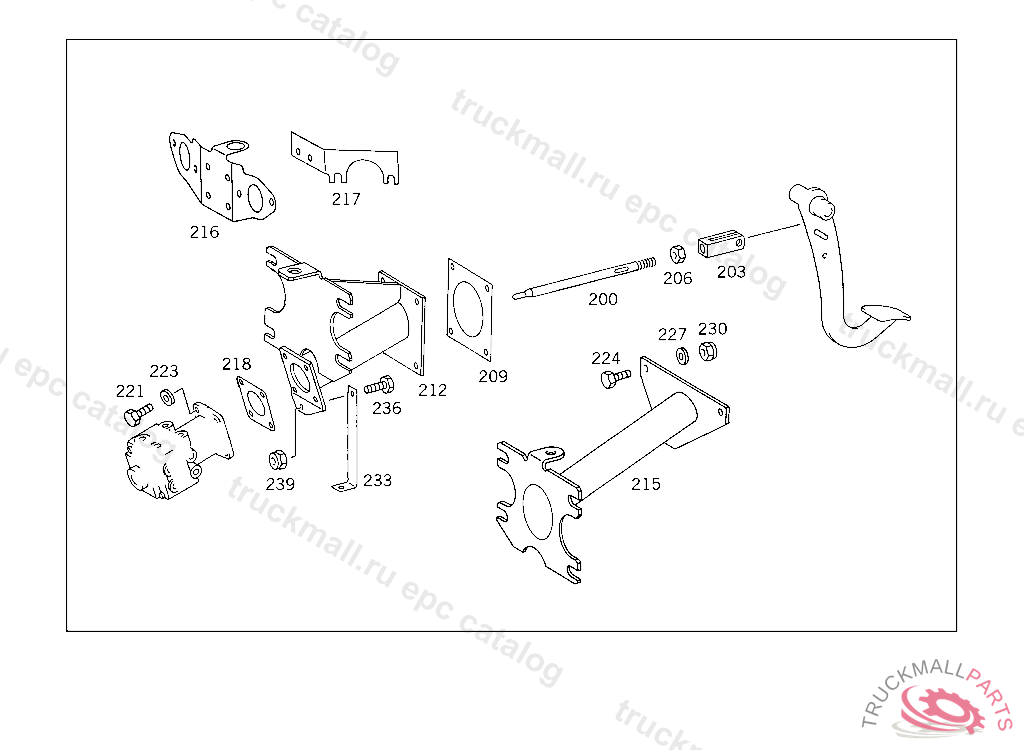

29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY IL. 3

Поз.
Артикул
Описание
200
A6884260230
ROD
203
A3849967001
YOKE
203
A6889967001
YOKE
206
N910112012001
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
209
A6884310080
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
212
A6884307010
BRACKET ,D 105286
212
A6884308010
BRACKET BRAKE MASTER CYLINDER
215
A6884307110
BRACKET ,B 915669
216
A6884317840
BRACKET AT BRAKE BOOSTER
218
A3134310080
GASKET BRAKE SHOE WITH LINING
221
N000933008288
SCREW LINES TO BRACKET
233
A6884310395
WEB BRAKE BOOSTER ASSEMBLY TO FIRE WALL
236
N000933008282
SCREW PLUG SOCKET TO FRAME
236
N000939008134
STUD BOLT STAY TO BRACKET AND TO SIDE MEMBER M 8X22
239
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
A6882920070
STUD
