Главная
›
Mercedes
›
VAN
›
311 CDI,313 CDI
›
690.641
›

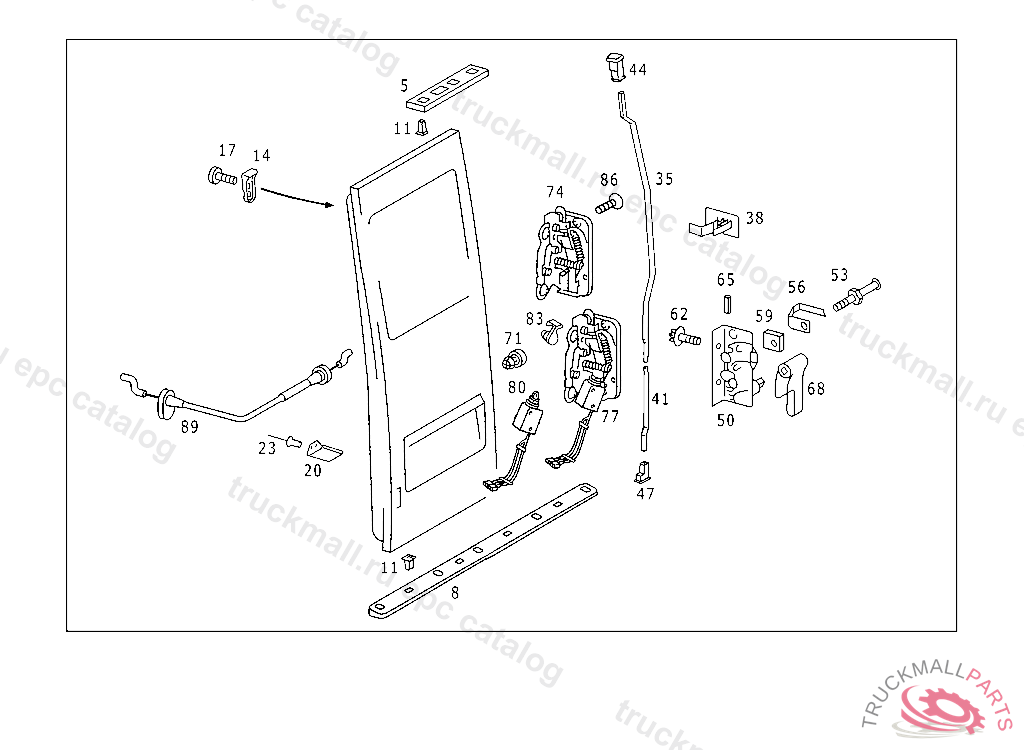

74 REAR PANEL DOOR
›
070 CLOSING SYSTEM IL. 1
Mercedes A9017400735 - Замок
311 CDI,313 CDI 690.641
74 REAR PANEL DOOR - 070 CLOSING SYSTEM IL. 1
Поз.
Артикул
Описание
5
A9017660219
PLATE LEFT TOP
8
A9017660119
PLATE BOTTOM
11
A9019880025
TREENAIL PLATE TO BODY
14
A9017430141
SPACER TOP
17
A0009843229
SCREW MOUNTING PARTS
20
A9017430241
SPACER BOTTOM
23
A0039902097
RIVET RUNNING-ON WEDGE, BOTTOM
35
A9017400192
ROD HIGH ROOF
35
A9017400092
ROD LOW ROOF
38
A9017430064
LATCH GUIDE
41
A9017430169
ROD BOTTOM
44
A9017430239
GUIDE TOP
47
A6017430039
GUIDE BOTTOM
50
A9017400135
LOCK
53
A0007430015
PIN
56
A0007430132
CLAMP
59
A0007430011
PLATE
62
A0029900112
SCREW LOCK TO DOOR M 6X12
62
A0009847929
SCREWROCKINGER,TYP 59 U150
65
N001481003028
CLAMPING SLEEVE TOP WABCO
68
A9017430172
HANDLE
71
A0099883778
CLIP
74
A9017200235
LOCK , Replaced By: A9017201135
77
A9017201135
LOCK
77
A9017400735
LOCK WITH ANTI-CHILD DEVICE
77
A9017400835
LOCK WITH CHILD-PROOF LOCK AND CENTRAL LOCKING SYSTEM
77
A9017400435
LOCK USED WITH CENTRAL LOCKING MECHANISM
80
A0018002475
ELEMENT SERVOMOTOR
83
A0008050125
CLIP SERVOMOTOR
86
A0009849729
SCREW BRACKET TO SUPPORT M 6X15
89
A9017600504
PULL
