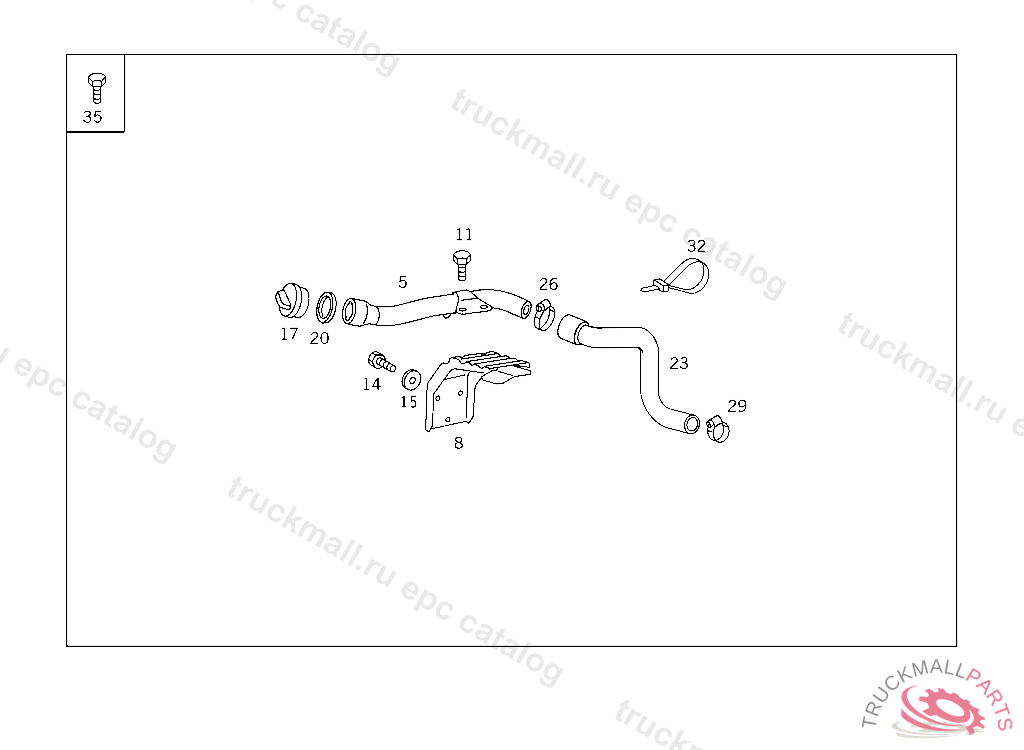

Поз.
Артикул
Описание
5
OIL FILLER NECK
8
BRACKET (OIL FILLER PIPE)
11
SCREW BRACKET AND CLAMP M6X20
11
SCREW BRACKET TO CAB REAR PANEL M 8X20
14
SCREW , Replaced By: N914146006102
14
SCREW BRACKET TO WATER RADIATOR
15
WASHER , Replaced By: N009021006208
17
COVER OIL FILLER NECK
20
GASKET COVER TO FITTING
20
GASKET , Replaced By: A1020180080
23
HOSE FROM OIL FILTER NECK TO ENGINE
29
CLAMP , Replaced By: N000000000671
29
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
32
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
35
SCREW CLAMP TO BRACKET
