Поз.
Артикул
Описание

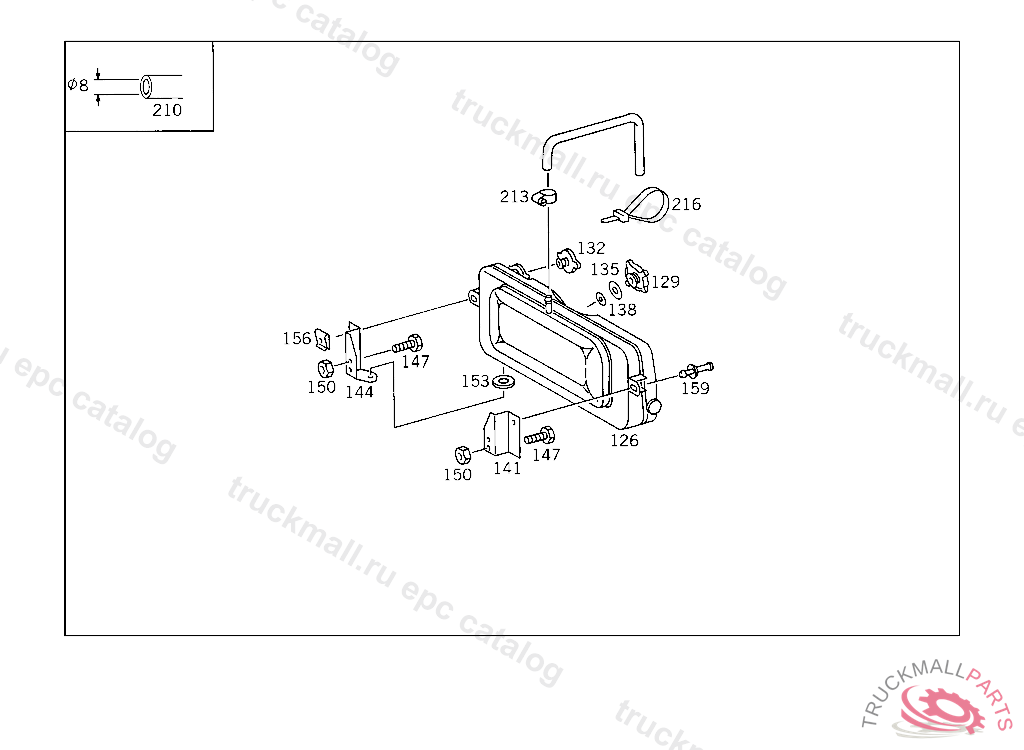

126
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 941451, Replaced By: A6745000049, +001A6745012082, +001A6745012182
129
RADIATOR CAP FILLER NECK
129
RADIATOR CAP FILLER NECK
132
RADIATOR CAP
135
GASKET O.D., 52 MM
138
GASKET O.D., 37 MM
141
BRACKET EXPANSION TANK,LEFT
144
BRACKET EXPANSION TANK,RIGHT
147
SCREW , Replaced By: N304017008021
147
SCREW PIPE CLAMP
150
NUT , Replaced By: N913004008001
153
RUBBER MOUNTING RESERVOIR TO CAB FRONT PANEL
156
CLIP RESERVOIR TO CAB FRONT PANEL
159
RIVET COOLANT LINE ON FAN SHROUD
210
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0029976482
210
HOSE OVERFLOW, EXPANSION TANK 8X1500 MM
213
CLAMP , Replaced By: N916017011001
213
CLAMP , Replaced By: N000000000665
213
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
216
LOOM TIE LINE MOUNTING 280 MM
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
SCREW PUMP TO BRACKET
999
SCREW BRACKET TO SHIM
999
NUT , Replaced By: N304032008006
999
SCREW , Replaced By: N304017006016
999
999
999
999
999
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 70 CCM,TO 002 205 65 06
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
