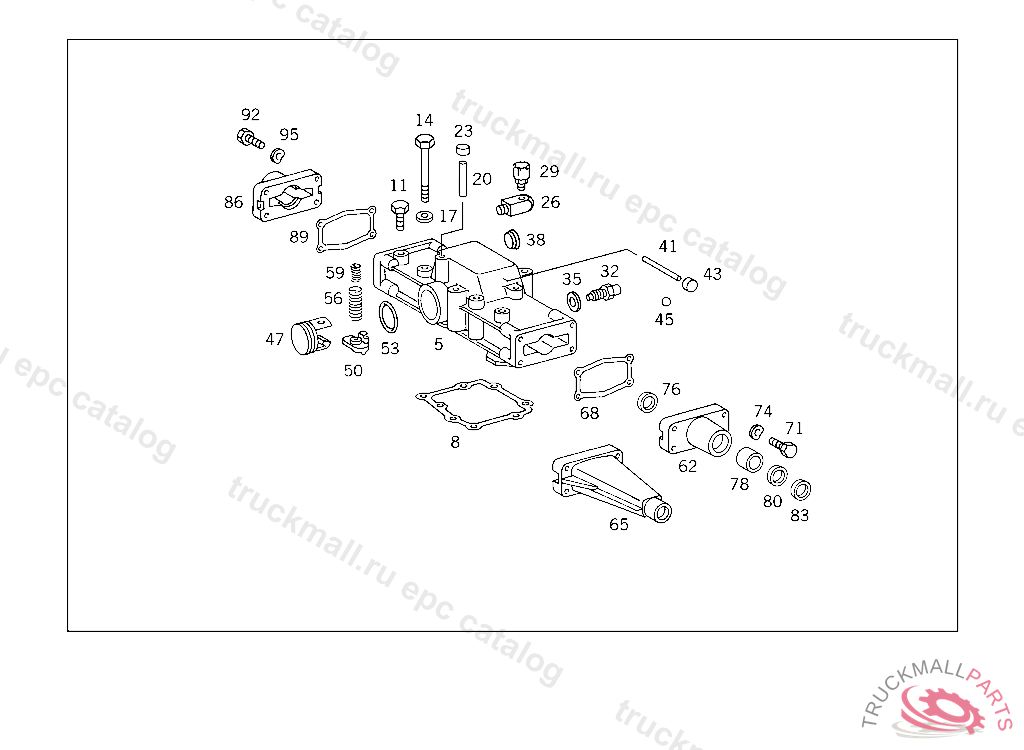

Поз.
Артикул
Описание
5
HOUSING (SHIFT CASE)
8
GASKET SHIFT CASE TO TRANSMISSION
11
SCREW PIPE CLAMP
14
SCREW SHIFT CASE TO TRANSMISSION M 8X80
14
SCREW VALVE BODY ASSEMBLY TO TRANSMISSION M 8X55
17
WASHER EXHAUST MUFFLER TO STRAP
20
DOWEL PIN FOR DETENT
23
EXPANSION PLUG HOUSING,BOTTOM
26
FITTING BREATHER
29
BREATHER , Replaced By: A3432640089
32
STOP
35
SEAL RING SHIFT CASE,TOP
38
SCREW PLUG
41
DOWEL PIN INTERLOCK PIN STOP
41
DOWEL PIN , Replaced By: A0019913760
45
BALL
47
COVER INTERLOCK PIN STOP
50
INTERLOCK PIN SHIFTING FINGER
53
SEAL RING SHIFT CASE,FRONT
56
SPRING INTERLOCK PIN STOP
59
SPRING INTERLOCK PIN STOP
62
COVER SHIFTING SHAFT AND SHIFTING FINGER
62
COVER , Replaced By: A0002670806, +001A0119972246
68
GASKET , Replaced By: A0002675080
68
GASKET SHIFT CASE,BOTTOM
71
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
74
SPRING WASHER BOX TO BODY
76
SEAL RING SHIFTING DOME,TOP
78
BUSHING SHIFTING DOME,TOP
80
SEAL RING SHIFTING SHAFT
83
BOOT SHIFTING SHAFT
86
COVER SHIFT CASE,BOTTOM
86
COVER SHIFT CASE,BOTTOM
89
GASKET SHIFT CASE,BOTTOM
89
GASKET , Replaced By: A0002675080
92
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
95
SPRING WASHER BOX TO BODY
