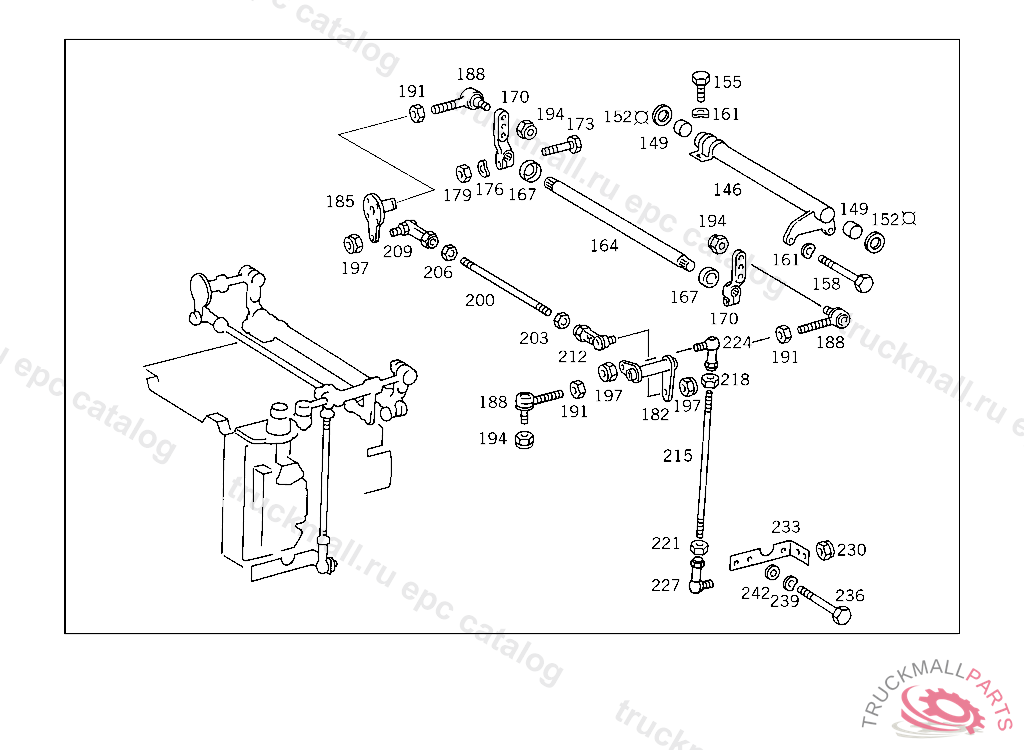

Поз.
Артикул
Описание
146
SHAFT (BEARING TUBE)
149
BUSHING , 10/50 UP TO TRANSMISSION 279825,20/60 FROM TRANSMISSION 000001
149
BUSHING , Replaced By: A0002685650
149
BUSHING , Replaced By: A0002685950
149
NEEDLE BEARING , Replaced By: A0002683050
152
SEAL RING SHIFTING SHAFT IN SHIFTING TUBE
155
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
158
SCREW , Replaced By: N304017010055
158
SCREW , Replaced By: N304017010050
161
SPRING WASHER STEERING COLUMN BRACKET TO CAB
164
SHIFTING SHAFT SHIFTING TUBE
167
PROTECTIVE PLATE SHIFTING TUBE
170
SHIFT LEVER
170
LEVER , Replaced By: A0002682630
170
SHIFT LEVER , Replaced By: A0002651131, +001N000137010201, +001N000939010008
170
SHIFT LEVER SHIFTING TRANSFER, R.H.D.
173
SCREW SHIFTING ROD TO JOINT
176
SPRING WASHER STEERING COLUMN BRACKET TO CAB
179
NUT , Replaced By: N304032010002
179
NUT
182
CONNECTOR SHIFTING TUBE TO SHIFT LEVER
185
CONNECTOR , Replaced By: A0002601675
185
CONNECTOR SHIFTING TUBE TO SHIFT LEVER,131098,5 S 110 GPA131454,5 K 110 GPA
188
JOINT SHIFTING SHAFT,TOP
188
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0002684889
191
NUT , Replaced By: N308673014001
191
NUT BRACKET TO SIDE MEMBER,K 035196
194
HEXAGON NUT
194
NUT , Replaced By: A0002680472
194
NUT , Replaced By: N913004010010
194
NUT , Replaced By: N910113010002
197
NUT , Replaced By: N910113010000
197
NUT STRAP TO BRACKET
200
SHIFTING ROD , Replaced By: N900331012340
200
PULL ROD , TO BE ADAPTED DURING ASSEMBLY
203
NUT PULL ROD
206
NUT STRAP TO SUPPORT,5 149419
209
JOINT BOTTOM
209
JOINT , Replaced By: A0002686289
209
JOINT , Replaced By: A0002684689
212
JOINT , Replaced By: A0002686189
212
JOINT TOP
212
JOINT , Replaced By: A0002684789
212
BALL JOINT UPPER PULL ROD
215
SHIFTING ROD , Replaced By: N900331012339
215
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLY
218
NUT PULL ROD
221
NUT STRAP TO SUPPORT,5 149419
224
JOINT TOP
224
BALL JOINT UPPER PULL ROD
227
JOINT BOTTOM
230
NUT , Replaced By: N910113010000
230
NUT STRAP TO BRACKET
233
BRACKET BRACING,131097,5 S 110 GPA131453,5 K 110 GPA
233
BRACKET SHIFTING ROD, 5 S 110 GPA 131098 5 K 110 GPA 131454
236
SCREW SUPPORT TO SUPPORT
236
SCREW SUPPORT TO FENDER
236
SCREW , Replaced By: N304017008018
239
SPRING WASHER , Replaced By: N000137008212
239
SPRING WASHER STEERING COLUMN BRACKET TO CAB
239
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
242
WASHER EXHAUST MUFFLER TO STRAP
242
WASHER , Replaced By: N000125008443
