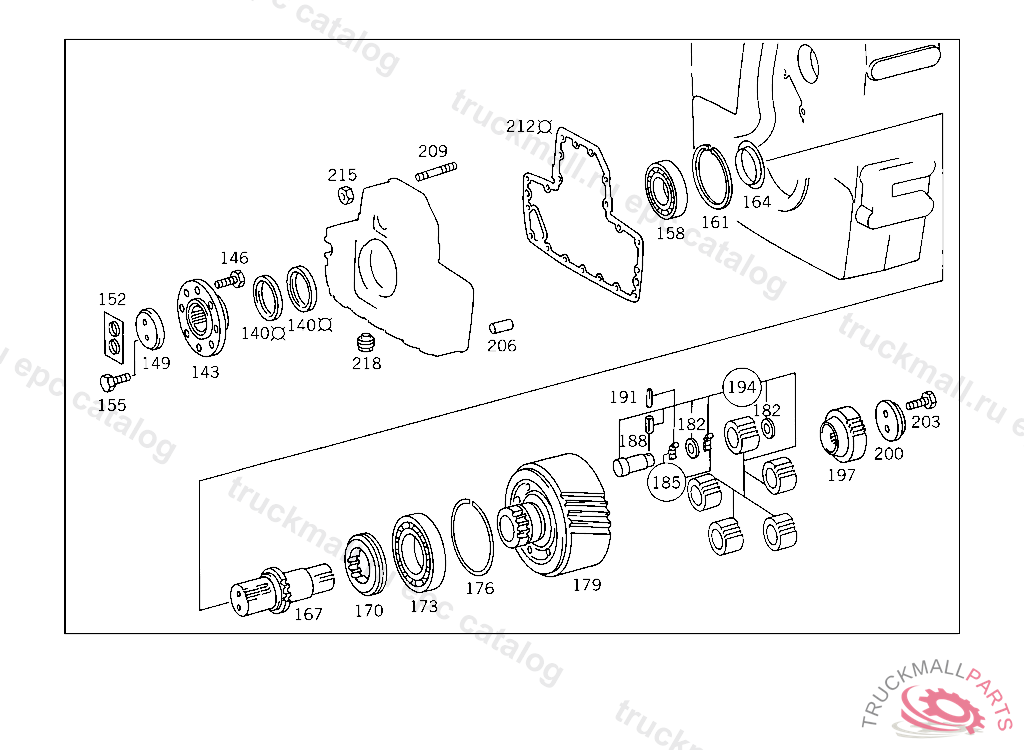

Поз.
Артикул
Описание
140
SEAL RING OUTPUT FLANGE
140
SEAL RING , Replaced By: A0079975747
140
SEAL RING , Replaced By: A0079975847
140
SEAL RING , Replaced By: A0079979047
140
SEAL RING , Replaced By: A0159977547
140
SEAL RING , Replaced By: A0159977547
143
COUPLING FLANGE , Replaced By: A0002600717, +001A0079979047
143
FLANGE FRONT AXLE
146
SCREW , Replaced By: A3609901901
149
THRUST WASHER OUTPUT FLANGE TO OUTPUT SHAFT
152
LOCK , Replaced By: A3859941032
152
LOCK SCREW
155
SCREW BRACKET TO FRAME
158
BALL BEARING FRONT
161
LOCK RING WHEEL HUB
164
STOP RING DRIVE SHAFT,FRONT,066885
167
DRIVE SHAFT FRONT AXLE DRIVE
170
SLIDING COLLAR LONGITUDINAL LOCK
173
CYLINDR. ROLLER BEARING PLANETARY CARRIER
176
SNAP RING MAIN SHAFT,REAR
179
PLANETARY CARRIER TRANSFER CASE
182
THRUST WASHER PLANET GEAR BEARING
185
NEEDLE PLANET GEAR BEARING
188
CLAMPING SLEEVE
191
CLAMPING SLEEVEKNORR
194
PLANET GEAR PARTS KIT
194
GEAR SET , Replaced By: A0002620106
197
GEAR SUN GEAR
200
THRUST WASHER. SEAL RING DRIVEN FLANGE TO DRIVE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
200
THRUST WASHER , Replaced By: A3432620062
203
SCREW , Replaced By: N000933012068
203
SCREW IN FRONT OF POSTERIOR MUFFLER
206
PIN TRANSMISSION CASE REAR COVER
206
PIN BETWEEN HOUSING I AND HOUSING II
209
STUD BOLT (SUPPORT),HYDRAULIC PUMP CONSOLE
212
GASKET SHIFT CASE,BOTTOM
212
GASKET , Replaced By: A0012640180
215
NUT BRACKET TO SUPPORT AND TO END PIECE
215
NUT BATTERY CABLE
218
SCREW PLUG OIL DRAIN, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
