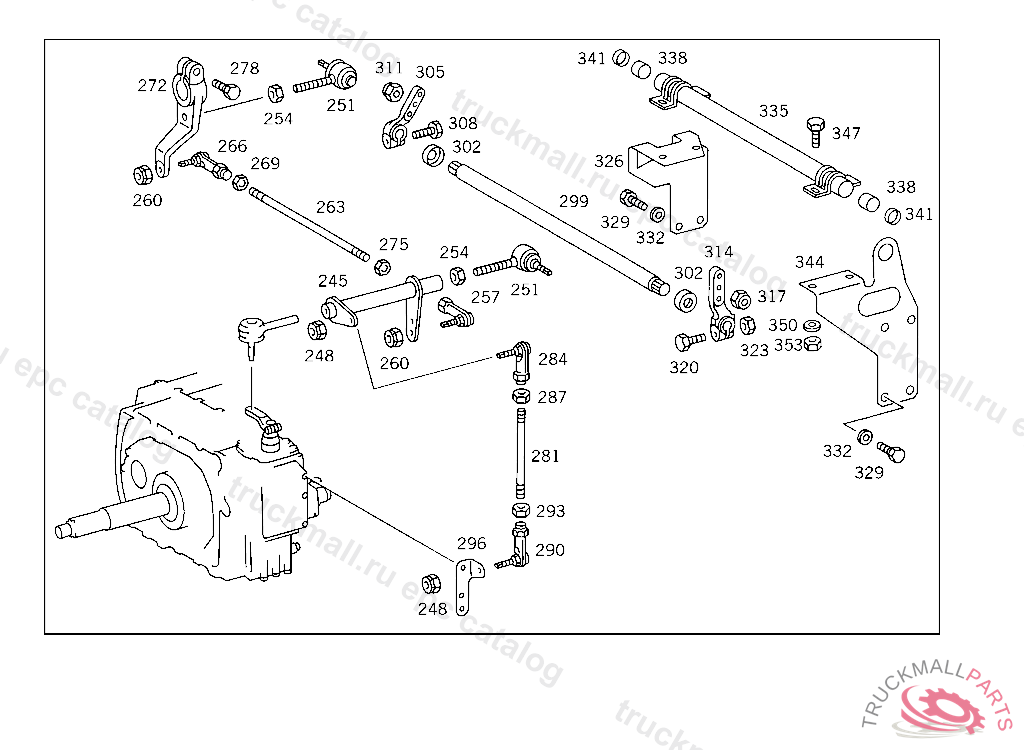

Поз.
Артикул
Описание
245
CONNECTOR LEFT
248
NUT BRACKET TO TELESCOPIC TUBE,K 142858
251
JOINT FROM SHIFTING ROD TO CONNECTOR
254
NUT BRACKET TO SIDE MEMBER,K 035196
254
NUT , Replaced By: N308673014001
257
JOINT TOP
257
BALL JOINT UPPER PULL ROD
260
NUT BRACKET TO TELESCOPIC TUBE,K 142858
263
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLY
266
JOINT BOTTOM
269
NUT STRAP TO SUPPORT,5 149419
272
CONNECTOR RIGHT
275
NUT PULL ROD
278
SCREW MOUNTING TO CONSOLE M 14X35
278
SCREW , Replaced By: N308676014008
281
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLYK 142858
284
BALL JOINT UPPER PULL ROD
284
JOINT TOP
287
NUT PULL ROD
290
JOINT BOTTOM
293
NUT STRAP TO SUPPORT,5 149419
296
BRACKET BRACING
299
SHIFTING SHAFT SHIFTING TUBE
302
PROTECTIVE PLATE SHIFTING TUBE
305
SHIFT LEVER RIGHT SHIFTING SHAFT
308
SCREW ANGLE TO CROSS MEMBER M 10X30
311
HEXAGON NUT
311
NUT , Replaced By: N910113010002
314
SHIFT LEVER SHIFTING TRANSFER, R.H.D.
314
SHIFT LEVER
317
HEXAGON NUT
317
NUT , Replaced By: N910113010002
320
SCREW SHIFTING ROD TO JOINT
323
NUT
323
NUT , Replaced By: N304032010002
326
BEARING BRACKET RIGHT
329
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
332
WASHER SENSOR CABLE TO REAR AXLE,LEFT AND RIGHT
335
SHIFTING TUBE
338
BUSHING , 10/50 UP TO TRANSMISSION 279825,20/60 FROM TRANSMISSION 000001
338
BUSHING , Replaced By: A0002685950
338
BUSHING , Replaced By: A0002685650
341
SEAL RING SHIFTING SHAFT IN SHIFTING TUBE
344
BRACKET LEFT
347
SCREW BRACKET TO SIDE MEMBER
350
WASHER , Replaced By: N000125010532
350
WASHER RADIATOR TO RUBBER MOUNTING
353
NUT BATTERY CABLE
353
NUT BRACKET TO SUPPORT AND TO END PIECE
