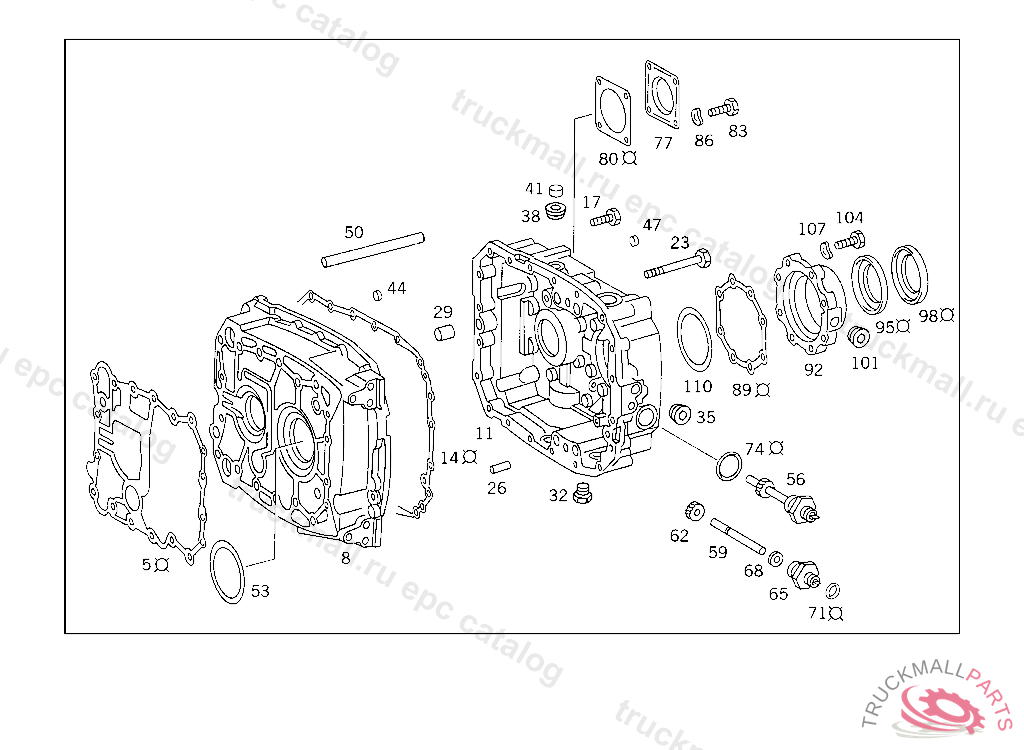

Поз.
Артикул
Описание
5
GASKET , Replaced By: A0002686380
8
HOUSING PLANETARY GEAR CLUSTER
11
HOUSING TRANSMISSION CASE REAR COVER
14
GASKET , Replaced By: A0002686280
14
GASKET TRANSMISSION CASE COVER TO TRANSMISSION CASE
17
SCREW SHIFTING TUBE TO SHIFT LEVER
17
SCREW BRACKET TO SIDE MEMBER
17
SCREW RUBBER MOUNTING TO CONSOLE
17
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
17
SCREW WATER SEPARATOR
23
SCREW BATTERY CASE
23
SCREW MOUNTING TO CONSOLE M 14X55
26
PIN CASE PART I TO CASE PART II
29
PIN TRANSMISSION CASE REAR COVER
32
SCREW PLUG OIL DRAIN, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
35
SCREW PLUG TOP AND BOTTOM
38
PLUG , Replaced By: A3529970032
38
PLUG , 350.004,013 UP TO CHASSIS 12 357727,FROM CHASSIS SEE SPARE PARTS LIST 718
38
PLUG , Replaced By: A0009973435
38
PLUG , Replaced By: A0009973601
41
COVER , Replaced By: A0009977535
41
FILLER CAP , 350.004,013 UP TO CHASSIS 12 357727,FROM CHASSIS SEE SPARE PARTS LIST 718
44
EXPANSION PLUG
47
EXPANSION PLUG
50
PIPE OIL OVERFLOW
53
SPACER WASHER MAINSHAFT, AS REQUIRED 1.10 MM
53
SPACER WASHER OUTPUT SHAFT,AS REQUIRED 1.60 MM
53
SPACER WASHER MAINSHAFT, AS REQUIRED 1.40 MM
53
SPACER WASHER P.T.O., AS REQUIRED 1.30 MM
53
SPACER WASHER P.T.O., AS REQUIRED 1.50 MM
53
SPACER WASHER MAINSHAFT, AS REQUIRED 1.80 MM
53
SPACER WASHER DRIVE SHAFT,AS REQUIRED 1.70 MM
56
SHAFT SPEEDOMETER DRIVE
59
SHAFT SPEEDOMETER DRIVE, FROM CHASSIS 1235728, UP TO CHASSIS SEE SPARE PARTS LIST 350
62
DRIVE GEAR SPEEDOMETER DRIVE
65
BUSHING SPEEDOMETER DRIVE
68
WASHER SPEEDOMETER DRIVE
71
SEAL RING
71
SEAL RING , 350.004,013 UP TO CHASSIS 12 357727,FROM CHASSIS SEE SPARE PARTS LIST 718
74
SEAL RING SPEEDOMETER DRIVE36X42
89
GASKET , Replaced By: A0012640380
92
COVER TRANSMISSION CASE
95
SEAL RING , Replaced By: A0089973347
98
SEAL RING , Replaced By: A0119978547
98
SEAL RING , Replaced By: A0069978847
104
SCREW , Replaced By: N304017010002
110
SPACER WASHER MAINSHAFT, AS REQUIRED 1.40 MM
110
SPACER WASHER OUTPUT SHAFT,AS REQUIRED 1.60 MM
110
SPACER WASHER P.T.O., AS REQUIRED 1.50 MM
110
SPACER WASHER P.T.O., AS REQUIRED 1.30 MM
999
GEAR SET
999
SNAP RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019944135
999
SPACER WASHER MAINSHAFT, AS REQUIRED 1.20 MM
999
SPACER WASHER , Replaced By: A0022642052
