Поз.
Артикул
Описание

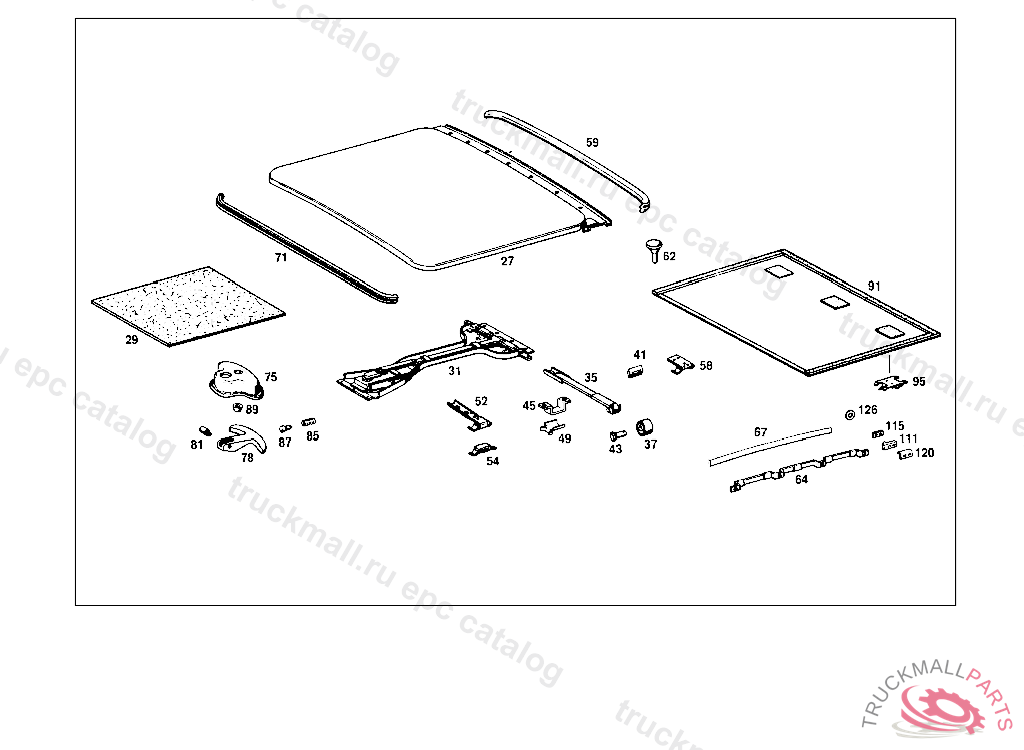

27
SLIDING ROOF PLATE FRONT
29
FOAM PLASTICS 10 MM, ORDER BY THE METER
31
SLIDING ROOF MECHANISM
35
ROD LEFT
37
ROLLER
41
SEAL
43
PIN , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 114.010 071976 114.011 009929 114.015 097251 115.010 089933 115.015 106921 115.110 229818 115.115 114273
45
SHACKLE
49
SPRING
52
ANGLE , Replaced By: A1107800612
52
ANGLE FRONT
54
SLIDING JAW
58
ANGLE REAR, 010,011 FROM CHASSIS 087490,110 FROM CHASSIS 139289
59
SEAL
62
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1159870240
64
RAIL , Replaced By: A1107820524
67
METAL SECTION *** 520 MM, ORDER BY THE METER
71
SEAL
75
RECESS
78
LOCKING HANDLE
81
REPAIR KIT SLIDING ROOF HANDLE MOUNTING PARTS
81
PIN , Replaced By: A1235860078
85
SPRING , Replaced By: A1235860078
85
REPAIR KIT SLIDING ROOF HANDLE MOUNTING PARTS
87
REPAIR KIT SLIDING ROOF HANDLE MOUNTING PARTS
87
PIN , Replaced By: A1235860078
89
RUBBER BUFFER
91
COVERING
95
BRACKET ROOF BOW
111
SLIDE
115
PLATE
120
PLATE LEFT
126
SEAL RING , Replaced By: A1159971040
999
FOAM PLASTICS , Replaced By: A0009833598
999
FOAM PLASTICS , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0009831298
999
FOAM PLASTICS ROOF INTERIOR COVERING,7X80X100, ORDER BY THE METER
999
CLEANER , Replaced By: A0009899271
999
ADHESIVE TAPE 6 MM DIA.50 MM LONG, ORDER BY THE METER
999
CLEANER
999
CLIP DOOR OUTSIDE
999
CLIP , Replaced By: A0019881778
999
ADHESIVE TAPE (SEAL),BETWEEN OUTSIDE REAR PILLAR AND ROOF 560 MM, ORDER BY THE METER
999
PAD , Replaced By: A1107841597
999
SCREW , Replaced By: A1409900436
999
INSULATION BETWEEN REINFORCEMENT AND ROOF PANELLING 40X520X10 MM, ORDER BY THE METER
999
ROD RIGHT
999
PLATE RIGHT
999
RAIL LEFT
999
SEAL , FROM CHASSIS:110.010 155808 110.110 274548 111.010 088651, Replaced By: A0039895485
999
RAIL RIGHT
999
SLIDING RAIL FRONT RIGHT
999
SLIDING RAIL LEFT
999
PAD FRAME PART,CENTRAL 860 MM
999
RUBBER BUFFER
999
SEAL RING
999
SCREW
999
RUBBER RING EMERGENCY LANTERN TO CAB
999
SCREW FUSE BOX TO SIDE MEMBER,5 097182
999
SCREWR & S, M 4X8
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
WASHER
999
SCREW SHUT-OFF VALVE TO BRACKET
999
SCREW COVER PLATE TO BRACKET
999
SCREW
999
CLAMPING SLEEVE
999
TOOTHED WASHER COVER TO COVERING,K 093739
999
TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733
999
TOOTHED WASHER MASKED STOP LAMP
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SCREW ELECTRIC CABLE TO HORN
999
SCREW , Replaced By: N000000001933
999
SCREW
999
SCREW
999
SCREW
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW PUMP TO BRACKET
999
CLAMP CABLE HARNESS MOUNTING 22 MM
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
