Mercedes N912004010102 - КОЛЬЦО ПРУЖИННОЕ

VL 3/8-6,5 730.034

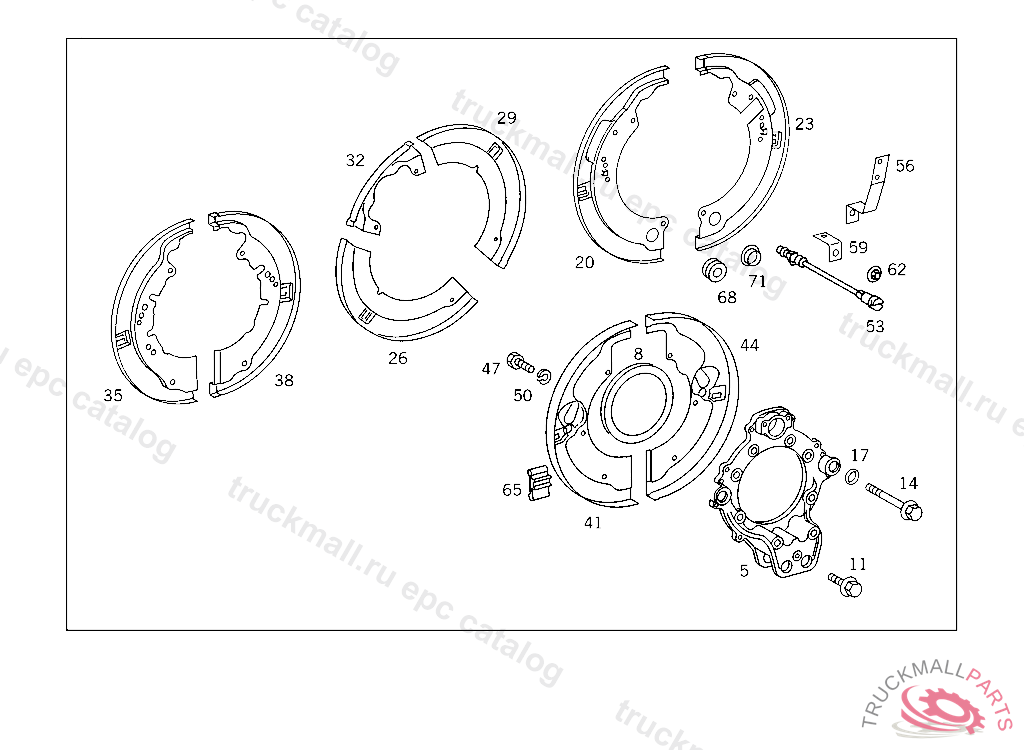

33 FRONT AXLE - 250 AXLE CASING,STEERING,KNUCKLES,TIE ROD IL. 3

Поз.
Артикул
Описание
5
A3014230006
BRAKE ANCHOR ,2 169401
5
A3604211006
BRAKE ANCHOR ,2 169400, Replaced By: A3014230006, +002A3819940009
8
A3464210022
OIL BAFFLE (BRAKE ANCHOR)
11
A3469900904
SCREW , Replaced By: A3469902604
11
A3859900204
SCREW , Replaced By: A3469900904
11
A3469902604
SCREW BEARING BRACKET TO BRAKE ANCHOR
11
A3469904204
SCREW BRAKE ANCHOR TO AXLE CASING
41
A3604213620
PROTECTIVE PLATE WITHOUT BEAD AND WITHOUT BRAKE LINING WEAR INDICATOR
44
A3604213720
PROTECTIVE PLATE WITH BEAD, WITHOUT BRAKE LINING WEAR INDICATOR
47
N304017010027
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
50
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
65
A3464210011
PLUG PROTECTIVE PLATE
