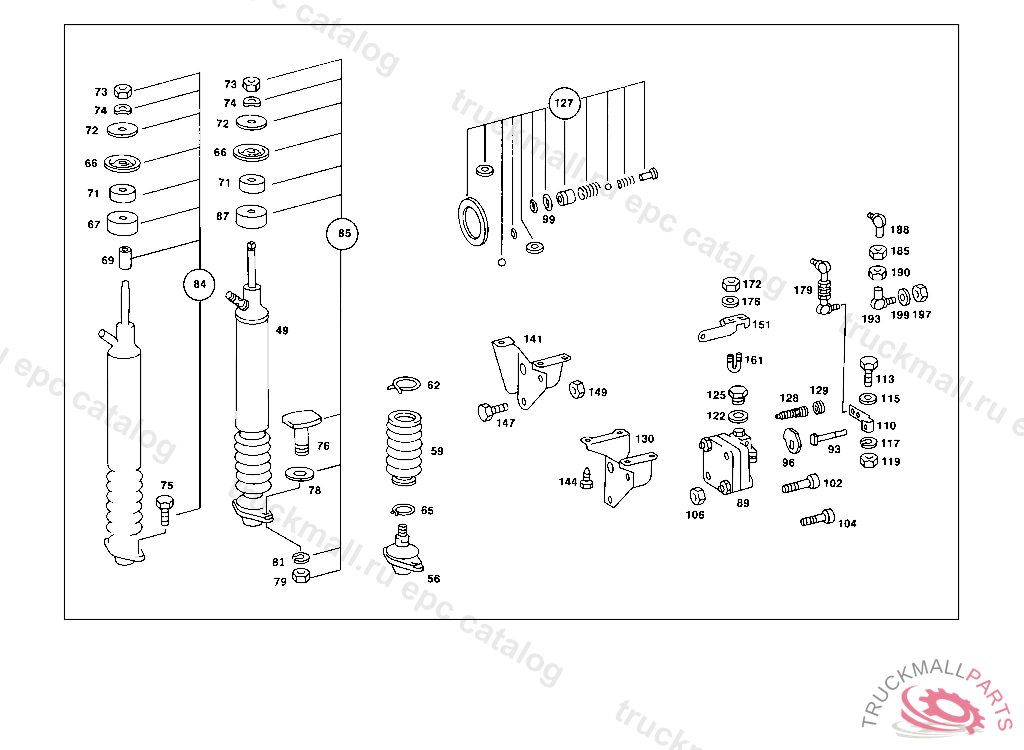

Поз.
Артикул
Описание
49
HYDROPN. SPRING LEG , ONLY USED WITH H.D. SPRINGS
49
HYDROPN. SPRING LEG REAR
49
HYDROPN. SPRING LEG , USED WITHOUT H.D. SPRINGS
49
HYDROPN. SPRING LEG ,107.022 009323
49
HYDROPN. SPRING LEG , Replaced By: A1233201113
49
HYDROPN. SPRING LEG , Replaced By: A1233201013
49
HYDROPN. SPRING LEG , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS: 116.020 190502 024,025 126172 028,029 049126 032,033 085788, Replaced By: A1163204613
49
HYDROPN. SPRING LEG , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS: 107.022 008259 023 013907 024 029938 116.020 121972 024,025 156800 028,029 055258 032,033 100422, Replaced By: A1163204513
49
HYDROPN. SPRING LEG , Replaced By: A1163203113
49
HYDROPN. SPRING LEG , Replaced By: A1163204613
49
HYDROPN. SPRING LEG , Replaced By: A1233201113
49
HYDROPN. SPRING LEG , Replaced By: A1233201113
49
HYDROPN. SPRING LEG , Replaced By: A1233201013
49
HYDROPN. SPRING LEG , Replaced By: A1233201113
49
HYDROPN. SPRING LEG , Replaced By: A1233201013
49
HYDROPN. SPRING LEG , Replaced By: A1163203113
56
JOINT , Replaced By: A1163201328
56
JOINT
59
BOOT
59
BOOT , Replaced By: A1153280392
62
WIRE RING
65
WIRE RING BOTTOM
66
RETAINER HYDROPNEUMATIC SPRING LEG TO FRAME
66
RETAINER
66
RETAINER , Replaced By: A1163260067
66
RETAINER , Replaced By: A1153260497
67
RUBBER BUFFER , Replaced By: A1143260068
67
RUBBER BUFFER HYDROPNEUMATIC SPRING LEG TO FRAME
69
SPACER TUBE
71
RUBBER BUFFER
72
WASHER REAR SHOCK ABSORBERS
72
WASHER , Replaced By: A2023260076
73
NUT , Replaced By: N308673010000
73
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
74
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
74
SPRING WASHER STEERING COLUMN BRACKET TO CAB
75
SCREW HYDROPNEUMATIC SPRING LEG TO REAR AXLE
75
SCREW , Replaced By: N910106010031
75
SCREW END PIECE TO EXHAUST PIPE M 10X25
76
SCREW , Replaced By: A1153520171
76
SCREW
78
WASHER
78
WASHER , Replaced By: A1073520676
79
NUT AIR CLEANER ELEMENT
81
SNAP RING
84
REPAIR KIT HYDROPNEUMATIC SPRING LEG MOUNTING
84
REPAIR KIT HYDROPNEUMATIC SPRING LEG MOUNTING, TO TRANSVERSE CONTROL ARM
84
REPAIR KIT , Replaced By: A1143200444
84
REPAIR KIT. RUBBER BUFFER , Replaced By: A1263200044
85
REPAIR KIT , Replaced By: A1263200144
85
REPAIR KIT , Replaced By: A1075860532
85
REPAIR KIT HYDROPNEUMATIC SPRING LEG MOUNTING, TO COUPLED TRANSVERSE CONTROL ARM
87
RUBBER BUFFER HYDROPNEUMATIC SPRING LEG TO FRAME
89
VALVE , Replaced By: A1233200158
89
VALVE , Replaced By: A1153200258
89
VALVE HEIGHT CONTROL VALVE
93
SHAFT
96
VALVE PART
99
SEAL RING
102
SCREW
102
SCREW TO SECURE SET NUT M 10X1.5X45
104
SCREW FRONT WHEEL HUB TO STEERING KNUCKLE
104
SCREW BRACKET TO FRAME SIDE MEMBER
104
SCREW
104
SCREW , Replaced By: N304017010036
104
SCREW , Replaced By: N000912010218
104
SCREW , Replaced By: N000912010220
106
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
110
LEVER
110
LEVER , Replaced By: A1073280027
113
SCREW OIL LINE TO CRANKCASE
113
SCREW CAB FLOOR COVERING M 6X25
115
WASHER BRACKET TO HEAT SHIELD
117
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
119
NUT BATTERY MOUNTING
119
NUT CYLINDER TO BRACKET TO0002902112
122
SEAL RING SCREW PLUG
125
SCREW PLUG
127
REPAIR KIT HEIGHT CONTROL VALVE
128
BLEEDER VALVE OIL DRAIN
129
PROTECTIVE CAP ,5 962906
129
PROTECTIVE CAP , Replaced By: A0004217187
130
BRACKET HEIGHT CONTROL VALVE, 114.010 065703 EXCEPT FOR 065682,065684,065685,065687. 114.05,015 084209 EXCEPT FOR 084182 114.021 006516 EXCEPT FOR 006514 114.022 016436
130
BRACKET HEIGHT CONTROL VALVE TO FRAME
130
BRACKET HEIGHT CONTROL VALVE
130
BRACKET HEIGHT CONTROL VALVE TO FRAME
141
BRACKET HEIGHT CONTROL VALVE
144
SHEET METAL SCREW VALVE TO WINDOW SILL
147
SCREW SHIFTING ROD TO JOINT
149
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
151
LEVER
151
LEVER
151
LEVER
151
LEVER
161
CLAMP
161
CLAMP , Replaced By: A1163260226
172
NUT TACHOGRAPH TO BRACKET
176
SPRING WASHER ALTERNATOR CONNECTION D+
176
LOCK WASHER BRACKET TO STEERING COLUMN END
179
ROD FROM TORSION BAR TO SELF-LEVELLING UNIT
179
ROD , EXHAUST STOCK OF OLD PARTS FIRST UP TO CHASSIS 123.020 101464 000,023 123897 120 142720 123 104582 126 053331 130 127658, Replaced By: A1233201489
179
ROD , EXHAUST STOCK OF OLD PARTS FIRST UP TO CHASSIS 116.025 131822 123.026 063485 030 025417 033 050878, Replaced By: A1233201489
179
ROD , Replaced By: A1143200089
179
ROD , Replaced By: A1143200089
179
ROD , EXHAUST STOCK OF OLD PARTS FIRST UP TO CHASSIS 116.025 131822 123.026 063485 030 025417 033 050878, Replaced By: A1233201489
185
NUT CYLINDER TO BRACKET TO0002902112
185
NUT BATTERY MOUNTING
185
NUT BALL PIVOT TO LEVER
188
JOINT , Replaced By: A1233280063
188
JOINT , Replaced By: A1143280263
188
JOINT R.H. THREAD
190
NUT L.H. THREAD
193
JOINT , Replaced By: A1233280163
193
JOINT , Replaced By: A1143280163
193
JOINT L.H. THREAD
197
NUT BALL PIVOT TO LEVER
197
NUT , Replaced By: N913004006001
197
NUT CYLINDER TO BRACKET TO0002902112
197
NUT BATTERY MOUNTING
197
NUT PUMP TO BRACKET
199
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
199
SPRING WASHER LICENSE PLATE TO BRACKET
999
UNION SCREW ,B 688751
999
SCREW. RETAINING SCREW
999
SHOCK ABSORBER , Replaced By: A1263200431
999
SHOCK ABSORBER
999
SHOCK ABSORBER , Replaced By: A1263200431
999
SHOCK ABSORBER REAR, Replaced By: A1263261000
999
SHOCK ABSORBER REAR
999
SHOCK ABSORBER REAR
999
NUT , 126.021 009061 022,023 034332 032,033 016062 036,037 010573
999
SHOCK ABSORBER
999
SHOCK ABSORBER , Replaced By: A1233200431
999
SHOCK ABSORBER
999
SHOCK ABSORBER
999
SHOCK ABSORBER , Replaced By: A1233200231
999
SHOCK ABSORBER
999
RETAINER
999
SHOCK ABSORBER , Replaced By: A1233200231
999
SHOCK ABSORBER
999
LINE , Replaced By: A1233202672
999
SHOCK ABSORBER REAR
999
SHOCK ABSORBER
999
RUBBER RING
999
LINE FROM OIL RESERVOIR TO OIL PIPE AT OIL PUMP, 116.020 071390 ALSO INSTALLED ON 071392,071396,071400,071402,071416. 116.024,025 068051 ALSO INSTALLED ON 068099,068265 EXCEPT FOR 055714,055888,057629,058694,066624,066628,066632,066803,067088,067089,067410,067542,067578-067580, 067860-067862,067865,067924,067928-067943,067945,067948,067952,067953,067955-067969,067971-068001, 068005,068007-068019,068024,068026-068029,068031-068033,068035-068048,068050.
999
LINE , EXHAUST STOCK OF OLD PARTS FIRST UP TO CHASSIS 116.020 061808 107.024 021804, Replaced By: A1163289444
999
SHOCK ABSORBER
999
SHOCK ABSORBER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE 116.020,024,025,028,029, Replaced By: A1163200431
999
SHOCK ABSORBER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE 116.032,033, Replaced By: A1163200931
999
SHOCK ABSORBER
999
SHOCK ABSORBER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE 116.020,024,025,028,029, Replaced By: A1163200431
999
SHOCK ABSORBER
999
REAR SPRING
999
REAR SPRING
999
REAR SPRING
999
CLAMP
999
SHOCK ABSORBER REAR
999
RUBBER BUFFER SHOCK ABSORBER TO FRAME
999
SHOCK ABSORBER , Replaced By: A1153200231
999
SHOCK ABSORBER REAR
999
RETAINER , Replaced By: A1163260067
999
DUST CAP
999
REAR SPRING
999
DAMPING STRIP , Replaced By: A0009877770
999
RUBBER PAD , Replaced By: A1263280181
999
SHOCK ABSORBER
999
REAR SPRING
999
SHOCK ABSORBER
999
CLIP
