Поз.
Артикул
Описание

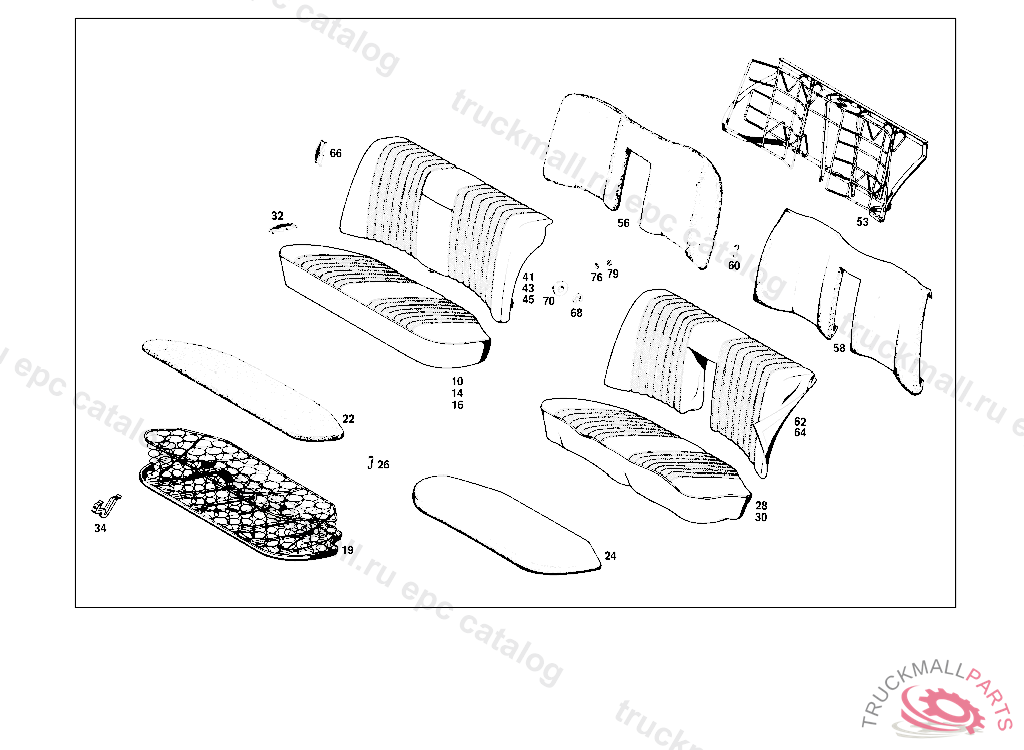

10
REAR SEAT CUSHION
14
REAR SEAT CUSHION
19
CUSHION FRAME , FROM CHASSIS: 015 250811 017 038250 110 440114 114 006350 115 266006 117,119 075815
22
PAD , Replaced By: A1159241314
26
CLIP COVER TO PAD
28
COVER
30
COVER
34
BRACKET
41
BACKREST
43
BACKREST
53
BACKREST FRAME , 034415
56
PAD , Replaced By: A1159241516
60
CLIP COVER TO PAD
62
COVER
64
COVER
66
CLIP
68
LOCK PLATE CONTROL SHAFT TO CAB
70
SUPPORT
76
WASHER
79
NUT BALL PIVOT TO LEVER
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW
999
COVER , Replaced By: A1159240916
999
COVER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 114.010 073909 114.011 010273 114.015,017 101991, Replaced By: A1159241114
999
REAR SEAT CUSHION
999
BACKREST
999
CUSHION FRAME , Replaced By: A1159201022, +001A1159200150
999
COVER
999
SEAT CUSHION (COMPLETE,BUT LESS COVER)
999
COVER
999
REAR SEAT BACKREST , Replaced By: A1159200930
999
REAR SEAT BACKREST , Replaced By: A1159200830
999
SEAT CUSHION , Replaced By: A1159201520
999
CUSHION FRAME , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 010 091777 015 112060 110,112 234177 115 118981, Replaced By: A1159200822
999
SEAT CUSHION , Replaced By: A1159201420
999
BACKREST LESS COVER
999
COVER
999
COVER
999
BACKREST
999
REAR SEAT CUSHION
