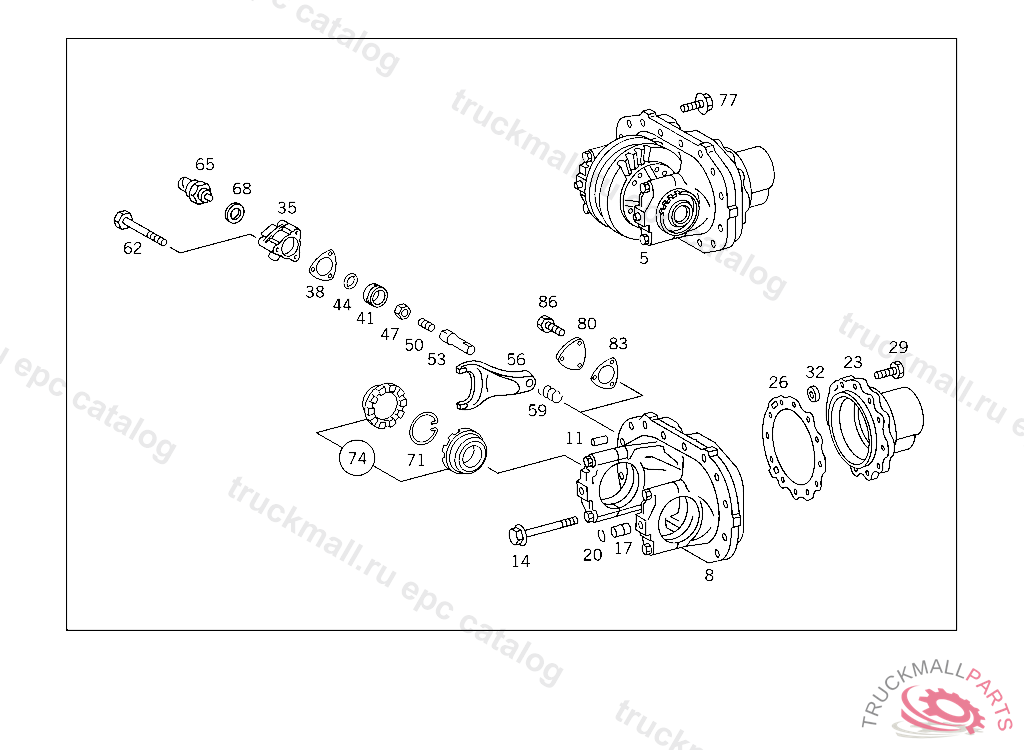

Поз.
Артикул
Описание
5
DIFFERENTIAL GEAR LESS FLANGE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
AXLE HOUSING
11
CYLINDRICAL PIN
11
CYLINDRICAL PIN , Replaced By: N000007008101
14
SCREW BEARING COVER TO AXLE HOUSING
17
PIN AXLE HOUSING
20
SNAP RING
23
HOUSING. OIL COLLECTOR (PINION HOUSING)
23
HOUSING , Replaced By: A3553530807, +001N000906020003
26
SPACER WASHER PINION HOUSING,AS REQUIRED 0.35 MM, NOT USED
26
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
26
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
26
SPACER WASHER PINION HOUSING,AS REQUIRED 1.50 MM
26
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
26
SPACER WASHER PINION HOUSING,AS REQUIRED 0.20 MM
26
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
29
SCREW APPARATUS SUPPORT TO FRAME
32
SEAL RING PINION HOUSING TO AXLE HOUSING
77
SCREW DIFFERENTIAL GEAR TO REAR AXLE CASING M 12X40
77
SCREW BRACKET TO BRACKET
80
COVER
83
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
86
SCREW PIPE CLAMP
