Mercedes
AXLE
HD 7/2 DSG-10
740.034
35 REAR AXLE

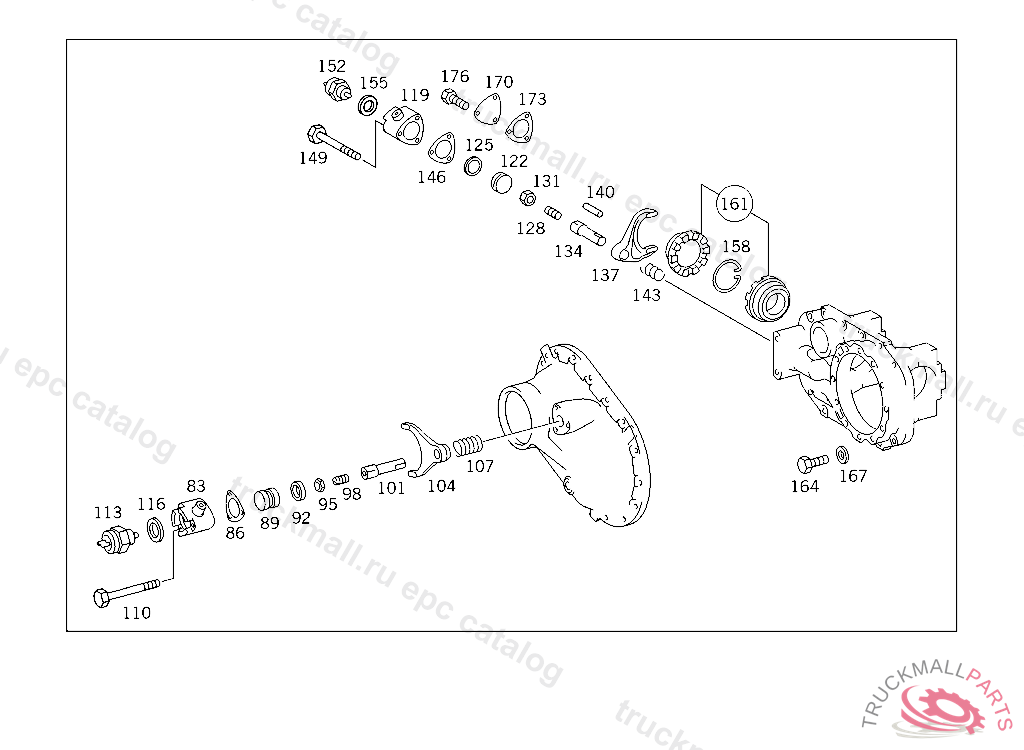

400 DIFFERENTIAL GEAR,THROUGH DRIVE, DIFFERENTIAL LOCK IL. 2

Mercedes A0015458214 - Датчик блокировки 641959 M 18 x 1,5 / M 27 x 1 / Starkmeister

HD 7/2 DSG-10 740.034

35 REAR AXLE - 400 DIFFERENTIAL GEAR,THROUGH DRIVE, DIFFERENTIAL LOCK IL. 2

Поз.
Артикул
Описание
83
A3463530408
COVER , Replaced By: A3463530655
86
A3553510080
GASKET , Replaced By: A3553530280
86
A3553510180
GASKET , Replaced By: A3553530380
86
A3553530380
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
92
A0019972245
SEAL RING SHIFTING CYLINDER
95
N304035010000
NUT
98
N000551010010
HEADLESS SETSCREWM 10X20,232174
98
N000551010020
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
101
A3463530235
SHAFT ,232174, Replaced By: A3463530535, +001N000551010006
101
A3463530535
SHAFT SHIFTING ROD,232175
104
A3553530234
SHIFTING FORK LONGITUDINAL DIFFERENTIAL LOCK, MAN AXLE
107
A3469930901
SPRING SHIFTING FORK
113
A0005454214
SWITCH , Replaced By: A0015458214
113
A0015454714
SWITCH , Replaced By: A0015455709
113
A0015458214
SWITCH
116
A3469970545
SEAL RING SWITCH, UP TO REAR AXLE 009640
116
N007603018100
SEAL RING SWITCH TO CASE COVER
119
A3463530108
COVER SHIFTING CYLINDER,009640
119
A3463530155
CYLINDER , Replaced By: A3463530655, +003N000931008278, +001N007603018100
119
A3463530408
COVER , Replaced By: A3463530655
119
A3463530508
COVER , Replaced By: A3463530455
119
A3463530655
CYLINDER TRANSVERSE DIFFERENTIAL LOCK
122
A3463530157
PISTON TRANSVERSE DIFFERENTIAL LOCK
122
A3463530357
PISTON TRANSVERSE DIFFERENTIAL LOCK
125
A0019972245
SEAL RING SHIFTING CYLINDER
128
N000551010006
HEADLESS SETSCREWM 10X25,232175
128
N000551010010
HEADLESS SETSCREWM 10X20,232174
131
N000936010008
NUT BRACKET TO EXHAUST PIPE BRACKET
134
A3463530235
SHAFT ,232174, Replaced By: A3463530535, +001N000551010006
134
A3463530535
SHAFT SHIFTING ROD,232175
137
A3553530334
SHIFTING FORK ,167955, Replaced By: A3553531334
137
A3553531334
SHIFTING FORK DIFFERENTIAL LOCK
140
N000007010309
CYLINDRICAL PIN DIFFERENTIAL LOCK,167955
143
A3469930901
SPRING SHIFTING FORK
146
A3553530280
GASKET DIFFERENTIAL LOCK TO 355 353 02 80
149
N000931008246
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
149
N304014008001
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
149
N304014008004
SCREW , Replaced By: N304014008001
149
N304017008028
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
152
A0005454214
SWITCH , Replaced By: A0015458214
152
A0015454714
SWITCH , Replaced By: A0015455709
152
A0015458214
SWITCH
155
A3469970545
SEAL RING SWITCH, UP TO REAR AXLE 009640
155
N007603018100
SEAL RING SWITCH TO CASE COVER
158
A3463350073
LOCK FOLLOWER
161
A3553500011
DIFFERENTIAL LOCK PARTS KIT
161
A3553530536
FOLLOWER , Replaced By: A3553500011
161
A3553530636
FOLLOWER , Replaced By: A3553500011
164
A3559900604
SCREW BRACKET TO BRACKET
164
A3559901204
SCREW DIFFERENTIAL GEAR TO REAR AXLE CASING M 12X40
164
N914125012404
SCREW , MAN AXLE, Replaced By: A3559901204
167
A3463340059
SEAL RING STEERING ARM TO STEERING KNUCKLE
173
A3553510180
GASKET , Replaced By: A3553530380
173
A3553530380
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
999
A3553500024
WHEEL HUB DRIVE , MAN AXLE
999
A3553500124
WHEEL HUB DRIVE , MAN AXLE
999
A3553500126
SIDE GEAR , MAN AXLE
999
A3553530214
DIFFERENTIAL PINION , MAN AXLE
999
A3553530515
SIDE GEAR , Replaced By: A3553500124
