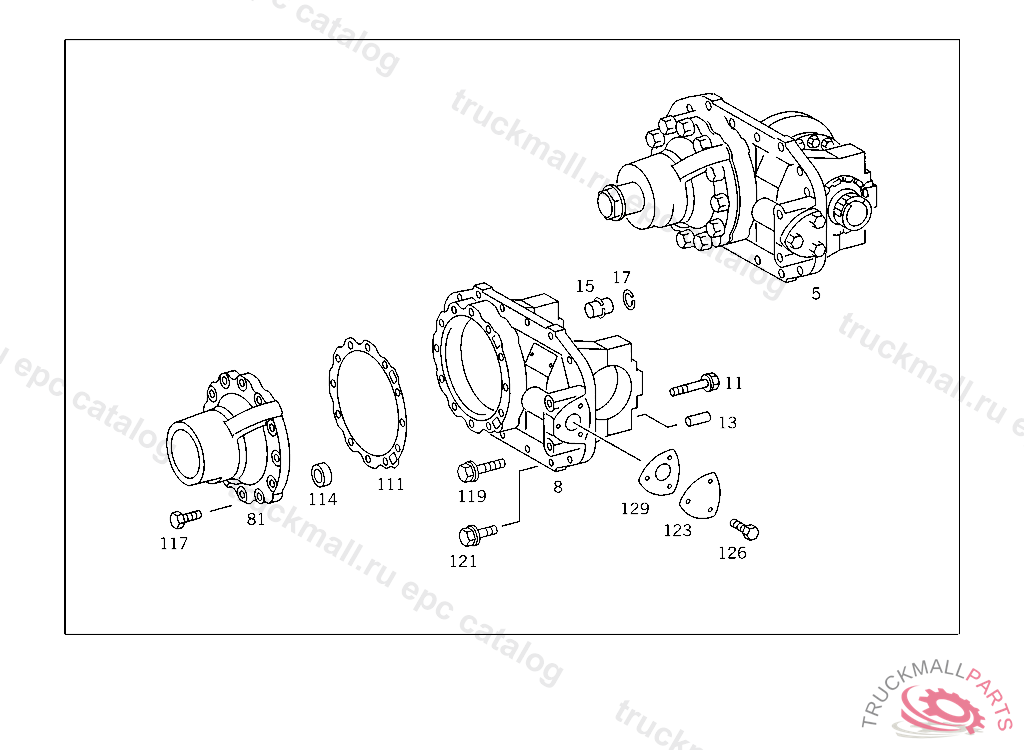

Поз.
Артикул
Описание
5
DIFFERENTIAL GEAR LESS FLANGE
8
AXLE HOUSING
11
SCREW BEARING COVER TO AXLE HOUSING
13
CYLINDRICAL PIN , Replaced By: N000007008101
15
PIN AXLE HOUSING
17
SNAP RING
81
HOUSING. OIL COLLECTOR (PINION HOUSING)
111
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
111
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
111
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
111
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
114
SEAL RING PINION HOUSING TO AXLE HOUSING
117
SCREW APPARATUS SUPPORT TO FRAME
119
SCREW , Replaced By: A0069908101
121
SCREW BRACKET TO BRACKET
123
COVER
126
SCREW PIPE CLAMP
126
SCREW , Replaced By: N304017008021
129
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
