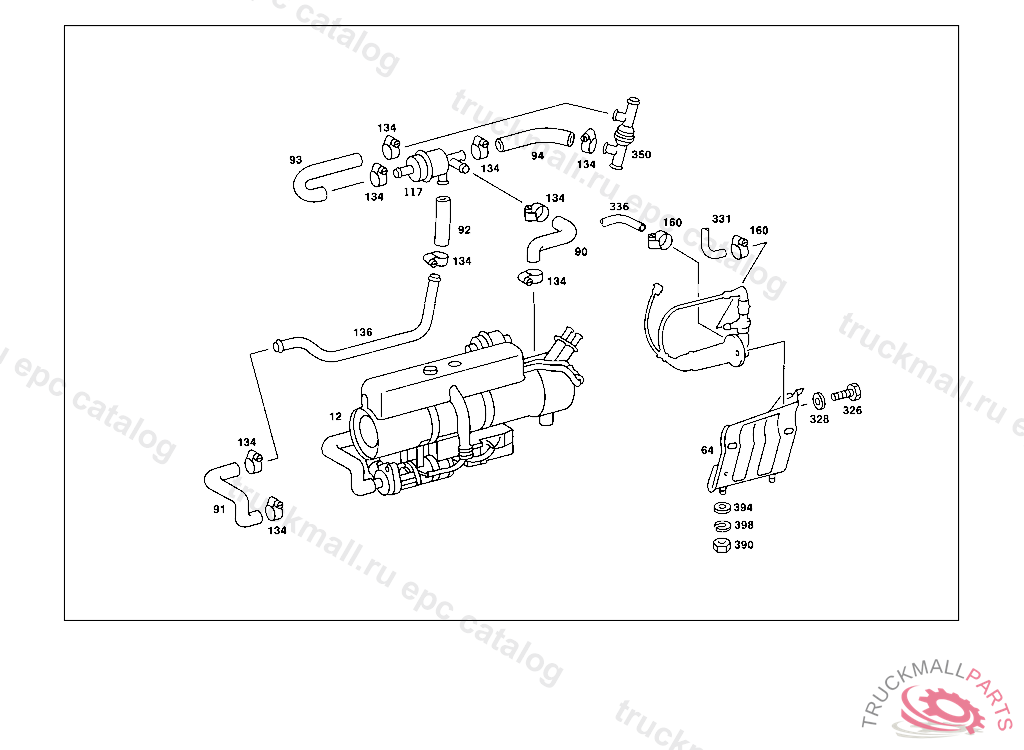

Поз.
Артикул
Описание
12
HEATING UNIT RANGE OF DELIVERY
64
BRACKET HEATER UNIT
90
HOSE FROM HEATING WATER PIPE TO THERMOSTAT
91
HOSE FROM PUMP TO HEATING WATER PIPE
92
HOSE FROM HEATING WATER PIPE TO THERMOSTAT
93
HOSE FROM CHECK VALVE TO THERMOSTAT
94
HOSE FROM CHECK VALVE TO THERMOSTAT
117
THERMOSTAT ELEMENT
117
THERMOSTAT ELEMENT , Replaced By: A0032033475
134
HOSE CLAMP LINE MOUNTING
134
CLAMP , Replaced By: A0059970190
136
CLAMP , Replaced By: A1109950401
136
CLAMP FUEL LINE TO BRACKET
136
CLAMP
160
CLAMP LINE MOUNTING
326
SCREW COVER PLATE TO COVER PLATE M 6 X 12
326
SCREW , Replaced By: N304017006018
328
WASHER BRACKET TO HEAT SHIELD
331
BRACKET FUEL PUMP
336
HOSE , ORDER BY THE METER
336
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004763726
336
HOSE , Replaced By: A1074763726
336
HOSE , Replaced By: A1074763126
350
VALVE
390
NUT CYLINDER TO BRACKET TO0002902112
390
NUT BATTERY MOUNTING
394
WASHER COMPRESSED AIR LINE TO BRACKET
394
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
398
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
CLAMP , Replaced By: A0059970190
999
COMBINATION BOLT CABLE TO FUSE BOX
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
SHEET METAL SCREW BRACKET TO CAB
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW COVERING TO HOUSING
999
NUT CABLE TO ALTERNATOR,4 477130
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
HOSE , Replaced By: A1079971482
999
BRACKET CABLE CONNECTOR
999
INSULATING HOSE
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 02 98, ONLY FOR USE WITH RANGE OF DELIVERY OF HEATER
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 02 98, ONLY FOR USE WITH RANGE OF DELIVERY OF HEATER
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT , Replaced By: A1235000298
999
HEATING UNIT ACCESSORY KIT,FOR SUBSEQUENT INSTALLATION TO 123 500 00 98
999
HEATING UNIT RANGE OF DELIVERY TO 123 500 15 98,123 500 16 98
999
HEATING UNIT RANGE OF DELIVERY
999
CABLE HARNESS FROM SUPPLY UNIT TO PUMP
999
BRACKET HEATER UNIT
999
LINE LINE TO FIRE WALL
999
CLAMP HOSE TO HOSE 20 MM
999
CLAMP , Replaced By: A0004760436
999
HOSE FROM INTAKE MANIFOLD TO WARM-UP REGULATOR
999
HOSE220 MM, ORDER BY THE METER
999
LINE
999
LINE
999
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
999
PLUG
999
LOOM TIE , Replaced By: A0019974390
999
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
LOOM TIE , Replaced By: A0019974390
999
FUSE25 A
999
FUSE FUSE BOX A 25
999
FUSEA16
999
RUBBER MAT , 116.020 121073 116.024,025 153750 116.028,029 054878 116.032,033 097700 116.036 007063 123.020 130273 123.000,023 164267 123.003,026,028 081970 123.030 028220 123.007,033 066427 123.043 016041 123.050 003504 123.053 017763 123.083 005594 123.086 004314 123.093 005320
999
BRACKET LINE MOUNTING 11 MM
