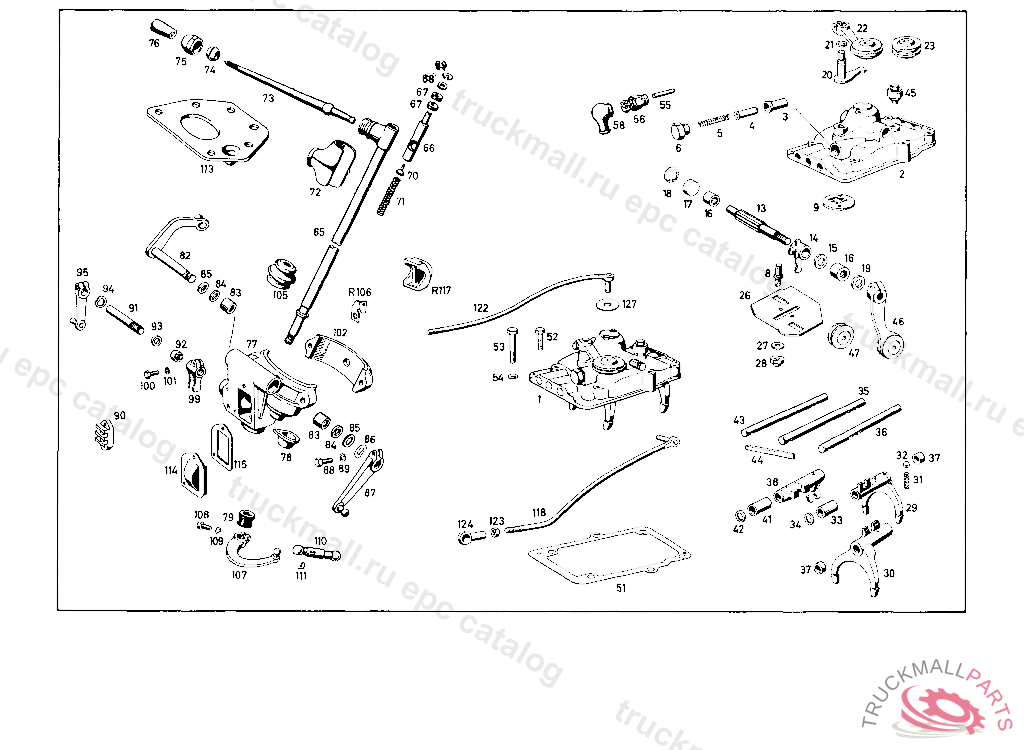

Поз.
Артикул
Описание
1
TRANSMISSION CASE COVER
2
TRANSMISSION CASE COVER , 000,001,004,010,016,100,101,104,110,116 FROM TRANSMISSION 040899-490815, 002,003,005,011,017 UP TO TRANSMISSION 021530, Replaced By: A1112603114, +001A1112610066
3
BUSHING INTERLOCK PIN, 184087, 309.030-035,051-059 192298, 309.050 182066, 309.1
4
INTERLOCK PIN REVERSE SPEED, 184087, 309.030-035,051-059 192298, 309.050 182066, 309.1556499
5
SPRING
6
SCREW PLUG
8
INTERLOCK PLUG , Replaced By: A3442657044
9
DETENT PLATE
13
SHIFTING SHAFT , Replaced By: A3192680532
14
SHIFTING FINGER
15
SPACER WASHER
16
NEEDLE BEARING
17
EXPANSION PLUG
18
LOCK RING
19
SEAL RING
20
SELECTOR FINGER AT TRANSMISSION HOUSING COVER TOP FROM TRANSMISSION 7504919
21
SEAL RING
22
LEVER
23
BUSHING , 000421
26
GUIDE PLATE , 040899
27
WASHER DETENT PLATE TO COVER, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
28
NUT , FROM TRANSMISSION
29
SHIFTING FORK 1ST AND 2ND SPEED
30
SHIFTING FORK , Replaced By: A3092650102
31
SPRING
32
BALL
33
SPACER TUBE
34
SPACER RING , Replaced By: A1119903440
35
SHIFTING ROD 1ST AND 2ND SPEED
36
SHIFTING ROD , Replaced By: A3772650105
37
SPACER TUBE
38
LEVER REVERSE SPEED
41
SPACER TUBE
42
SPACER RING , Replaced By: A1119903440
43
SHIFTING ROD REVERSE SPEED
44
KEY
45
BREATHER TRANSFER CASE
46
LEVER
47
BUSHING , 000421
51
GASKET
52
HEX, HEAD. SCREW
53
HEX. HEAD. SCREW TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
54
SPRING WASHER GROUND CABLE TO TRANSMISSION
55
PIN
56
SWITCH BACK-UP LIGHT SWITCH,247075
58
BOOT THREE-PIN PLUG CONNECTION
65
SHIFT TUBE
66
GUIDE PIN FOR SHIFTING TUBE, TOP FROM CHASSIS 001693
67
SEAL RING
68
WASHER ,000252
69
LOCK
70
PIN
71
SPRING
72
BOOT , 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.36,002,003,005,011,017 UP TO CHASSIS 034216 EXCEPT FOR SEEFOOTN.37 AND FOOTN.38
73
SHIFT LEVER , 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.36,002,003,005,011,017 UP TO CHASSIS 034216 EXCEPT FOR SEEFOOTN.37 AND FOOTN.38
74
RUBBER PAD
75
COVER
76
GEARSHIFT LEVER KNOP , Replaced By: A1802680540
77
MOUNTING BODY WITH SLEEVE
78
SLEEVE. BOOT FOR STEERING PASSAGE
79
BUSHING
82
INTERMEDIATE SHAFT WITH BALL PIN
83
NEEDLE BEARING
84
SEALING RING FOR SHIFTING SHAFT
85
WASHER TO MOUNTING BODY
86
SPRING WASHER FOR INTERMEDIATE SHAFT
87
INTERMEDIATE LEVER ON INTERMEDIATE SHAFT
88
SCREW TORSION BAR TO FRAME FLOOR UNIT
89
LOCK WASHER , 010 UP TO REAR AXLE 009905,012 UP TO REAR AXLE 026069
90
CABLE CONNECTOR BIPOLAR, ON LP1313(352)UP TO CHASSIS 601003 ALSO INSTALLED ON 601006,601009,601010,601017,601018,601024 WITH THE EXCEPTION OF 600917,60 0992,600993,600996-999,601001,601002 CONTINUED ON 009
91
SHAFT
92
NEEDLE BEARING
93
SEAL RING
94
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
95
LEVER
99
LEVER
100
HEX. HEAD. SCREW COMPRESSOR TO SUPPORT
101
LOCK WASHER ANGLE DRIVE TO BRACKET
102
COVER FOR MOUNTING BODY
105
SLEEVE FOR SHIFT TUBE
106
BRACKET FOR RELEASE SPRING AT COVER, MOUNTING BODY
107
LEVER AT SHIFTING TUBE, BOTTOM
108
SCREW TORSION BAR TO FRAME FLOOR UNIT
109
LOCK WASHER , 010 UP TO REAR AXLE 009905,012 UP TO REAR AXLE 026069
110
KUGELPFANNE 10. BALL SOCKET FOR CONNECTION OF LEVER TO SHIFTING TUBE AND LEVER, INTERMEDIATE SHAFT
111
SECURING CLIP. CIRCLIP
113
SEALING SLEEVE. SEAL BOOT
114
DUST CAP FOR MOUNTING BODY
115
GASKET FOR DUST SHIELD
117
RUBBER PROTECTIVE CAP FROM CHASSIS 65 01347
118
SHIFTING ROD
122
SELECTOR ROD , UP TO CHASSIS 024676 180 DB
123
HEX. NUT, CHROMIUM-PLATED M 10 DIN 70616 VERCHROMT FOR SHIFT ROD AND SELECTOR ROD
124
BALL SOCKET
127
WASHER , 000421
999
BALL SOCKET FOR CONNECTING LEVER AT SHIFTING TUBE AND LEVER, INTERMEDIATE SHAFT
999
NEEDLE BEARING, HK 10. NEEDLE BEARING BK 10 FOR SELECTOR LEVER SHAFT
999
BALL SOCKET FOR SHIFT ROD AND SELECTOR ROD, Replaced By: A0009910922
999
BUSHING, O.D.. BUSHING UP TO CHASSIS 45 11045
999
BUSHING 18.20 MM, 000420
999
LEVER
999
LEVER
999
REPLACED BY 110 260 04 37 FOR SHIFT SHAFT, Replaced By: A1102600437
999
TRANSMISSION CASE COVER , Replaced By: A1112603214, +001A1102600437
999
TRANSMISSION CASE COVER. GEAR CASE COVER, TOP WITH SELECTOR LEVER WITHOUT SHIFTING LEVER
999
TRANSMISSION CASE COVER
999
BALL SOCKET FOR GEARSHIFT LEVER, Replaced By: A1112680392
999
GUIDE RING FOR GUIDE PIN, SHIFTING TUBE, TOP
999
RUBBER MOUNTING, BOTTOM. GUMMILAGER UNTEN
999
MOUNTING BODY WITH SLEEVE
999
SELECTOR LEVER FOR SELECTOR FINGER AT TRANSMISSION CASE COVER, TOP
999
LEVER FOR SHIFTING SHAFT
999
SELECTOR LEVER SELECTOR FINGER TO TRANSMISSION CASE COVER, TOP, Replaced By: A1102600337
999
LEVER FOR SHIFTING SHAFT
999
SEALING SLEEVE FROM CHASSIS 65 01347
999
INTERMEDIATE SHAFT WITH BALL PIN
999
SELECTOR LEVER WITH BALL PIN FOR MOUNTING BODY, BOTTOM
999
SHIFTING ROD
999
SELECTOR ROD , Replaced By: A1212601933
999
SHIFT ROD
999
BUSHING FOR SHIFT TUBE, Replaced By: A1002680450
999
WASHER, O.D. 35 MM FOR SHIFT ROD AND SELECTOR ROD, Replaced By: A1109901840
999
SPACER RING , Replaced By: A1119900940
999
SPACER RING , Replaced By: A1119900840
999
DRUCKFEDER. PRESSURE SPRING FOR SHIFTER HEAD FOR REVERSE GEAR
999
COVER FOR MOUNTING BODY OPTIONAL
999
INTERMEDIATE LEVER ON INTERMEDIATE SHAFT
999
LEVER AT SHIFTING TUBE, BOTTOM
999
SHIFT TUBE
999
SELECTOR LEVER SHAFT FROM CHASSIS 65 01347
999
GEARSHIFT LEVER KNOB, IVORY-COLOURED SPECIAL REQUEST FROM CHASSIS 8500410
999
SLEEVE FOR GEARSHIFT LEVER MOUNTING, TOP FROM CHASSIS 55 19057
999
KNOB. BRACKET
999
KNOB , Replaced By: A1112680842
999
WASHER , 000420
999
GUIDE PLATE , 040898
999
TRANSMISSION CASE COVER , 040898, Replaced By: A1112602314, +001A1102600437, +001A1369970830, +001N007603018103
999
TRANSMISSION CASE. GEAR CASE COVER, TOP WITHOUT BACK-UP LIGHT SWITCH WITH SELECTOR LEVER WITHOUT SHIFTING LEVER, Replaced By: A1112600614
999
TRANSMISSION CASE COVER, TOP WITH SELECTOR FINGER LEVER WITHOUT SHIFTING FINGER LEVER
999
GASKET , 040898
999
SHIFTING FORK 1ST AND 2ND SPEED
999
WAHLHEBEL. SELECTOR LEVER AT SHIFTER TUBE, Replaced By: A1802680215
999
SCREWTO R & S, 10/20 695199 50/60 696575 8 000001 10/20 910468 50/60 910357 ALSO INSTALLED ON 910659,910662,910667,910748,910750,910812,910813,910817,910818,910833,910880,911127,911436,911440, 911442,911753,911832.
999
COTTER PIN , Replaced By: A1119900420
999
LOCK WASHER
999
LOCK WASHER
999
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
999
SPRING WASHER , Replaced By: N000137006204
999
LOCK PLATE 8,4 DIN 463 FOR COVER TO MOUNTING BODY
999
LOCK RING 14X1 DIN 472. RETAINING RING
999
ROUND HEAD RIVET 2, 6X10 DIN 660 A1
999
SCREW , UP TO CHASSIS 680031 EXCEPT FOR:500001-599999
999
SCREW BRACKET TO TRANSMISSION CASE
999
NUT , Replaced By: N304032006004
999
NUT LEVER TO SHIFTING SHAFT
999
SEAL RING
999
SCREW GLOVE COMPARTMENT LID TO INSTRUMENT PANEL, 010 UP TO CHASSIS 017603 EXCEPT FOR,SEE FOOTNOTE 58,012 UP TO CHASSIS 036825 EXCEPT FOR,SEE FOOTNOTE 59
999
NUT
