Поз.
Артикул
Описание
1

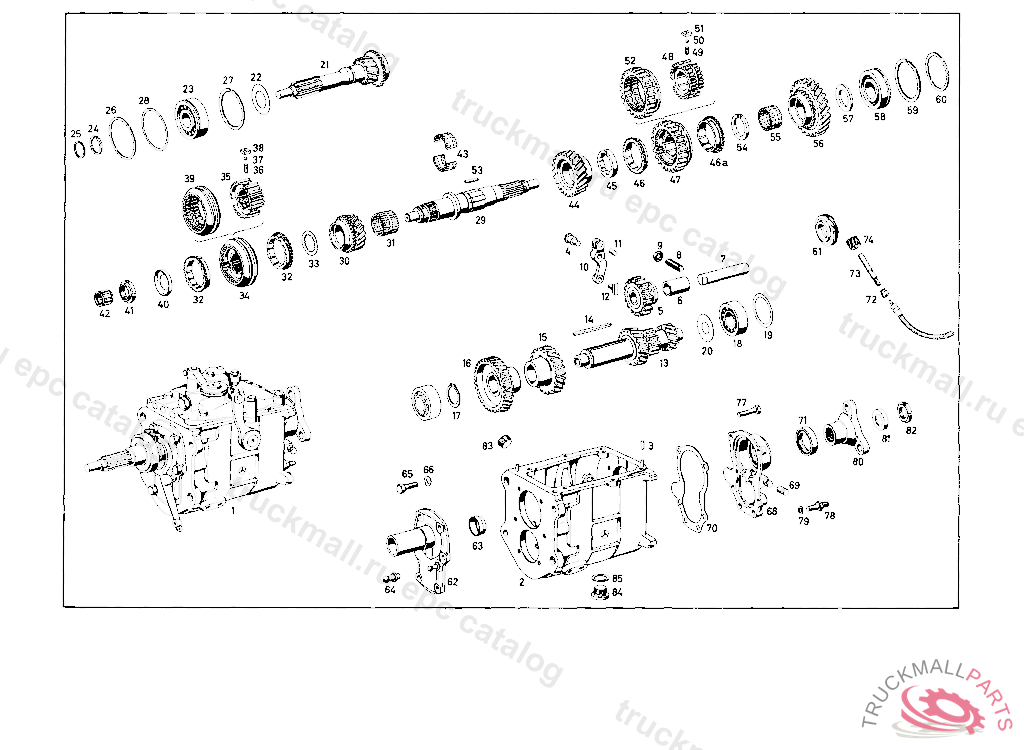

TRANSMISSION WITHOUT CLUTCH HOUSING, BUT WITH RELEASE PARTS
2
TRANSMISSION CASE. TRANSMISSION HOUSING
3
CYLINDRICAL PIN
4
PIN ,041858
5
GEAR
6
BUSHING
7
REVERSE IDLER SHAFT
8
THREADED PIN WITH HARDENED PIVOT M 10X45 DIN 417-5 S REVERSE IDLER SHAFT TO TRANSMISSION CASE
9
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
10
LEVER
11
DOWEL PIN
12
COLLAR. SLEEVE
13
COUNTERSHAFT LONG TOOTHING, AS OF TRANSMISSION 151532 FOR TYPE 180 C/180 DC
14
KEY
15
GEAR 27 TEETH, 3RD SPEED
16
GEAR 32 TEETH, 3RD SPEED, 000,001,010,100,101,110 UP TO TRANSMISSION 365563 EXCEPT FOR, SEE FOOTNOTE 6 AND 12
17
LOCK RING
18
GROOVED BALL BEARING , Replaced By: A0029810025
19
SPACER WASHER , Replaced By: A6022630352
20
WASHER
21
DRIVE SHAFT WITH SYNCHRONIZING CONE, FOR TYPE 180 C/180 DC
22
OIL RING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
23
GROOVED BALL BEARING
24
SNAP RING
26
SPACER RING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
27
SNAP RING 2.05 MM
28
SPACER WASHER AS REQUIRED 0.1 MM
29
MAIN SHAFT
30
GEAR 3RD SPEED
31
ROLLER ASSEMBLY
32
SYNCHRONIZER RING , Replaced By: A1132620034
33
THRUST WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
34
SYNCHRONIZER BODY 3RD AND 4TH SPEED
35
SYNCHRONIZER BODY , NO LONGER AVAILABLE
36
SPRING
37
BALL HOUSING,FRONT
38
FOLLOWER
39
SLIDING COLLAR 3RD AND 4TH SPEED, NO LONGER AVAILABLE
40
LOCK
41
GROOVED NUT
42
ROLLER ASSEMBLY
43
ROLLER ASSEMBLY
44
GEAR , Replaced By: A1102620212
45
THRUST WASHER 7.90 MM
46
SYNCHRONIZER RING , Replaced By: A1132620034
47
SYNCHRONIZER BODY 1ST AND 2ND SPEED, 000,001,010,100,101,110 UP TO TRANSMISSION 365563 EXCEPT FOR, SEE FOOTNOTE 6 AND 12
48
SYNCHRONIZER BODY , 000,001,010,100,101,110 UP TO TRANSMISSION 365563 EXCEPT FOR, SEE FOOTNOTE 6 AND 12 NO LONGER AVAILABLE
49
SPRING
50
BALL HOUSING,FRONT
51
FOLLOWER
52
SLIDING COLLAR , 000,001,010,100,101,110 UP TO TRANSMISSION 365563 EXCEPT FOR, SEE FOOTNOTE 6 AND 12 NO LONGER AVAILABLE
53
KEY
54
THRUST WASHER 4.40 MM
55
ROLLER ASSEMBLY , Replaced By: A0019816910
56
GEAR 28 TEETH, 1ST SPEED, 000,001,010,100,101,110 UP TO TRANSMISSION 365563 EXCEPT FOR, SEE FOOTNOTE 6 AND 12
57
THRUST WASHER 3.80 MM
58
BALL BEARING , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359, Replaced By: A0029810625
59
SNAP RING , Replaced By: N005417072001
60
SPACER WASHER 0.10 MM
61
DRIVE GEAR , Replaced By: A1101640030
62
TRANSMISSION HOUSING. TRANSMISSION CASE COVER, FRONT
63
SEAL RING
64
BALL PIN FOR RELEASE FORK, CLUTCH
65
SCREW
66
SPRING WASHER GROUND CABLE TO TRANSMISSION
68
TRANSMISSION CASE. GEAR CASE COVER, REAR
69
PLUG
70
GASKET FOR TRANSMISSION HOUSING COVER, REAR
71
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
72
GASKET , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
73
SHAFT FOR TACHOMETER DRIVE
74
DRIVE GEAR SEE FIG. NO.: 115
77
SCREW BRACKET TO SIDE MEMBER
78
COLLAR SCREW. SCREW CASE COVER TO TRANSMISSION
79
SPRING WASHER GROUND CABLE TO TRANSMISSION
80
FLANGE
81
LOCK
82
GROOVED NUT
83
SCREW PLUG , Replaced By: A0009972632
84
SCREW PLUG , Replaced By: A1159970032
85
SEAL RING
999
WASHER HORN TO ENGINE CROSS MEMBER
999
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
999
SPRING WASHER , Replaced By: N000137006204
999
SPRING WASHER
999
SCREW
999
HEX. HEAD. SCREW BUFFER TO CAB, ON VEHICLES LESS DB CAB
999
SLIDING SLEEVE FOR 3RD AND 4TH GEAR
999
SYNCHRONIZING RING FOR FIRST GEAR
999
THRUST WASHER 4.50 MM
999
THREE-ARM FLANGE. THREE-WAY FLANGE, 90-MM HOLE CIRCLE ON MAIN SHAFT, Replaced By: A1112620045
999
SLIDING SLEEVE FOR 1ST AND 2ND SPEED, Replaced By: A1112620323
999
THRUST WASHER 4.40 MM
999
SYNCHRONIZING RING FOR THIRD SPEED AND FOURTH SPEED
999
THRUST WASHER AS REQUIRED 4.30 MM
999
SYNCHRONIZER BODY. SYNCHRONIZING BODY
999
THRUST WASHER AS REQUIRED 4.20 MM
999
THRUST WASHER 4.10 MM
999
THRUST WASHER 4.00 MM
999
THRUST WASHER 3.90 MM
999
SYNCHRONIZER BODY FOR 1ST AND 2ND GEAR, Replaced By: A1112600545
999
TRANSMISSION CASE. TRANSMISSION HOUSING
999
MAIN SHAFT FROM TRANSMISSION NO. 75 02182
999
TRANSMISSION HOUSING COVER, FRONT
999
SNAP RING , Replaced By: A1369940935
999
SNAP RING AS REQUIRED 1.9 MM
999
SCHALTKLAUE. COLLAR
999
SPACER WASHER 0.30 MM
999
SPACER WASHER 0.3 MM
999
SPACER WASHER 0.2 MM
999
SPACER WASHER 0.20 MM
999
PIN ,041857
999
DRIVE SHAFT WITH SYNCHRONIZING CONE, Replaced By: A1202601220
999
WORM GEAR. HELICAL GEAR FOR 3RD GEAR
999
DRIVE SHAFT. REPLACED BY 120 260 12 20 TOGETHER WITH 1 SLIDING SLEEVE 111 262 04 23, UP TO TRANSMISSION 040847 FOR TYPE 180 B
999
SPACER WASHER , Replaced By: A6022630452
999
SPACER WASHER , Replaced By: A6022630252
999
SPACER WASHER INTERMEDIATE BEARING
999
COUNTERSHAFT GEAR,. COUNTERSHAFT GEAR 27 TEETH FOR 3RD GEAR
999
THRUST WASHER AS REQUIRED
999
THRUST WASHER , Replaced By: A1202622062
999
THRUST WASHER AS REQUIRED
999
THRUST WASHER , Replaced By: A1202621862
999
THRUST WASHER , NOT USED
999
THRUST WASHER , Replaced By: A1202621562
999
SLIDING SLEEVE. REPLACED BY 111 262 03 23 TOGETHER WITH 1 SYNCHRONIZER BODY 111 262 03 35, UP TO TRANSMISSION 184635 FOR TYPE 180 DB
999
THRUST WASHER 4.50 MM
999
THRUST WASHER , Replaced By: A1202621362
999
WORM GEAR. REPLACED BY 110 262 00 12 TOGETHER WITH 1 SYNCHRONIZER BODY 111 260 07 45, UP TO TRANSMISSION 047840 FOR TYPE 180 B
999
WORM GEAR. REPLACED BY 110 262 01 11 TOGETHER WITH 1 SYNCHRONIZER BODY 111 260 07 45, UP TO TRANSMISSION 047840 FOR TYPE 180 B
999
SYNCHRONIZER BODY
999
SYNCHRONIZER BODY. SYNCHRONIZER
999
SYNCHRONIZER BODY. REPLACED BY 111 262 03 35 TOGETHER WITH 1 SLIDING SLEEVE 111 262 03 23, UP TO TRANSMISSION 047840 FOR TYPE 180 B
999
TRANSMISSION WITHOUT CLUTCH HOUSING, BUT WITH RELEASE PARTS
999
DRIVE SHAFT WITH SYNCHRONIZING CONE, Replaced By: A1202601320
999
SYNCHRONIZER BODY FOR 3RD AND 4TH GEAR, Replaced By: A1112600845
999
DRIVE SHAFT. REPLACED BY 120 260 13 20 TOGETHER WITH 1 SLIDING SLEEVE 111 262 04 23, UP TO TRANSMISSION 179488 FOR TYPE 180 DB
999
SYNCHRONIZER BODY FOR THIRD SPEED AND FOURTH SPEED FROM TRANSMISSION NO. 02750/53
999
SYNCHRONIZER BODY. , Replaced By: A1112600745
999
COUNTERSHAFT , 024406
999
HELICAL GEAR, 34 TEETH FOR 2ND GEAR, Replaced By: A1112620412
999
SYNCHRONIZER RING. SYNCHRONIZING RING (FOR 1ST GEAR)
999
, Replaced By: A1112600845
999
SYNCHRONIZER BODY FOR 1ST AND 2ND GEAR, FROM TRANSMISSION 5501251
999
GEAR 24 TEETH, 2ND SPEED, 024406
999
HELICAL GEAR, 28 TEETH FOR 1ST GEAR, Replaced By: A1102620111
999
, Replaced By: A1102600144
999
ROLLER ASSEMBLY
999
ROLLER ASSEMBLY
