Mercedes A0019903703 - Болт

E 400 BLUE EFFICIENCY 207.365

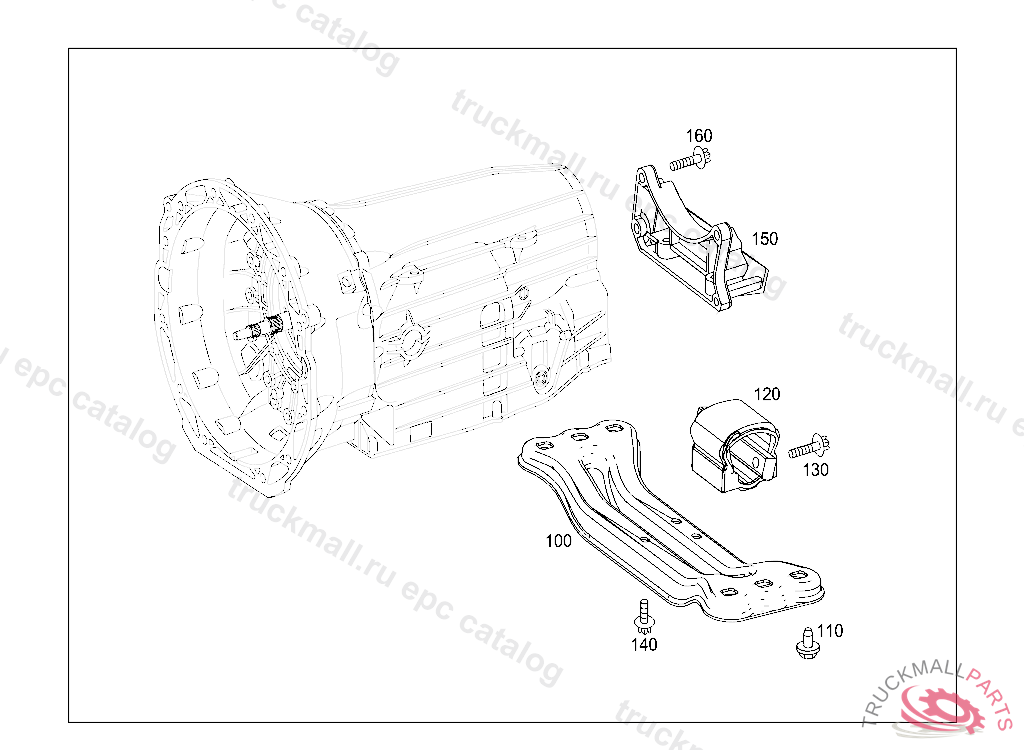

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 2

Поз.
Артикул
Описание
100
A2042401702
ENGINE MOUNT REAR
100
A2042401502
ENGINE MOUNT REAR
110
A0019903703
BOLT ENGINE REAR SUPPORT TO FRAME M10X22
120
A2122400418
ENGINE SUPPORT REAR
130
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
140
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
150
A2112420340
BRACKET AT TRANSMISSION
150
A1402421340
BRACKET , A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
150
A2052420340
BRACKET AT TRANSMISSION
160
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
160
A0049903412
BOLT BRACKET TO TRANSMISSION M6X30
