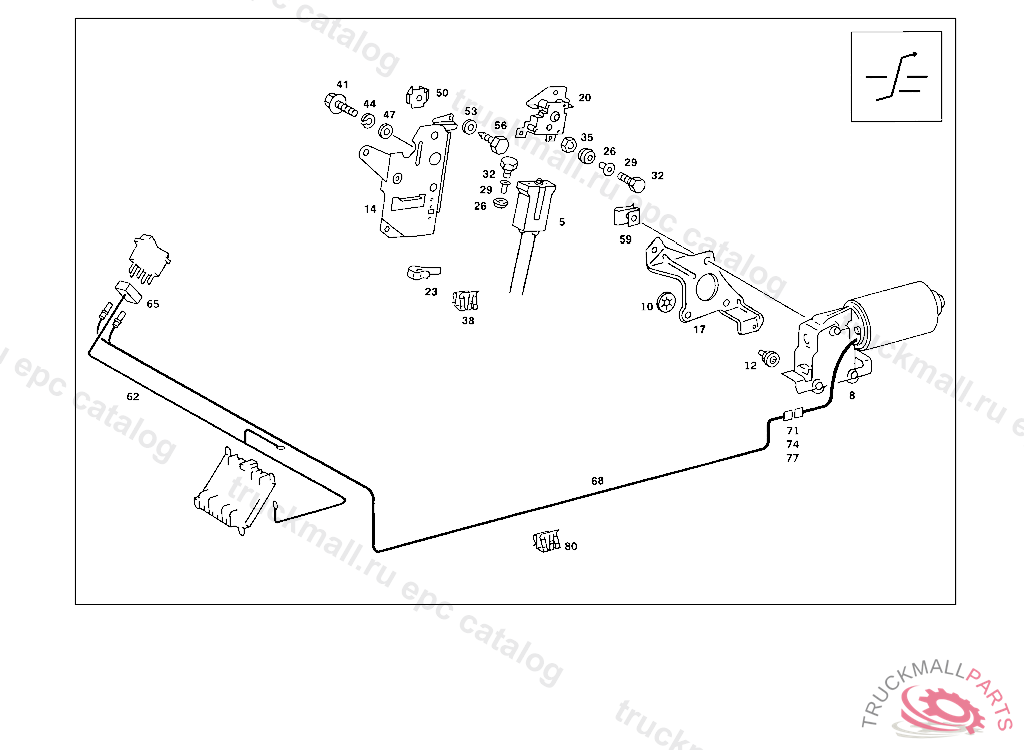

Поз.
Артикул
Описание
5
ELECTRIC MOTOR
14
BRACKET ENGINE
20
GEARING ELECTRIC SLIDING ROOF, 033 102015 123 329277 130 276372
23
CLIP
26
GROMMET GEARING TO BRACKET
29
BUSHING MOTOR TO BRACKET
32
SCREW COVER PLATE TO BRACKET
32
SCREW PUMP TO BRACKET
35
NUT BALL PIVOT TO LEVER
38
CLIP PLUG TO REAR PILLAR
41
HEXAGON HEAD BOLT
41
SCREW , Replaced By: N910105006002
44
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
47
WASHER COMPRESSED AIR LINE TO BRACKET
47
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
LOCK BRACKET WITH MOTOR AND GEARING TO REAR PILLAR, 033 102015 123 329277 130 276372 133 008386 223 100392
53
WASHER COVER PLATE TO COVER PLATE
53
WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
56
SHEET METAL SCREW , NOT USED
62
ELECTRIC CABLE SLIDING ROOF SWITCH
65
CONNECTOR QUADRUPLE
68
ELECTRIC CABLE ELECTRIC SLIDING ROOF MOTOR
71
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
74
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
77
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
80
CLIP PLUG TO REAR PILLAR
