Mercedes A1237804129 - Деталь FRAME SLIDIN

200 123.020

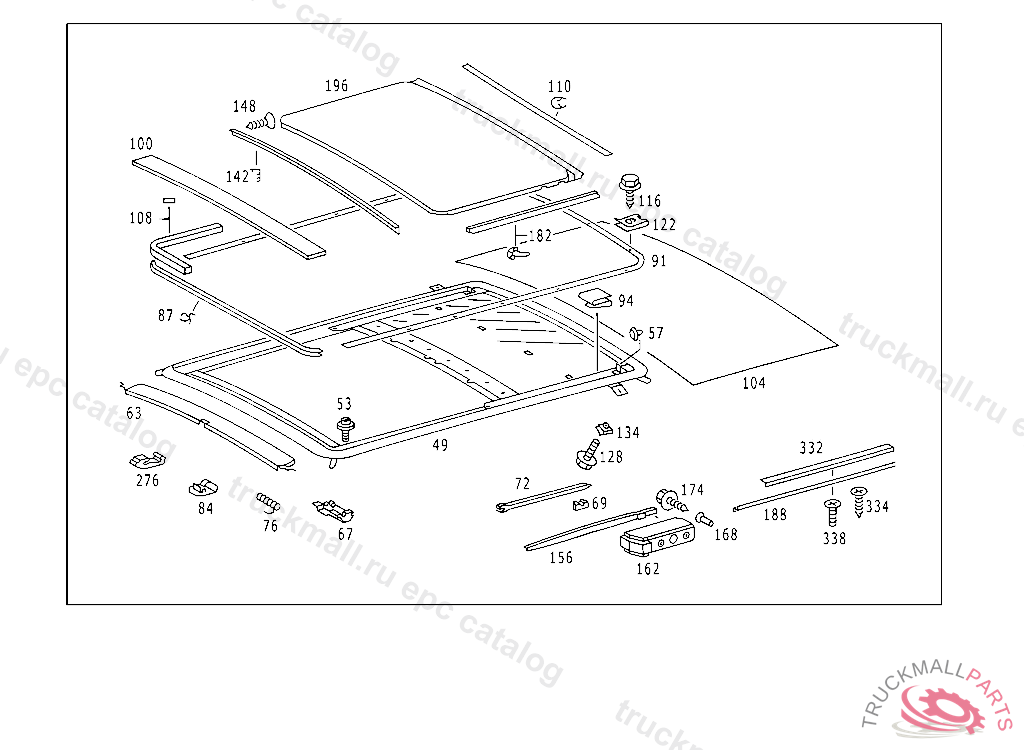

78 SLIDING ROOF - 001 MECHANICAL SLIDING ROOF IL.3

Поз.
Артикул
Описание
49
A1237804129
FRAME WITH DRAFT DEFLECTOR
49
A1237803129
FRAME WITH DRAFT DEFLECTOR
49
A1237803229
FRAME WITH DRAFT DEFLECTOR
53
A1107820071
SCREW BOTTOM FRAME
57
A1089870240
RUBBER BUFFER
63
A1267800544
DRAFT DEFLECTOR ,A 232400
67
A1247840121
MOUNTING FRONT LEFT
67
A1247840221
MOUNTING FRONT RIGHT
69
A1237840021
MOUNTING LATERAL
72
A2017800238
LEVER RIGHT
72
A2017800138
LEVER LEFT
76
A1247820635
SPRING RIGHT
76
A1247820535
SPRING LEFT
84
A1237840521
MOUNTING CENTRAL
87
A1087820098
SEAL BOTTOM FRAME,FRONT
91
A1237820098
SEAL BETWEEN TOP AND BOTTOM FRAMES
94
A1159880278
CLIP
100
A0009833598
FOAM PLASTICS FRONT ROOF RAIL
104
A1266821852
INSULATION REAR
108
A1236820497
PAD1880X20 X25 MM
108
A1236820197
PAD
110
A0019877625
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
116
N914128006200
SHEET METAL SCREW
122
A0009943845
LOCK FRAME TO REINFORCEMENT FRAME
128
N910105006002
HEXAGON HEAD BOLT
134
A0009909491
NUT RETAINER BOTTOM FRAME TO REAR LEFT AND RIGHT ROOF RAILS
142
A1237820213
COVER RAIL BOTTOM FRAME,FRONT, 023 049084 033 024844 123 034291 130 044426
142
A1237820013
COVER RAIL
148
N007983002203
SHEET METAL SCREW
156
A1157820124
RAIL LEFT
156
A1157820224
RAIL RIGHT
162
A2017820036
LOCK
168
N000661003009
RIVET
174
A0009901136
SCREW
182
A1087820198
SEAL480 MM
188
A1107821326
SLIDING RAIL LEFT
188
A1107821426
SLIDING RAIL RIGHT
196
A1237801321
SLIDING ROOF PLATE
276
A1237820328
SLIDE DRAFT DEFLECTOR
332
A1237822626
SLIDING RAIL RIGHT
332
A1237822526
SLIDING RAIL LEFT
334
A1409900436
SCREW
338
N000965004024
SCREW
999
A1247820046
STAY
