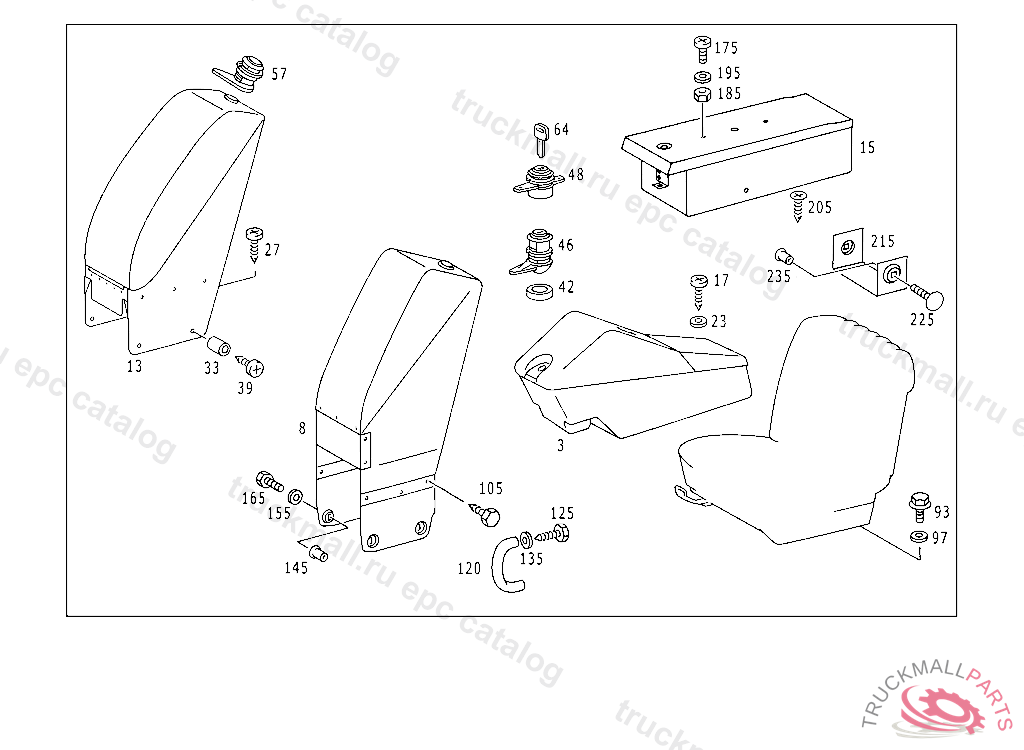

Поз.
Артикул
Описание
3
BOX
8
BOX
8
BOX
13
BOX
15
TANK
17
SHEET METAL SCREW TRANSMISSION TUNNEL
17
SHEET METAL SCREW INSTRUMENT CLUSTER TO INSTRUMENT PANEL,013036
17
SHEET METAL SCREW BRACKET TO WINDOW SILL
23
WASHER , Replaced By: N009021004207
23
WASHER COVERING TO CYCLONE AIR TRAP
27
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
27
SHEET METAL SCREW , Replaced By: N000000000459
33
SPACER TUBE TRANSMISSION TUNNEL
39
SHEET METAL SCREW TRANSMISSION TUNNEL
42
SPACER
46
FASTENER WITH KEY, WITH LOCK NUMBER UNDEFINED,FOR STORAGE PURPOSES ONLY THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
46
FASTENER LESS KEY, STATE LOCK NUMBER WHEN ORDERING
48
OUTFIT (LOCK,KEY,HANDLE) , THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
57
FASTENER , THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
64
KEY , STATE LOCK NUMBER WHEN ORDERING THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
93
SCREW
97
WASHER BRACKET TO COVERING
105
SCREW , Replaced By: N910105006023
120
CLAMP RESERVOIR
125
SHEET METAL SCREW MODULE TO HOUSING
125
SHEET METAL SCREW , Replaced By: N000000000453
135
WASHER BRACKET TO SUPPORT
145
THREADED CHUCK ON MAIN FLOOR
155
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
165
SCREW COVER PLATE TO BRACKET
175
SCREW ELECTRIC CABLE TO FUSE BOX
185
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
195
WASHER BRACKET TO SUPPORT
205
SHEET METAL SCREW
215
CLAMP
225
SCREW
235
FASTENER BUTTON
