Mercedes
CAR
260 E
124.026 200-300 9/89-10/92, 200D-300D 9/89-7/93
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

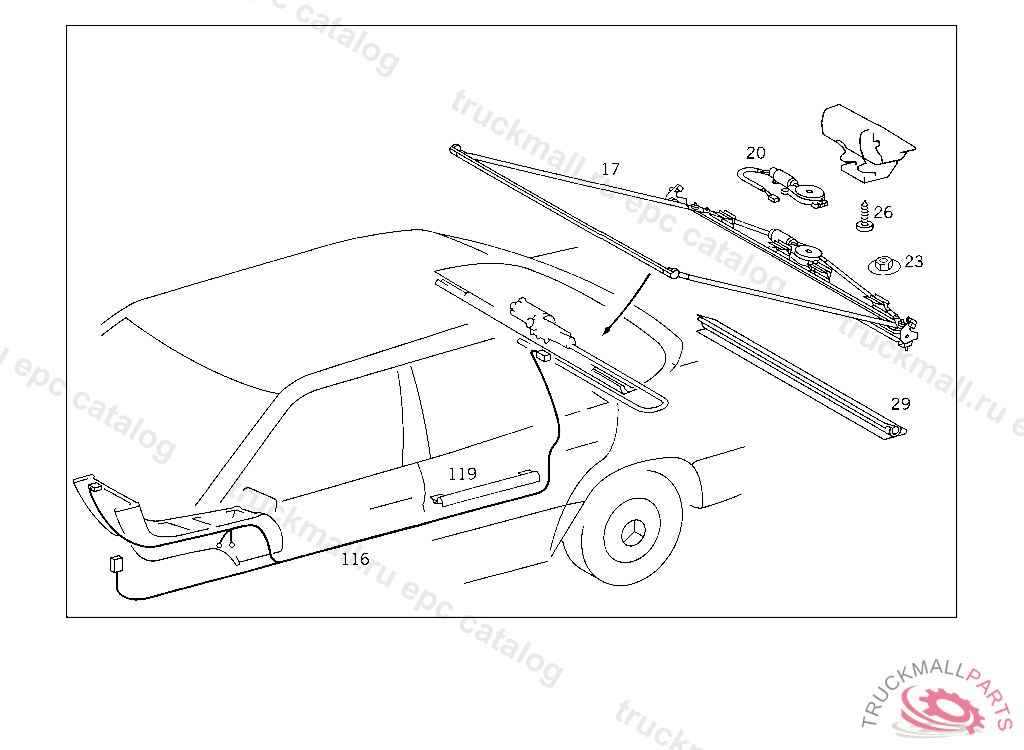

001 REAR WINDOW ROLLER BLIND (FOR TYPE 124 ELECTRICAL PARTS, SEE STANDARD MICROFICHE IL.2

Mercedes A1408202508 - ДВИГАТЕЛЬ

260 E 124.026 200-300 9/89-10/92, 200D-300D 9/89-7/93

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 REAR WINDOW ROLLER BLIND (FOR TYPE 124 ELECTRICAL PARTS, SEE STANDARD MICROFICHE IL.2

Поз.
Артикул
Описание
17
A1248102720
ROLLER BLIND , NO.9A88I NO.5B01I NO.8E94I NO.8E95I NO.8E93I NO.6B54I NO.3B35I NO.7C29IIB 603276
17
A1248103020
ROLLER BLIND ,NO.9A88I NO.5B01I NO.8E94I NO.8E95I NO.8E93I NO.6B54I NO.3B35I NO.7C29I I
20
A1408202508
ELECTRIC MOTOR ,B 145538
23
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
26
N007981003326
SHEET METAL SCREW CABLE CONNECTOR TO BRACKET
29
A1248101727
RAILVELOURS,NO.9A88I NO.5B01I NO.8E94I NO.8E95I NO.8E93I NO.6B54I NO.3B35I NO.7C29I I
29
A1248101627
RAIL JUTE FELT,NO.9B04I NO.5B17I NO.8F02I NO.8F03I NO.8F04I NO.6B72I NO.3B49I NO.7C58I I
29
A1248102527
RAIL
116
A1244401108
CABLE HARNESS REARVIEW MIRROR ADJUSTMENT,10/92
116
A1245403113
CABLE HARNESS REARVIEW MIRROR ADJUSTMENT,10/92
116
A1265402513
CABLE HARNESS
116
A1244407309
CABLE HARNESS REARVIEW MIRROR ADJUSTMENT,10/92
119
A1248214536
COVERING
