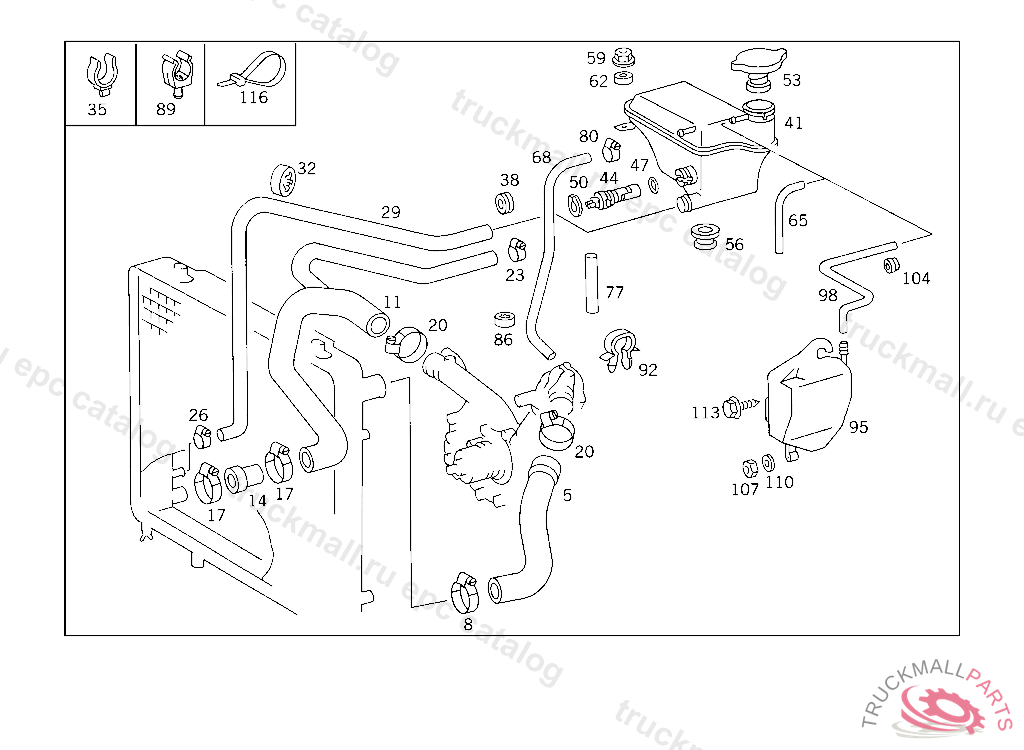

Поз.
Артикул
Описание
5
HOSE TOP, ONLY USED WITH AIR CONDITIONER
8
CLAMP , Replaced By: A0069970590
8
LOOM TIE
11
HOSE BOTTOM
20
LOOM TIE
20
LOOM TIE. CLAMP HOSE FASTENING
20
CLAMP , Replaced By: A0069970590
20
CLAMP , Replaced By: A0069974390
23
CLAMP , Replaced By: A0069970490
23
LOOM TIE , Replaced By: N000000000668
26
CLAMP PRESSURE REGULATOR
26
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
29
HOSE ONLY FOR USE WITH AIR CONDITIONER
38
GROMMET FEED LINE TO FIRE WALL,F 016102
41
TANK EXPANSION TANK
44
SWITCH COOLING WATER LEVEL INDICATOR
47
SEAL RING
50
LOCK RING MAIN SHAFT,FRONT
53
CLOSING COVER RADIATOR
56
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
59
NUT MOUNTING FRAME TO SUPPORT M6
68
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
77
INSULATING HOSE16X1 MM, ORDER BY THE METER
80
HOSE CLAMP LINE MOUNTING
80
CLAMP , Replaced By: A0059970190
86
RUBBER RING
95
TANK OVERFLOW
98
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
98
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
98
HOSE FROM FEED LINE TO FILTER 240 MM
104
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
107
NUT
107
NUT , Replaced By: N304032008006
110
WASHER , Replaced By: N000125008443
113
COMBINATION BOLT. TAPPING SCREW , Replaced By: N000000000548
113
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
116
LOOM TIE TO MOUNT PLASTIC PIPING
