Главная
›
Mercedes
›
CAR
›
E 280 JAPAN
›
124.028 FROM 09/89
›
46 STEERING
›

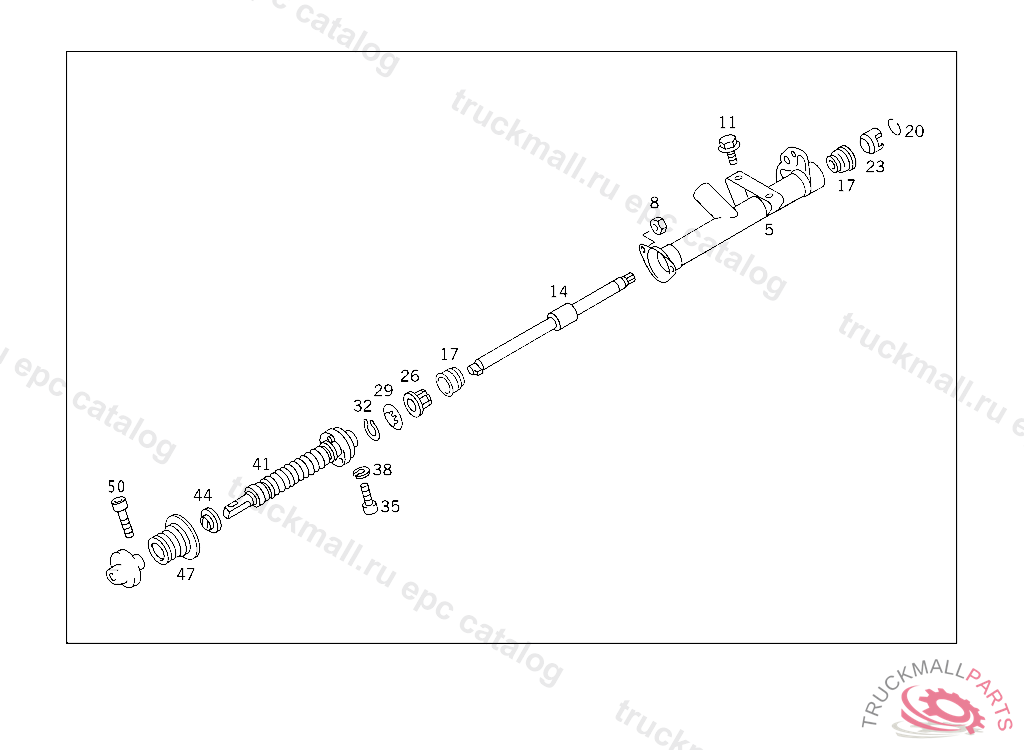

075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT
Mercedes A1234620460 - Уплотнительное кольцо
E 280 JAPAN 124.028 FROM 09/89
46 STEERING - 075 STEERG.COLUMN JACKET TUBE & STEERG. SHAFT
Поз.
Артикул
Описание
5
A1244602216
STEER. COLUMN JACKET TUBE
5
A1244602316
STEER. COLUMN JACKET TUBE
8
N304032006008
NUT BATTERY MOUNTING
8
N000934006013
NUT CYLINDER TO BRACKET TO0002902112
11
A2019900204
SCREW STEERING COLUMN JACKET TUBE TO BODY
14
A1244601509
STEERING SHAFT TOP
17
A1269810025
BALL BEARING
20
N912009025100
SNAP RING
23
A1264620051
RING
26
A1234620417
CONICAL SLEEVE , 023 108180 033 045305 123 087739 130 110887
29
A1239930226
DISC SPRING , 023 108180 033 045305 123 087739 130 110887
32
N900055025401
LOCK RING
35
N000912008098
SCREW , Replaced By: N000912008204
38
N912006008000
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
41
A1244600709
STEERING SHAFT BOTTOM
44
A1234620460
SEAL RING
47
A1244620396
BOOT , Replaced By: A1244621396
47
A1244621396
BOOT
50
A2029902101
SCREW
50
A1239900720
SCREW , Replaced By: A2029902101
