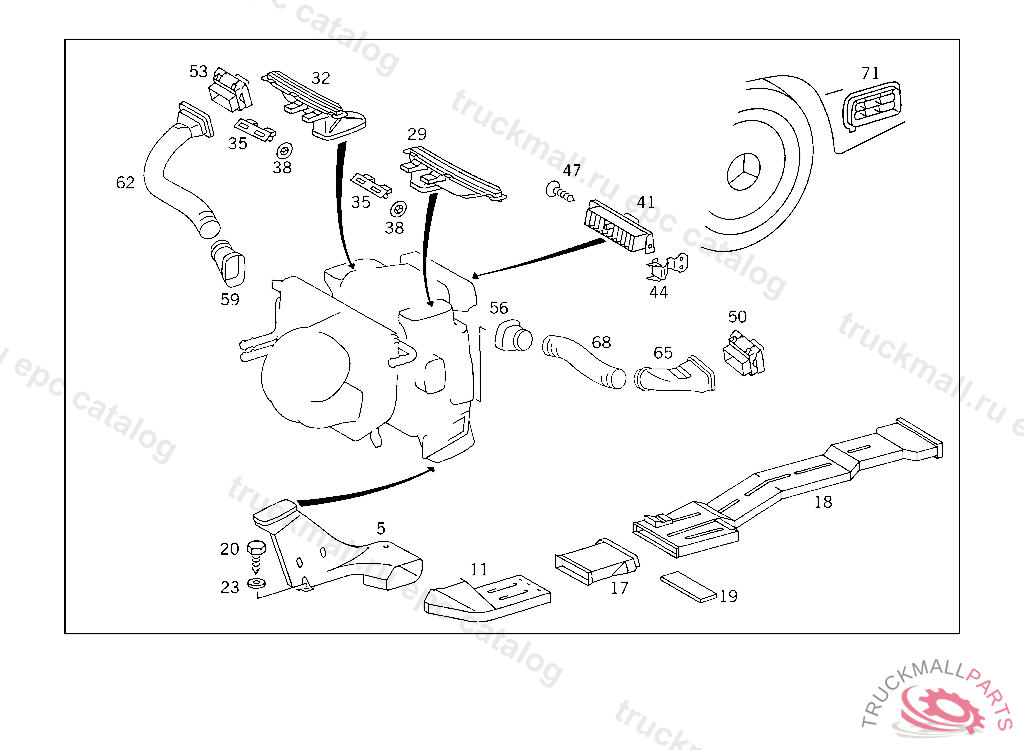

Поз.
Артикул
Описание
5
REAR DUCT TOP RIGHT
5
REAR DUCT TOP RIGHT
5
REAR DUCT TOP LEFT
11
REAR DUCT CENTRAL RIGHT
11
REAR DUCT CENTRAL LEFT
17
REAR DUCT REAR,F 249983
20
SHEET METAL SCREW BRACKET TO FIRE WALL
20
SHEET METAL SCREW BRACKET MOUNTING
23
WASHER BRACKET TO SUPPORT
29
DEFROSTER NOZZLE LEFT
32
DEFROSTER NOZZLE RIGHT
35
ESCUTCHEON LEFT DEFROSTER NOZZLE
38
LOCK. CLIP LICENSE PLATE FLAP
41
NOZZLE FRESH AIR,INSTRUMENT PANEL,CENTER
41
NOZZLE FRESH AIR,INSTRUMENT PANEL,CENTER
44
CLIP CENTRAL NOZZLE TO INSTRUMENT PANEL
47
SHEET METAL SCREW CENTRAL NOZZLE TO INSTRUMENT PANEL
50
FRESH AIR NOZZLE SIDE PANE DEFROSTING,INSTRUMENT PANEL, LATERAL LEFT
53
FRESH AIR NOZZLE SIDE PANE DEFROSTING,INSTRUMENT PANEL, LATERAL RIGHT
56
DUCT BETWEEN HEATER CASE AND LEFT NOZZLE, ON HEATER CASE
59
DUCT BETWEEN HEATER CASE AND LEFT NOZZLE, ON HEATER CASE
59
DUCT BETWEEN HEATER CASE AND RIGHT NOZZLE, ON HEATER CASE
62
DUCT BETWEEN HEATER CASE AND RIGHT NOZZLE, ON NOZZLE
65
DUCT BETWEEN HEATER CASE AND RIGHT NOZZLE, ON NOZZLE
65
DUCT BETWEEN HEATER CASE AND LEFT NOZZLE, ON NOZZLE
68
HOSE AIR GUIDE, BETWEEN HEATER CASE AND RIGHT NOZZLE
71
FLAP
