Mercedes A2109900020 - БОЛТ М8

E 250 DIESEL 124.126 200-320 FROM 10/92, 200D-300D FROM 7/93

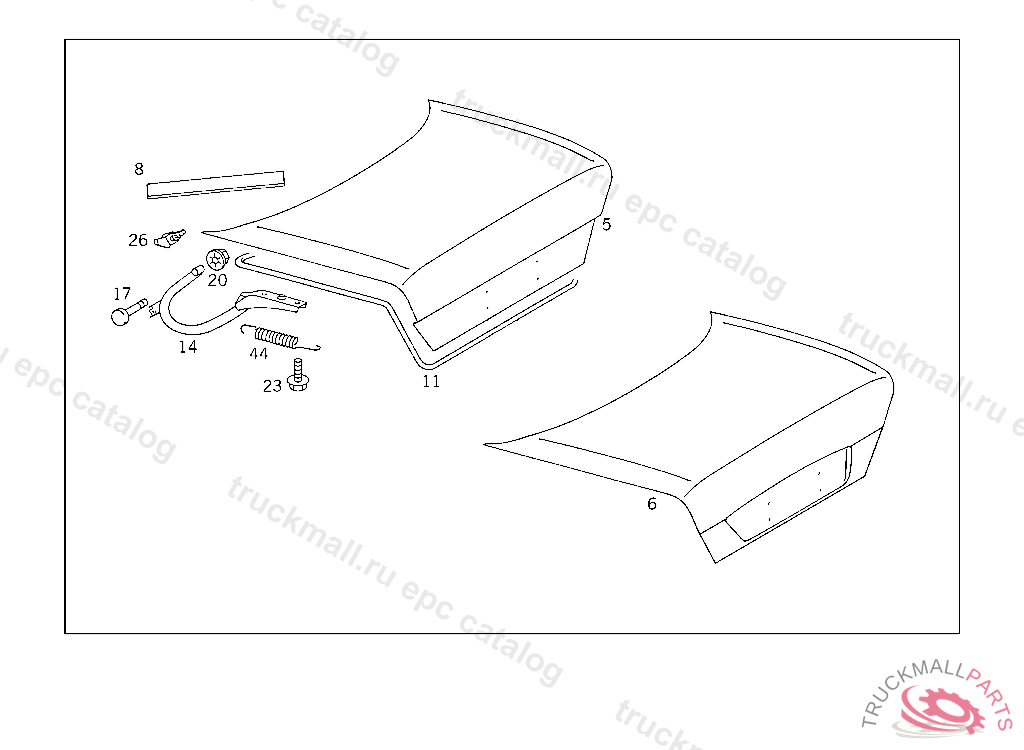

75 REAR LID - 015 REAR LID

Поз.
Артикул
Описание
6
A1247502475
REAR LID STEEL,LESS HOLES FOR TYPE DESIGNATION, C 083747 J 031763 C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859 J 016477 ALSO INSTALLED ON J 011134 - J 016475 WITH CODE 859 RSA FROM CHASSIS NEW EQUIPMENT 7/93
6
A1247501975
REAR LID , C 083746 J 031762, Replaced By: A1247502475, +001A1247500493, +002A1248200756, +003A1409900658, +003N007985005187
8
A1247570997
PAD BETWEEN STIFFENING AND PANELLING 450 MM
8
A1407570097
PAD BETWEEN STIFFENING AND PANELLING 207 MM, TO BE ADAPTED DURING ASSEMBLY
11
A1247500398
SEAL REAR LID
14
A1247500828
HINGE LEVER RIGHT
14
A1247500728
HINGE LEVER LEFT
17
A2109900020
SCREW HINGE LEVER TO MOUNTING
17
A1249900220
SCREW , Replaced By: A2109900020
20
N913013008001
NUT BRACKET MOUNTING
23
N910105006002
HEXAGON HEAD BOLT
26
A2027500126
STOP HINGE LEVER BEARING
44
A1247570529
SPRING REAR LID, C 076921 J 028151
44
A1247570629
SPRING REAR LID
