Поз.
Артикул
Описание

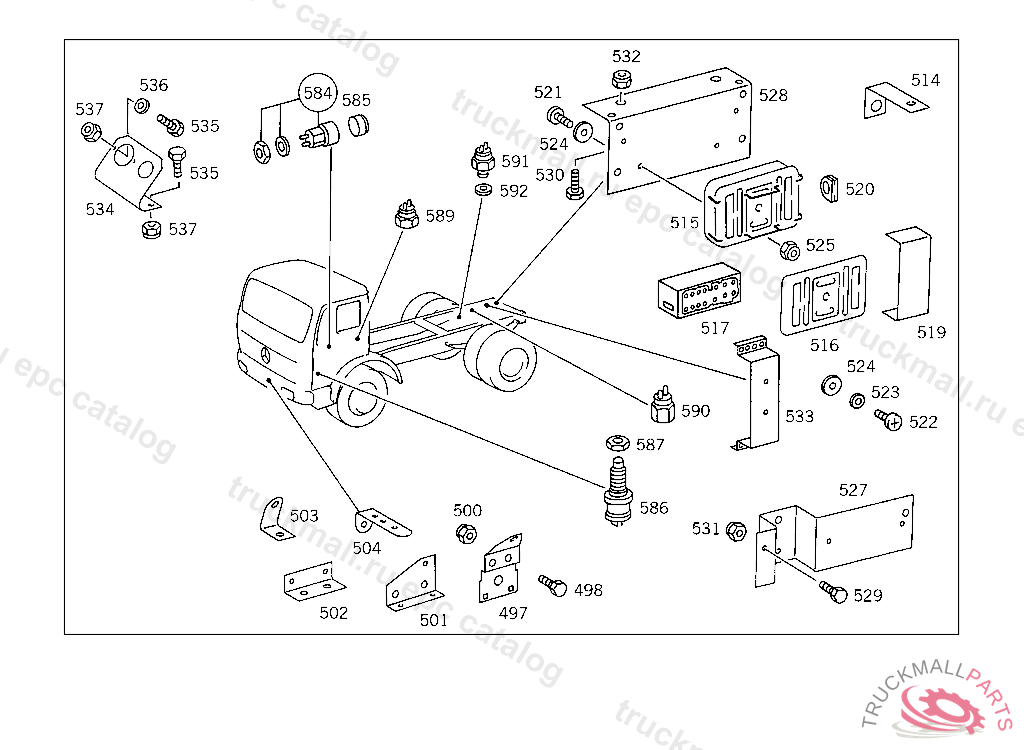

497
BRACKET CABLE HARNESS MOUNTING
497
BRACKET FINAL CONTROL ELEMENT,5 090350
498
SCREW , Replaced By: N304017006016
498
SCREW PUMP TO BRACKET
500
NUT , Replaced By: N913004006001
500
NUT PUMP TO BRACKET
501
BRACKET ENGINE CABLE HARNESS BRANCH-OFF,5 094166
503
BRACKET FUEL LINE TO BELL HOUSING
503
BRACKET , Replaced By: A6454310740
504
BRACKET ENGINE CABLE HARNESS PLUG-CONNECTION TO WATER PUMP HOUSING
504
BRACKET ENGINE CABLE HARNESS PLUG-CONNECTION,5 452356
515
CABLE CONNECTOR , Replaced By: A0015463841
515
CABLE CONNECTOR , Replaced By: A0015465441, +001A0009872844
515
CABLE CONNECTOR FRAME,REAR
516
COVERING
517
PLUG REAR CABLE CONNECTOR,5 180266
517
PLUG CONNECTION POINT BEHIND REAR AXLE
520
EXPANSION PLUG TO LOCK TRAILER-PLUG-SOCKET OUTLET
521
SCREW REFLECTOR TO BRACKET
525
NUT TWO-WAY VALVE TO BRACKET
528
BRACKET JUNCTION BOX
530
SCREW END PIECE TO EXHAUST PIPE M 10X25
532
NUT STRAP TO BRACKET
532
NUT , Replaced By: N910113010000
533
BRACKET ELECTRIC CABLE MOUNTING
584
SWITCH STARTING AT ENGINE
584
SWITCH , Replaced By: A0035452314
585
BOOT SWITCH TO 001 545 46 14
586
SWITCH STOP LIGHT
587
NUT SWITCH
590
SWITCH SUPPLY PRESSURE,5 966147
591
SWITCH SUPPLY PRESSURE
592
SEAL RING LINE CONNECTION
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,5 406237
999
GROMMET LINE MOUNTING 50/45 MM
999
GROMMET BATTERY CASE
999
MARKING STRIP FUSE BOX
999
CABLE HARNESS , Replaced By: A6175401507
999
CABLE HARNESS , Replaced By: A6175400207
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
GROMMET BATTERY CASE
999
LENS
999
CABLE CONNECTOR1.5-6.6 MM2
999
SOCKETTO 003 542 46 16,99 16
999
NUT , Replaced By: A0005421872
999
SOCKET
999
PLUG HOUSING 4-POLE, MODULE "V"
999
DIAGRAM PAPER SET100 PIECES
999
ELECTRIC CABLE , Replaced By: A6175400107
