Mercedes N304017008034 - Болт крепления

E 250 BLUETEC 207.404

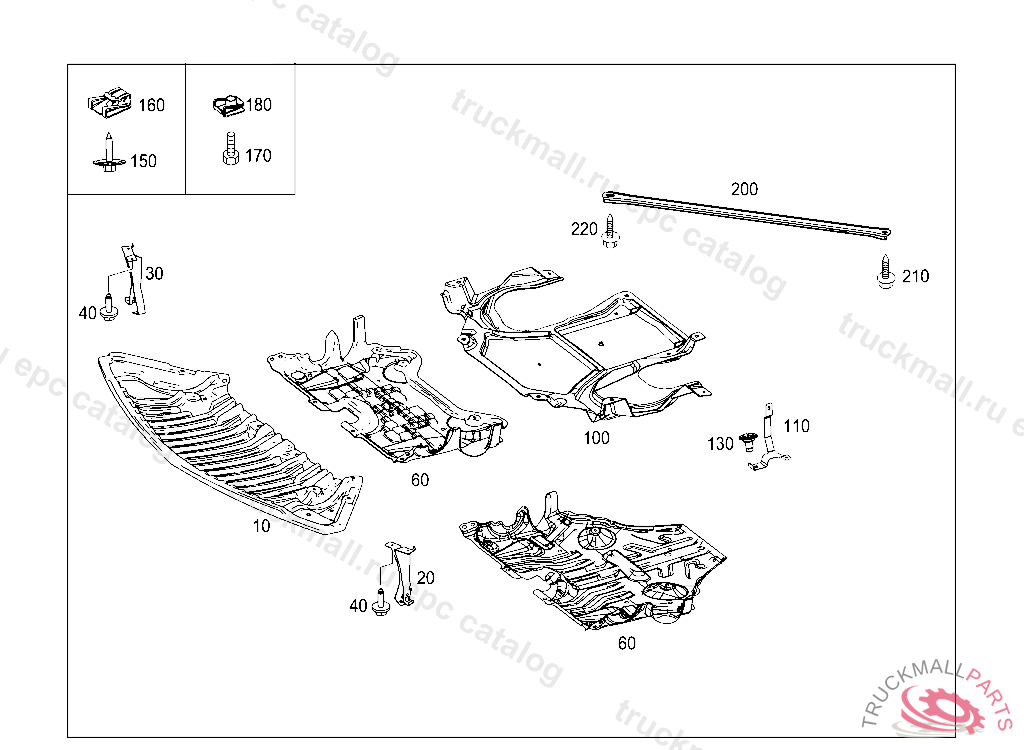

52 CHASSIS SHEET METAL / AIR INTAKE - 030 ENGINE COMPARTMENT PANELLING, GASOLINE VEHICLES

Поз.
Артикул
Описание
20
A2075240740
BRACKET LEFT
30
A2075240840
BRACKET RIGHT
40
A0019908000
BOLT LOWER SUPPORT M6X19
60
A2125240601
UNDERBODY PROTECTION CENTRAL
110
A2045242540
BRACKET LEFT, F 84733620120119
130
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
150
A0019906036
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
160
A0019949845
LOCK. CLIP-TYPE NUT
170
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
180
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
200
A2075240047
STRUT BETWEEN LONGITUDINAL MEMBER ANDFRAME-TYPE INTEGRAL SUPPORT
210
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
220
A0019904003
BOLT STRUT TO FRAME-TYPE INTEGRAL SUPPORT
