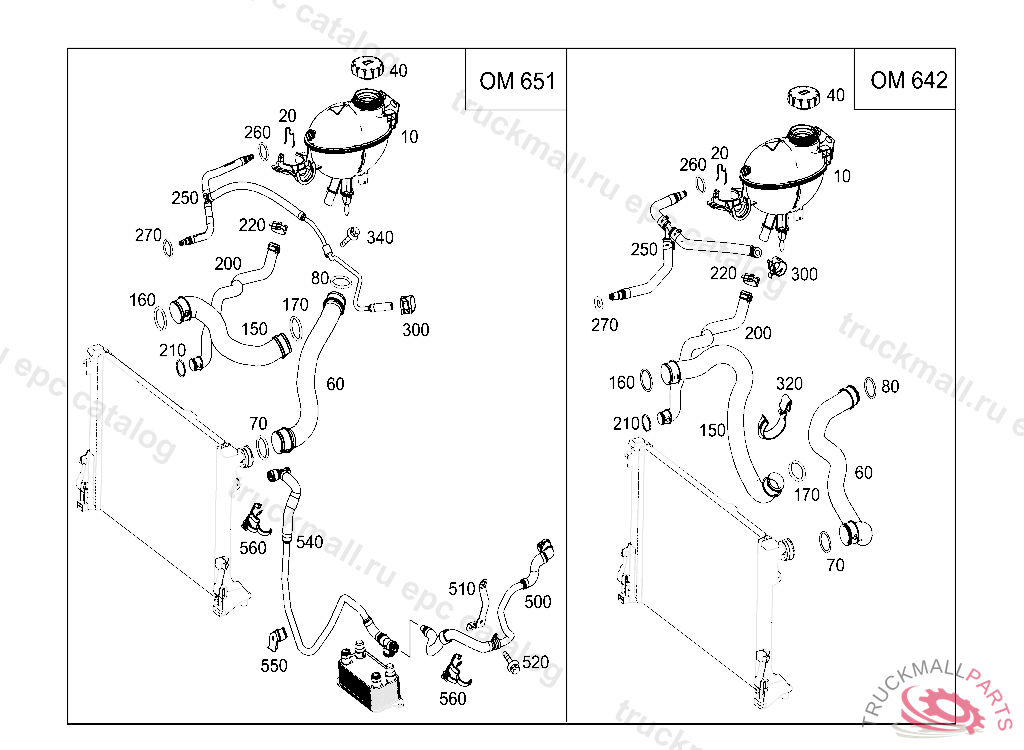

Поз.
Артикул
Описание
10
EXPANSION RESERVOIR
20
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
40
CLOSING COVER
60
HOSE LEFT AT RADIATOR
70
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
70
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
80
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
150
COOLANT HOSE TO RIGHT RADIATOR
150
COOLANT HOSE FROM RIGHT COOLER TO ENGINE
160
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
160
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
170
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
200
COOLANT FILLING HOSE TO RIGHT RADIATOR
210
SEALING RING FILLING HOSE TO RADIATOR 21,35MM
220
CLAMP25 MM
250
VENTILATION LINE , G 20120902
250
VENT LINE , G 20130731
250
VENT LINE , A 20130731 G 20130731
260
O-RING VENT LINE TO RADIATOR 6,07MMX 1,78 MM
270
O-RING VENT LINE TO RADIATOR 6,07MMX 1,78 MM
300
CLAMP14 MM
340
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
500
COOLANT HOSE FROM OIL COOLER TO WATER PUMP
510
BRACKET COOLANT HOSE TO AIR CONDITIONER COMPRESSOR
520
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
540
COOLANT PIPE OIL COOLER TO RADIATOR
550
BRACKET COOLING PIPE TO RADIATOR
560
BRACKET HOSE ATTACHMENT
