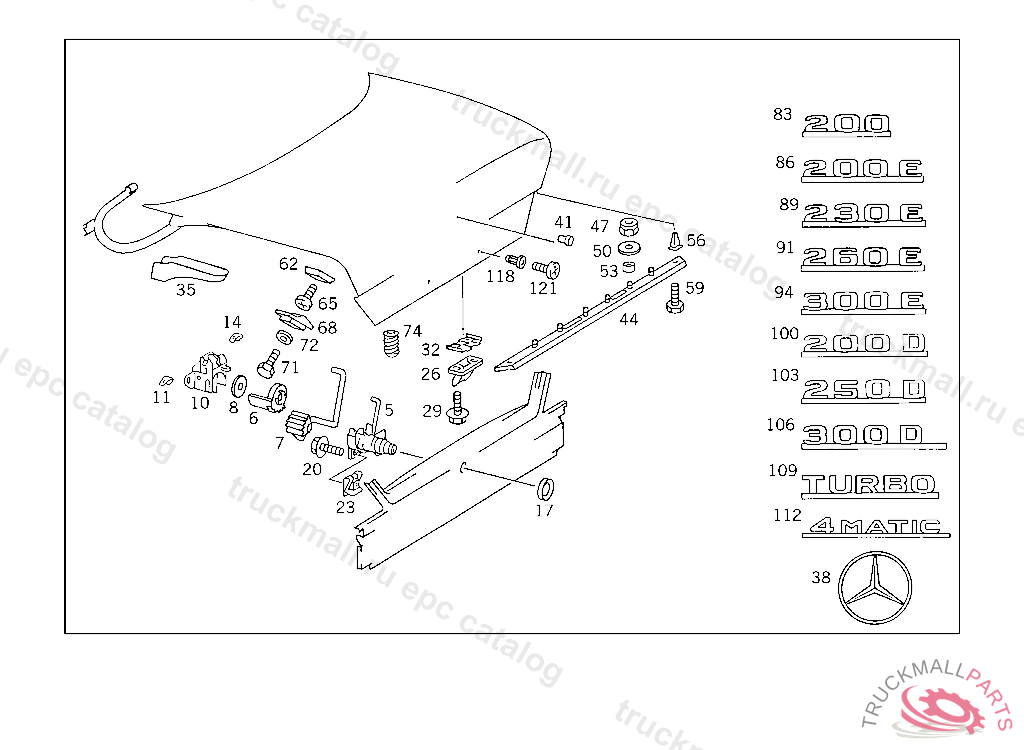

Поз.
Артикул
Описание
5
TUMBLER LESS KEY, USED WITH CENTRAL LOCKING MECHANISM, STATE LOCK NUMBER WHEN ORDERING
5
TUMBLER WORKSHOP VERSION WITH KEY, ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM)
5
LOCK , Replaced By: A1247500191
5
TUMBLER , Replaced By: A1247501591
6
PUSH BUTTON BASETO 124 750 01 91
7
ROD REAR LID ELEMENT
8
WASHERTO 124 750 01 91
10
FASTENER
11
GUIDE LEFT
14
GUIDE RIGHT
17
SEAL BETWEEN LOCK AND REAR LID
20
SCREW LEVER TO ENGINE CONTROL SHAFT
20
SCREW , Replaced By: N910105006023
23
NUT RETAINER LEFT AND RIGHT BUMPER FACE BARS TO CENTRAL PART
26
BRACKET
26
BRACKET , Replaced By: A1247500432
29
SCREW , Replaced By: N910105006002
29
HEXAGON HEAD BOLT
32
PLATE REAR LID STIFFENING
35
COVERING HINGE LEVER CONSOLE
35
COVERING , Replaced By: A1247580129
38
MERCEDES STAR
41
GROMMET MERCEDES STAR TO REAR LID
44
HANDLE REAR LID
44
HANDLE , Replaced By: A1247500193
47
NUT TWO-WAY VALVE TO BRACKET
50
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
50
WASHER , Replaced By: N009021005205
53
RUBBER RING , Replaced By: A0009873841
53
RUBBER RING SIGNAL LAMP TO ROOF
56
TREENAIL BRACKET TO FIRE WALL
56
TREENAIL , Replaced By: A6399980185
56
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
59
SCREW , Replaced By: A1249900710
59
SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 474578, Replaced By: A1249900810
59
SCREW HANDLE LEDGE TO REAR LID
62
STOP REAR LID
65
SCREW , Replaced By: N000000001146
65
SCREW CLAMP MOUNTING M 6X16
68
STOP REAR FENDER
71
SCREW , Replaced By: N304017006034
71
SCREW COVER PLATE TO COVER PLATE M 6 X 10
72
WASHER COMPRESSED AIR LINE TO BRACKET
72
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
74
RUBBER BUFFER REAR LID STIFFENING
106
TYPE DESIGNATION ON REAR LID,ADHESIVE "300D"
106
TYPE DESIGNATION , Replaced By: A1248171715
118
NUT REAR LICENSE PLATE
121
SCREW HOOK TO BRACKET
